AMPLIFIERS / 2-Channel Hookup

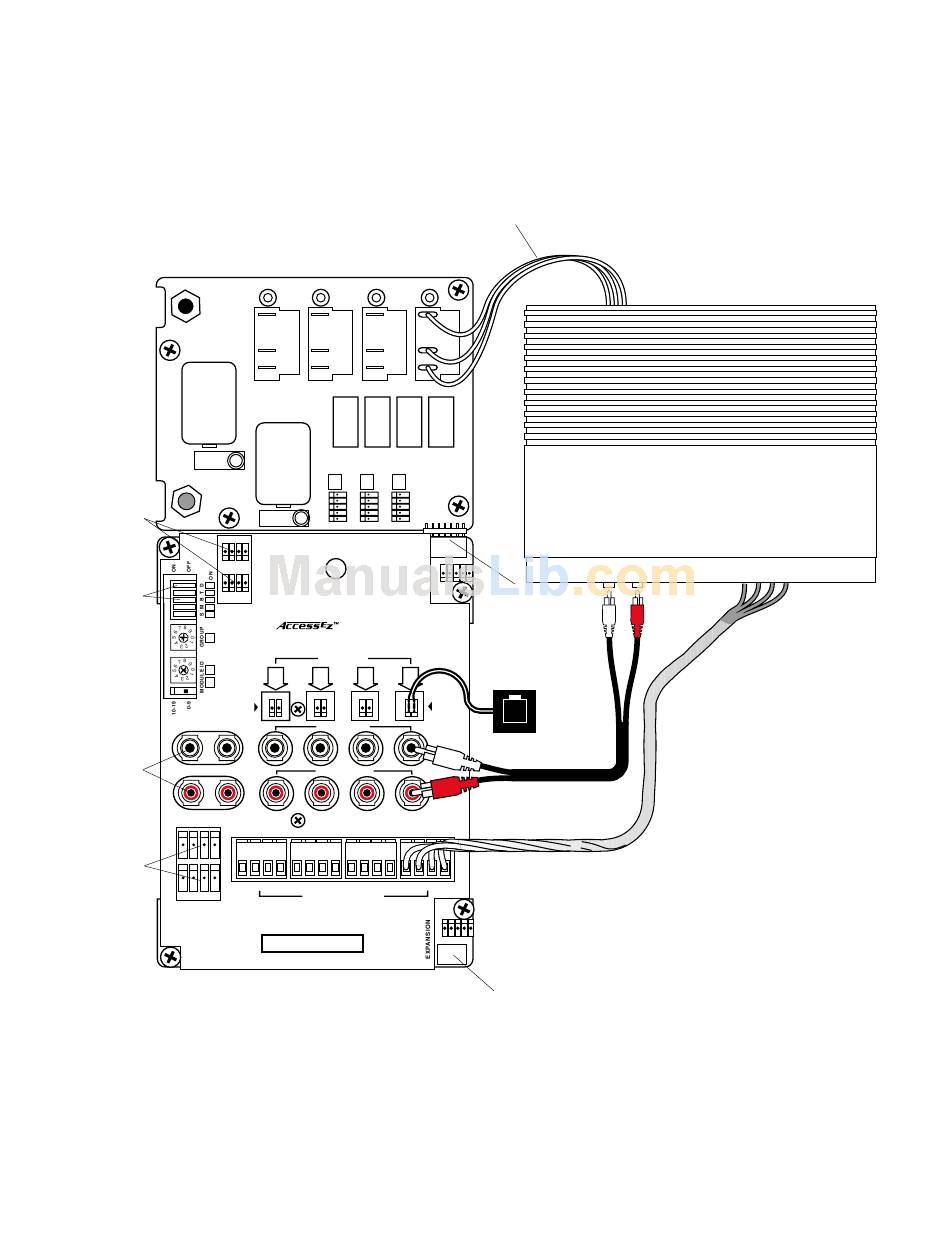

This drawing shows the basic connections for a 2-channel amplifier. See Appendix A for other system related
connections such as System Bus, DC distribution, or Low-Level and High-Level Bus.
System Bus
Connections
Settings for
Bypass &
Amp Turn On
Delay
Address
Settings
AMP IN BUS
Low Level Bus
Connections
(IN & OUT)
High-Level Bus
Connections
SPEAKER
Amp Bypass Note:
This amp could not be connected in position #4 as shown
if this were the last module in an Amplifier Product
Group to be bypassed.
ASD
48
Phone: 859-233-4599 Fax: 859-233-4510
916X DC Power Adapter
DISCONNECT BATTERY
CAUTION!
BEFORE SERVICING.
1 2
GND GND
BAT–
TURN TURN
ON ON
BAT BAT
PUSH
TO RESET
BAT+
3 2
PUSH
TO RESET
DC EXPANSION
POWER
ASD
SYSTEM
BUS
Model 942
Amplifier Selector
SOURCES
1 2 3
PSB
LEFT AUDIO
RIGHT AUDIO
( L+ L– R+ R– )
SPEAKER OUTPUT
BUS
FRONT, REAR, SUB, ETC:
Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Amp (position. #4)
DC Connections
Switched + (Blue)
Battery (Yellow)
Ground (Black)
916X
3 4
GND GND
TURN TURN
ON ON
BAT BAT
1
701-1086
916X DC
Expander
DC
EXPANSION Connection
Optional 994/995
Product Select
Button
4
S
PSB
Amp Input Pos. #4
Amp Output Pos. #4
Audio Signal
Expansion Port
Hookup drawings and FAQ http://www.audioauthority.com
2 Channel Amplifier
Preamp Input Amp Output
Left Right
Left Right
+ – + –
