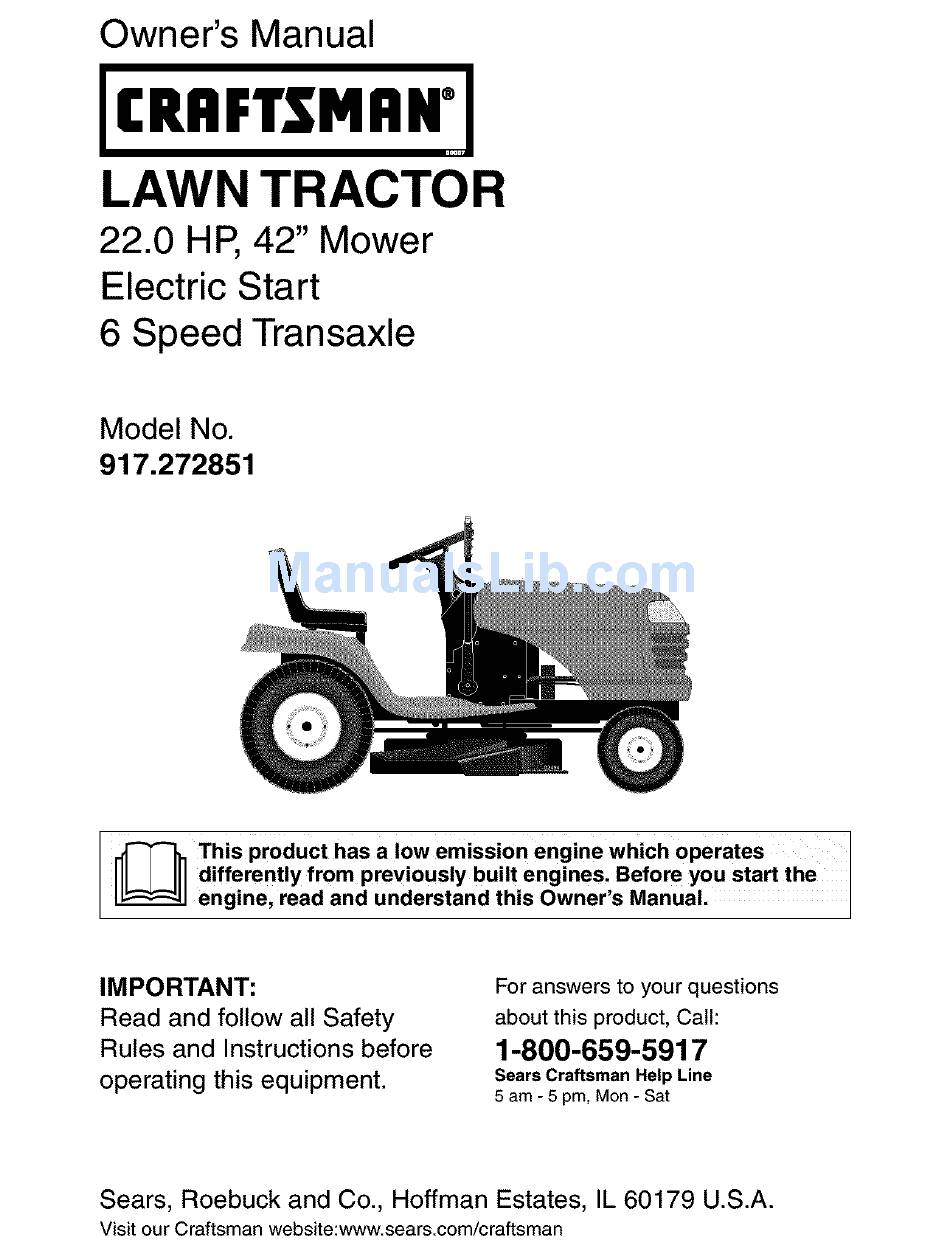

Owner's Manual
I(.nFTSMnN°l
LAWN TRACTOR
22.0 HP, 42" Mower
Electric Start
6 Speed Transaxle
Model No.
917.272851
[_
This product has a low emission engine which operates
]
differently
from previously
built engines. Before you start the
engine, read and understand
this Owner's Manual.
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman
Help Line
5 am - 5 pm, Mon- Sat
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website:www.sears.com/craftsman
