Craftsman 917.272243 Owner's Manual
  1. Manuals
  2. Brands
  3. Craftsman Manuals
  4. Lawn Mower
  5. 917.272243
  6. Owner's manual
Craftsman 917.272243 Owner's Manual

Craftsman 917.272243 Owner's Manual

20.0 hp electric start 48" mower automatic lawn tractor
Hide thumbs

Advertisement

Quick Links

Download this manual
Enlarged version

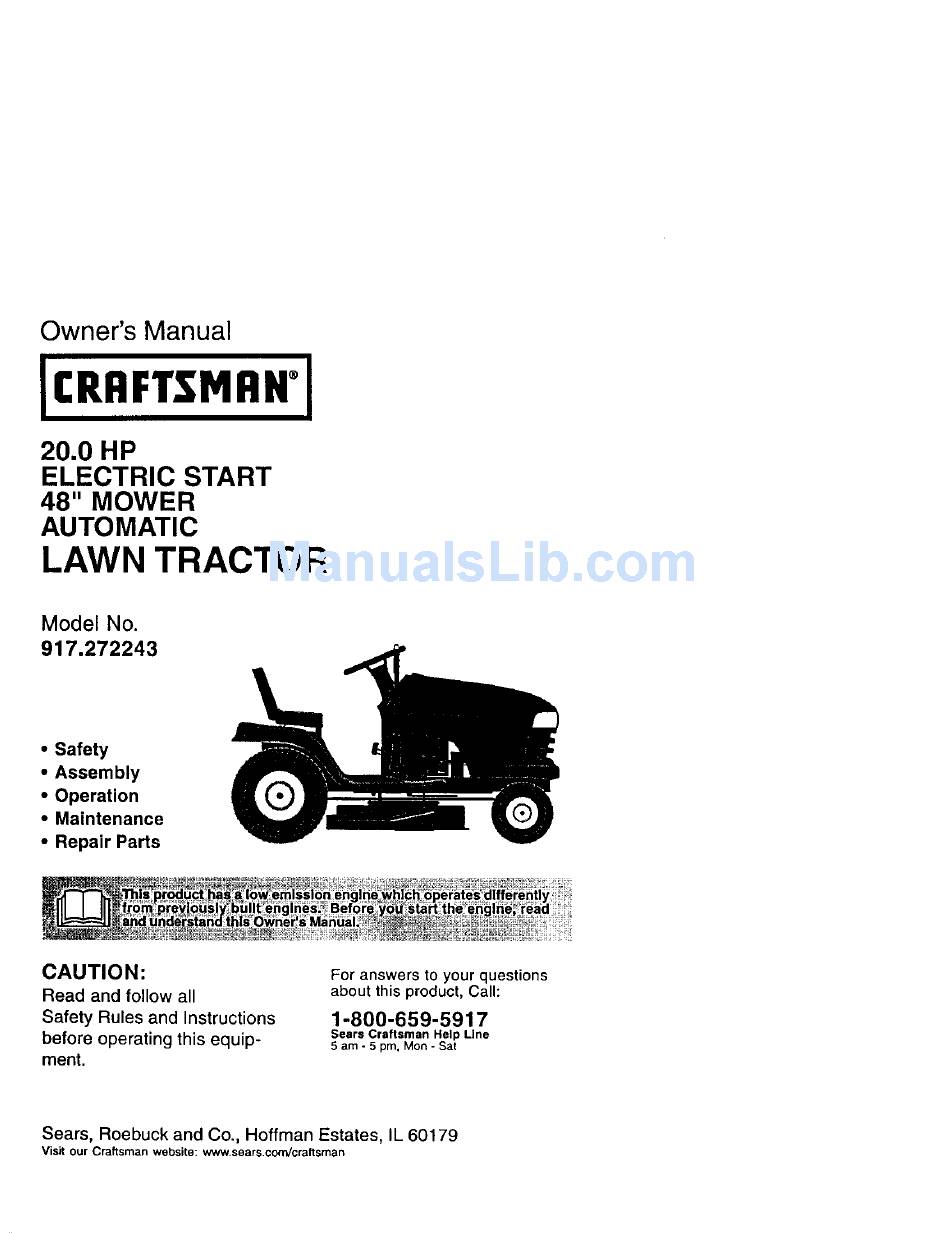

Owner's Manual
