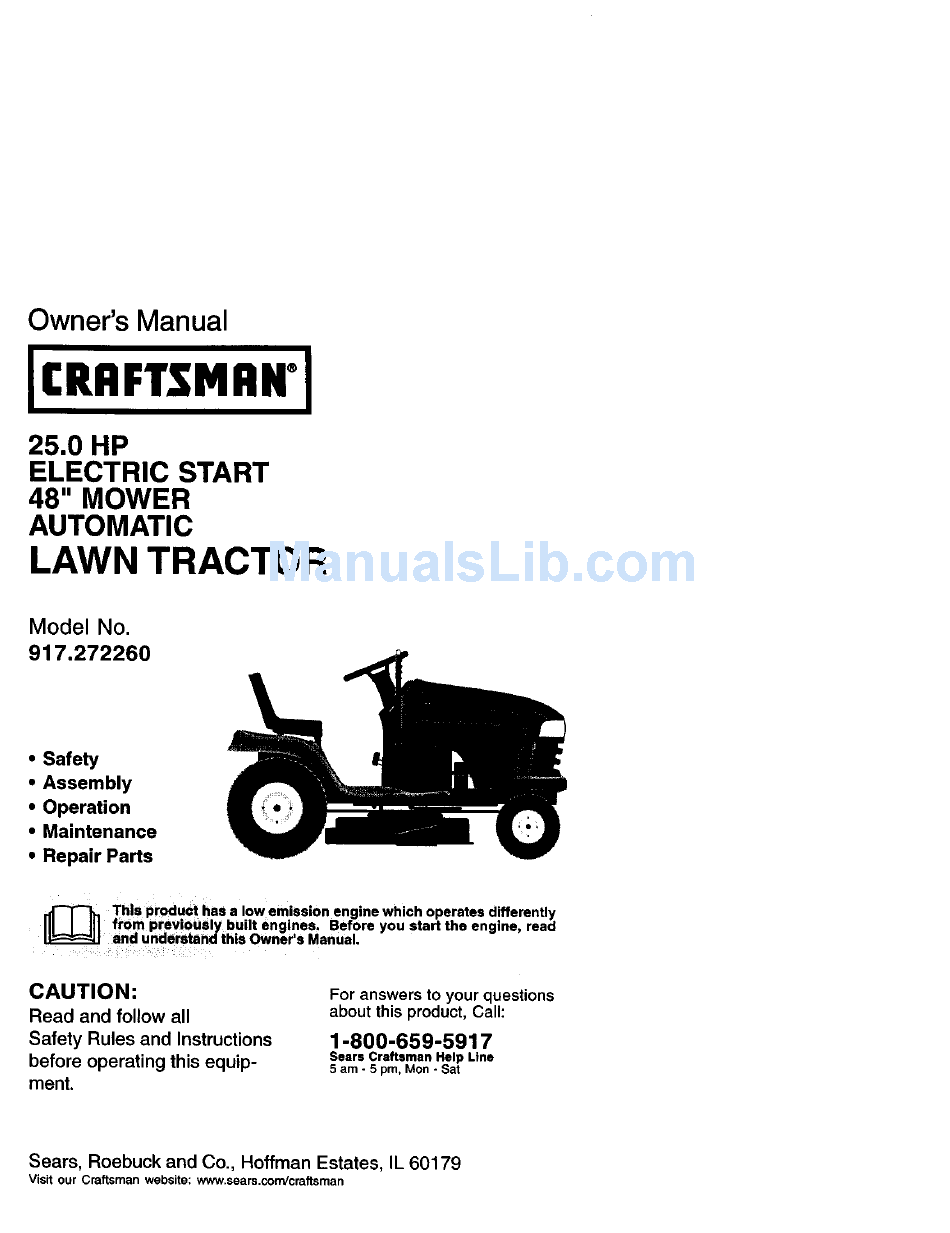

Owner's Manual
ICRRFTSMRN'I
25.0 HP
ELECTRIC START
48" MOWER
AUTOMATIC
LAWN TRACTOR
Model No.
917.272260
• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts
,_
This product has a low emission engine which operates differently
III I III
fi'om previously
built engines.
Before you start the engine
read
and understandthis Owner's Manual,
! i
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equip-
ment.
For answers
to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman
Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman
Estates, IL 60179
Visit our Craftsman
website: www.sears.com/craftsman
