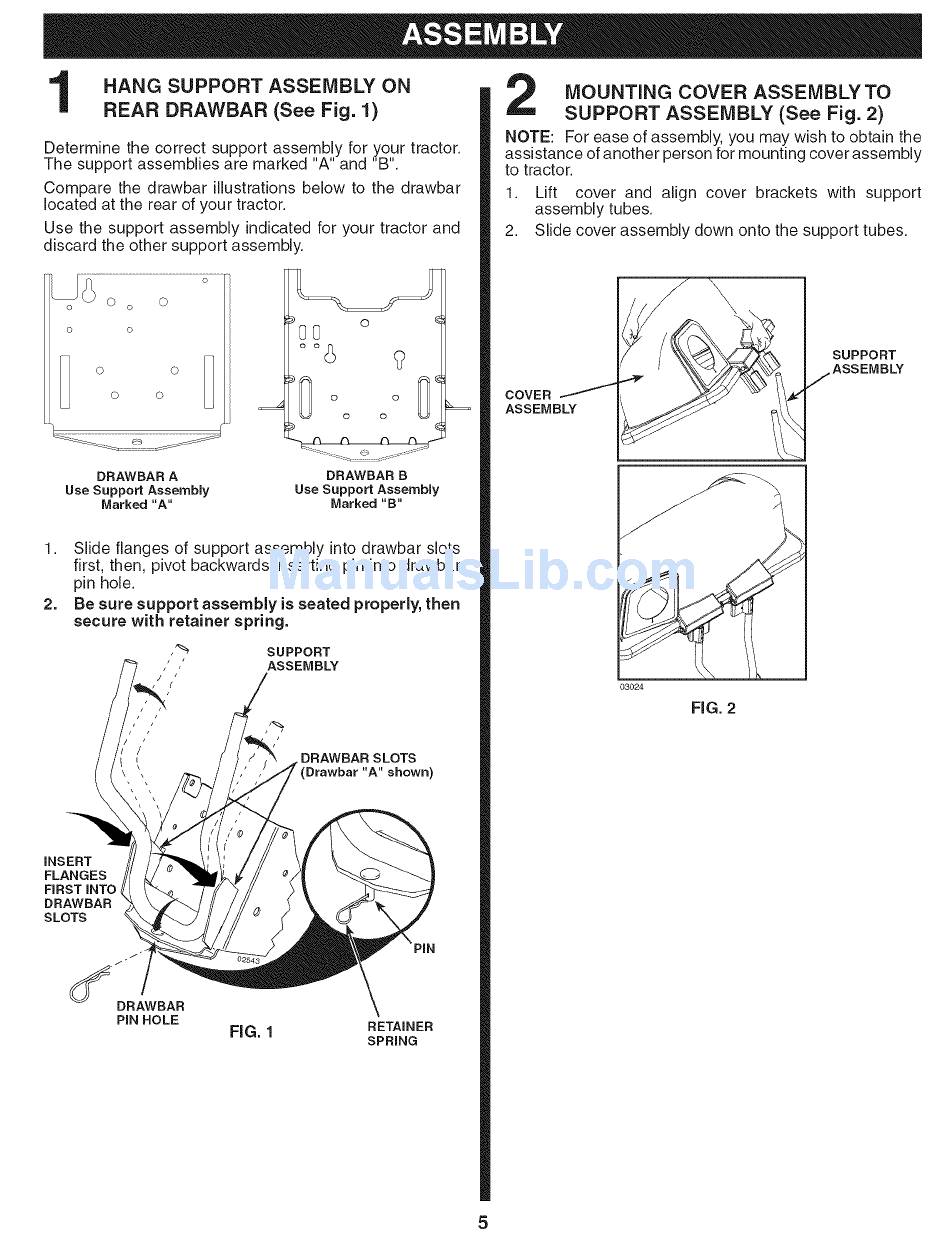

Craftsman 917.248950 Owner's Manual page 5

1
HANG SUPPORT ASSEMBLY ON
REAR DRAWBAR (See Fig. 1)
Determine the correct support assembly for your tractor.
The support assemblies are marked "A" and "B".
Compare the drawbar illustrations below to the drawbar
located at the rear of your tractor.
Use the support assembly indicated for your tractor and
discard the other support assembly.
o o
0 0
0 0
DRAWBAR A
Use Support Assembly
Marked "A"
© ©
) © o
DRAWBAR B
Use Support Assembly
Marked "B"
L
1. Slide flanges of support assembly into drawbar slots
first, then, pivot backwards inserting pin into drawbar
pin hole.
2. Be sure support assembly is seated properly, then
secure with retainer spring.
,_' SUPPORT
ASSEMBLY
DRAWBAR SLOTS
Drawbar "A" shown)
INSERT
FLANGES
FIRSTINTO_
DRAWBAR
SLOTS
FiG. 1
RETAINER
SPRING
MOUNTING COVER ASSEMBLY TO
SUPPORT ASSEMBLY (See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting cover assembly
to tractor.
1. Lift cover and align cover brackets with support
assembly tubes.
2. Slide cover assembly down onto the support tubes.
\
COVER
ASSEMBLY
SUPPORT
ASSEMBLY
03024
FIG. 2
5
