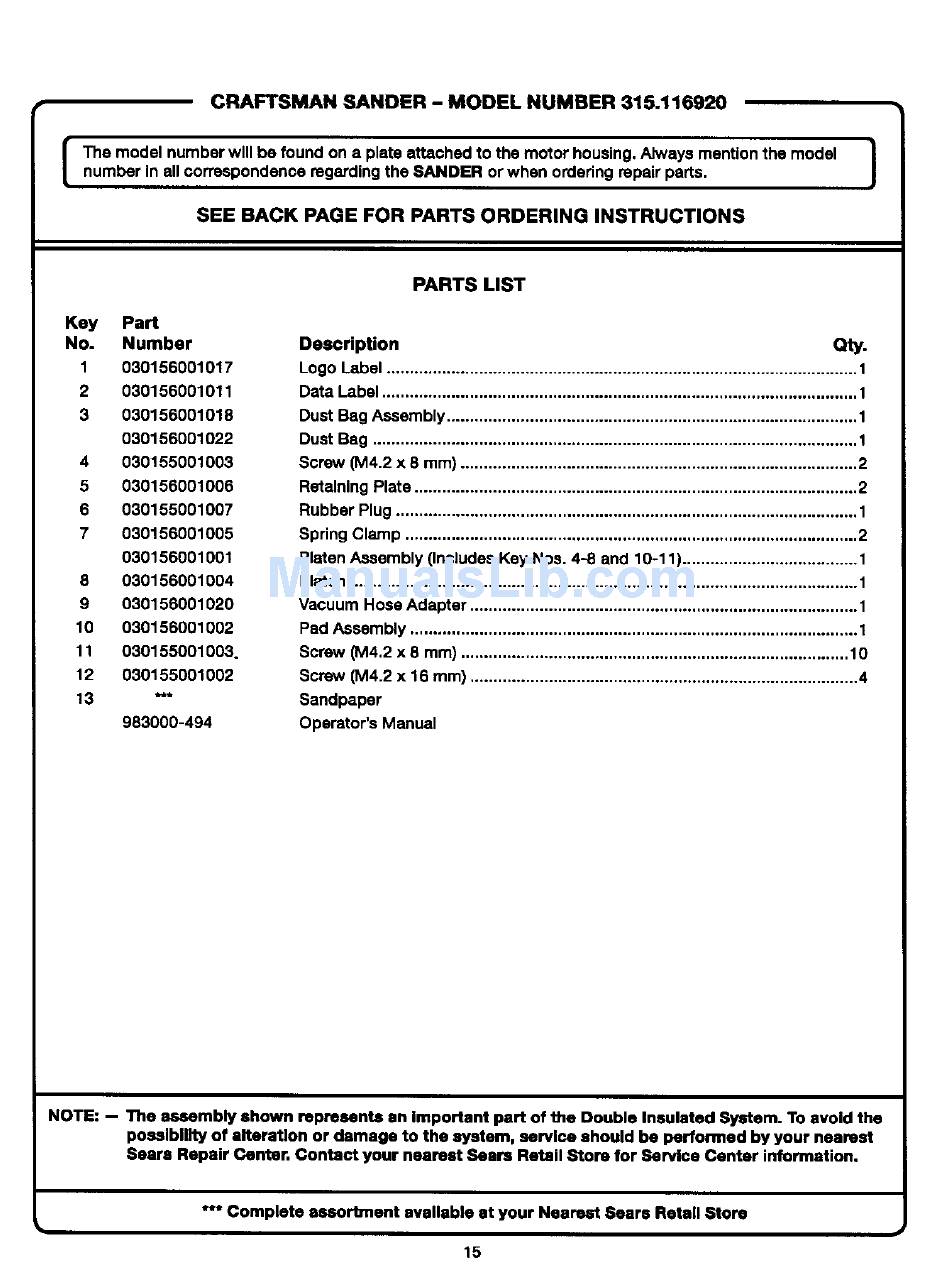

CRAFTSMAN SANDER - MODEL NUMBER 315.116920
The model number will be found on a plate attached to the motor housing. Always mention the model
number In all correspondence regarding the SANDER or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
I
Key Part
No. Number
1 030156001017
2 030156001011
3 030156001018
030156001022
4 030155001003
5 030156001006
6 030155001007
7 030156001005
030156001001
8 030156001004
9 030156001020
10 030156001002
11 030155001003.
12 030155001002
13 _*
983000-494
PARTS LIST
Description Qty.
Logo Label ...................................................................................................... 1
Data Label ....................................................................................................... 1
Dust Bag Assembly ......................................................................................... 1
Dust Bag ......................................................................................................... 1
Screw (M4.2 x 8 rnm) ...................................................................................... 2
Ratalnlng Plate ................................................................................................ 2
Rubber Plug .................................................................................................... 1
Spring Clamp .................................................................................................. 2
Platen Assembly (Includes Key Nos. 4-8 and 10-11) ...................................... 1
Platen .............................................................................................................. 1
Vacuum Hose Adapter .................................................................................... 1
Pad Assembly ................................................................................................. 1
Screw (M4,2 x 8 ram) .................................................................................... 10
Screw 0VI4,2 x 16 mm) .................................................................................... 4
Sandpaper
Operator's Manual
NOTE: -- The assembly shown represents an Important part of 1he Double Insulated System. To avoid the
poseiblllty of aReratlon or damage to the system, service should be performed by your nearest
Sears Repair Center. Contact your nearest Sears Retail Store for Service Center information.
*** Complete assortment available at your Nearest 8eare Retail Store
15
