Owner's Manual
II:RRFTSMRN I

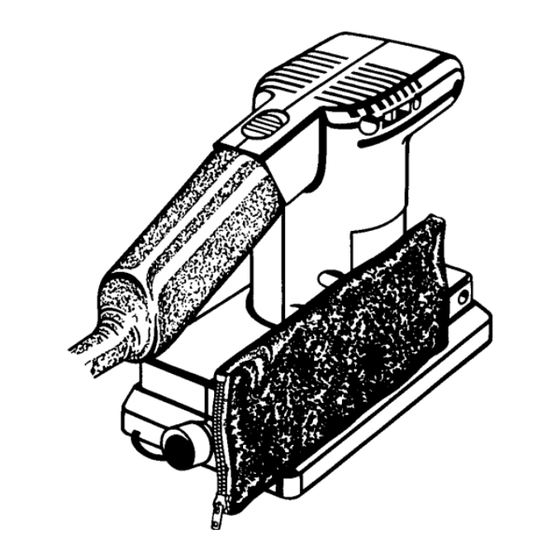

Dustless Dual Motion Sander
Double Insulated
Model No.
315.116164
Save this manual
for
future
reference
_,
CAUTION:
Read and
follow all Safety Rules and
Operating Instructions before
first use of this product.
Customer
Help Line: 1-800-932-3188
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
972000-854
8-01
• Safety
• Features
• Operation
• Maintenance
• Parts List
®
Advertisement
Related Manuals for Craftsman 315.116164
Summary of Contents for Craftsman 315.116164
- Page 1 Safety Rules and • Features Operating Instructions before • Operation first use of this product. • Maintenance • Parts List Customer Help Line: 1-800-932-3188 ® Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit the Craftsman web page: www.sears.com/craftsman 972000-854 8-01...
- Page 2 Exploded View and Repair Parts List ...................... 12-13 • Parts Ordering / Service ..........................FULL ONE YEAR WARRANTY ON CRAFTSMAN SANDER I:RRFTSHRN If this Sander fails to give complete satisfaction within one year from the date of purchase, RE- TURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free of charge.
- Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
- Page 4 Do not change the plug in any way. • WHEN SERVICING USE ONLY IDENTICAL • OUTDOOR USE EXTENSION CORDS. When tool CRAFTSMAN REPLACEMENT PARTS. is used outdoors, use only extension cords suitable for use outdoors. Outdoor approved cords are SAVE THESE INSTRUCTIONS.
- Page 5 WARNING: Some dust created by power • arsenic and chromium from chemically- treated lumber. sanding, sawing, grinding, drilling, and other construction activities contains chemicals known Your risk from these exposures varies, depending to cause cancer, birth defects or other on how often you do this type of work. To reduce reproductive harm.
- Page 6 ELECTRICAL CONNECTION KNOW YOUR SANDER See Figure 1. Your sander has a precision built electric motor. It should be connected to a power supply that is 120 Before attempting to use your sander, familiarize volts, 60 Hz, AC only (normal household current). yourself with all operating features and safety Do not operate this tool on direct current (DC).
- Page 7 INSTALLING SANDPAPER • Wrap sandpaper around cushion. Rotate lever on the opposite end of your sander out and lift up; See Figures 2 and 3. insert loose end of sandpaper under the paper The cushion on your sander gives you the option of clamp;...
- Page 8 REMOVING SANDPAPER BEFORE STORAGE Do not store your sander with pressure sensitive adhesive sandpaper installed. Heat generated from sanding causes the pressure sensitive adhesive to flow and form a tight bond between the cushion and sandpaper. Removing the sandpaper soon after you have finished a sanding operation avoids letting the adhesive set up.
- Page 9 ATrACHING DUST BAG REMOVING DUST SKIRT See Figure 7. Your tool comes packed with the dust skirt installed. However, if desired, your sander can be operated without the dust skirt. • Unplug your sander. DUST WARNING: Failure to unplug your sander could EXHAUSTHOLE result in accidental starting causing possible (FOR DUSTBAG)
- Page 10 Clamp or otherwise secure the work to prevent it from PREPARING FOR OPERATION moving under your sander. WARNING: Do not wear loose clothing or jewelry _k, WARNING: Unsecured work could be thrown when operating sander. They could get caught in towards the operator causing injury.
- Page 11 EXTENSION CORDS WARNING: When servicing use only identical craftsman replacement parts, use of any other The use of any extension cord will cause some loss of parts may create a hazard or cause product power. To keep the loss to a minimum and to prevent damage.
- Page 12 CRAFTSMAN SANDER - MODEL NUMBER 315.116164 SEE NOTE "A" PAGE 13...
- Page 13 CRAFTSMAN SANDER - MODEL NO. 315.116164 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your SANDER or when ordering repair parts. SEE BACK PAGE FOR PARTS ORDERING...
- Page 14 Get it fixed, at your home or ourst For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOME Anyt,me, day or night (1-800-469-4663) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts &...
