Page 1: Table Of Contents
Local [] Electro|ux Solutions Hotline important Safety instructions ..... 2 installation ..........(United States) 1-800-944-9044 Connecting Water Supply ....(Canada) Door Removal instructions ....1-800-668-4606 Temperature Controls ......Resolve many service issues over the Automatic ice & Water Dispenser ..8 phone at your convenience! Replacing Air Filter ......
Page 2: Important Safety Instructions
electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Avoid connecting refrigerator to a Ground Fault Interruptor (GFI) circuit.
Page 3: Installation
This Use &Care Manual provides general operating LEVELING instructions foryour m odel. Use therefrigerator only as All four corners of your refrigerator must rest firmly on a solid floor. instructed inthisUse&Care Manual. Before starting the Your refrigerator is equipped with adjustable front rollers to help level refrigerator, follow these important first steps.
Page 4: Connecting Water Supply
To Connect Water Supply Line To Ice Maker Inlet Valve Disconnect refrigerator from electric power source. Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve. Unscrew plastic cap from water valve inlet and discard cap.
Page 5: Door Removal Instructions
Toots Necessary: DOOR REMOVAL iNSTRUCTiONS: if it is necessary to move the refrigerator through narrow doorways, follow these steps to remove the doors. Before you start: 1 Make sure the electrical power cord is unplugged from the wall outlet. 2 Remove any food from the door shelves. 3 Close the doors.
Page 6: Temperature Controls
ALLOWING COOLINGTIME BEFORE IFTEMPERATURE DISPLAYS FLASH... To ensure safe food storage, allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. if ever you see both temperature displays continously flashing, During this cooling period, you do not need to adjust the controls, it may indicate that the control system has detected a which are preset at the factory.
Page 7 Cooling System On/Off Button Alarm Reset Button Indicator Lights TURNING THE COOLING SYSTEM ON AND OFF You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel. To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and hold it for three seconds.
Page 8: Automatic Ice & Water Dispenser
AUTOMATIC iCE & WATER DISPENSER OPERATING iNSTRUCTiONS Oeeee e E_,_mol .._oi_ Cube Crush [ighf F,i_ _ ,_i lo_k EXTREME To freeze food at a faster rate to preserve freshness, push the Touch Pad O for 3-5 seconds to FREEZE activate this feature.
Page 9 AUTOMATIC ICE &WATER DISPENSER OPERATING iNSTRUCTiONS 0000 ® L_ht " • Features may vary according to model. Crush Press the Crush Touch Pad O to get crushed ice. A red indicator will appear above the Touch Pad. Press glass against ICE dispensing paddle O asTar up as possible to catch all ice.
Page 10 ICE PRODUCTION: WHAT TO EXPECT The ice maker and container are located in the top of the freezer compartment. After the refrigerator is installed properly How Much Ice Will a Side Mounted Ice Maker and has cooled for several hours, the ice maker can begin Produce...
Page 11 It is not necessary to turn the water supply off to change the filter. Solutions Hotline at 1-800-944-9044, or go to our Open freezer door and leave open until filter change is web site at www.frigidaire.com, it might be good to complete.
Page 12 Solutions Hotline at 1-800-944-9044, or go to our To change filter: web site at www.frigidaire.com, it might be good to It is not necessary to turn the water supply off to change the order some filter cartridges when you first install filter.
Page 13: Replacing Air Filter
Solutions Hotline at 1-800-944-9044, or go to our web 6 Press and hold the Filter Reset button for 3 seconds again site at www.frigidaire.com. It would be beneficial to order to turn off the filter status system. some cartridges when you first install your refrigerator.
Page 14: Normal Operating Sounds & Sights
UNDERSTANDING THE SOUNDSYOU MAY HEAR D. Automatic Ice Maker If your refrigerator is equipped with an automatic ice Your new high-efficiency refrigerator may make unfamiliar maker, you will hear ice cubes falling into the ice bin. sounds. These are all normal sounds and soon will become familiar to you.
Page 15: Care And Cleaning
Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts in a dishwasher.
Page 16: Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained...
Page 17: Before You Call
1=800=944=9044 ( United States) Visitourwebsiteat 1=800=668=4606 ( Canada) www.frigidaire.com. PROBLEM CAUSE CORRECTION RUNNING OF REFRIGERA • Freezer control is set to "OF" Compressor does not run. • Set freezer control. See Temperature Controls section. or "0". • Refrigerator is in defrost cycle.
Page 18 PROBLEM CAUSE CORRECTION TEMPERA TUllES ARE TOO WARM Freezer/Fresh Food Doors are opened too • Warm air enters the refrigerator whenever the door is temperature is too warm. frequently or too long. opened. Open the door less often. • See PROBLEM section OPENING/CLOSING Door is slightly open.
Page 19 CAUSE CORRECTION PROBLEM AUTOMATIC ICE MAKER (CONTINUED) Ice maker is not making enough ice. • Ice maker is producing less ice • Side mounted ice maker should produce 4 to 4.5 pounds than you expect. (approximately 4 quarts) of ice every 24 hours. A rear mounted ice maker should produce 3 to 4 pounds (approximately 3K2quarts) of ice every 24 hours.
Page 20 PROBLEM CAUSE CORRECTION WATER DISPENSER • Household water line valve is not Dispenser will not • Open household water line valve. See PROBLEM section ICE MAKER IS NOT MAKING ANY ICE. dispense water. open. • Freezer door is not closed. •...
Page 21: Features At A Glance
Features may vary according to model Freezer and Refrigerator SpiliSafeTM CAUTION: Controls g Shelf Do Not Remove ice Cream net Behind Filter Dairy ice Maker (Location varies Compartment by model) Fixed Dairy Door Bin Compartment Rack _rBin SpillSafe g Shelf _rBin Half )ecial item...

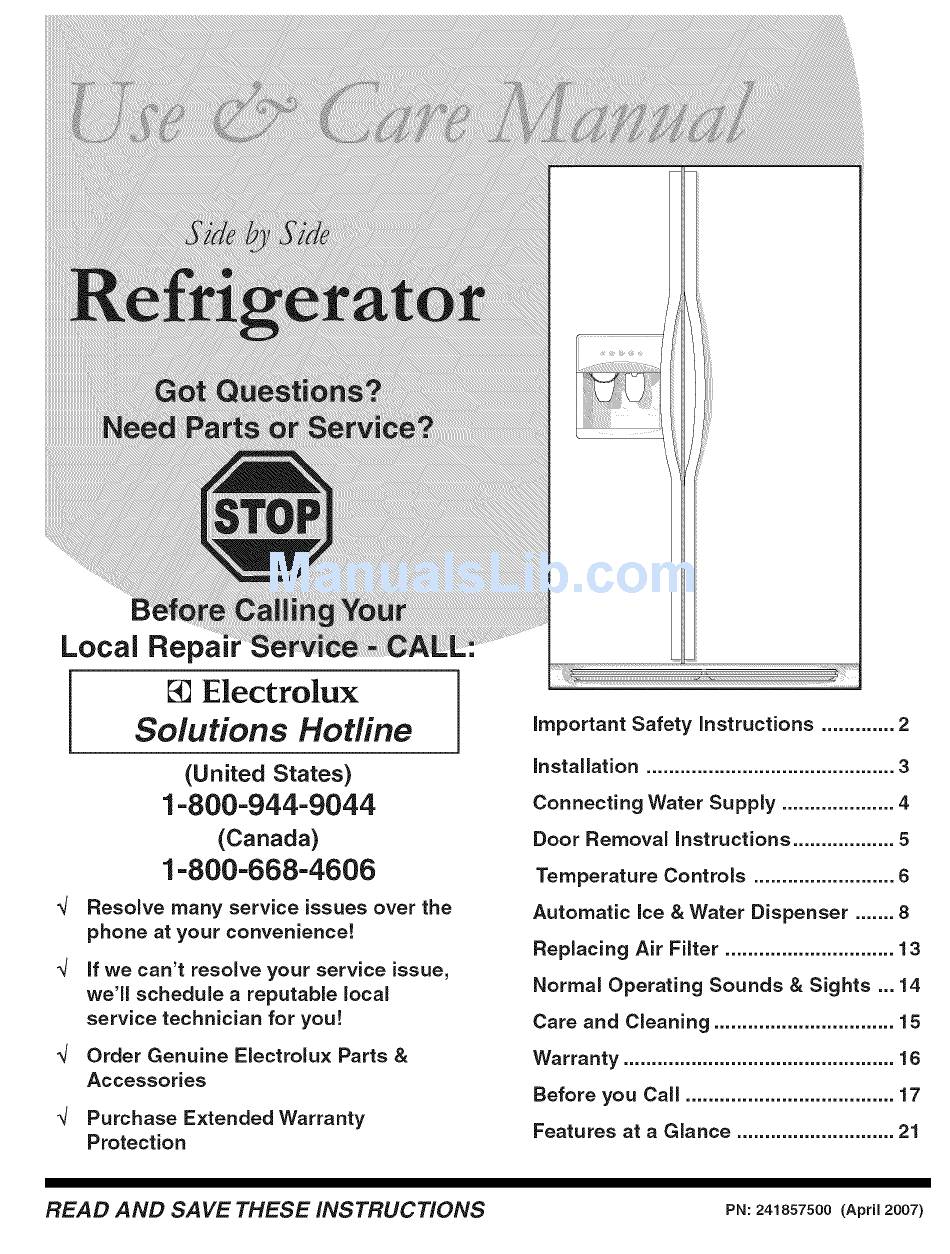

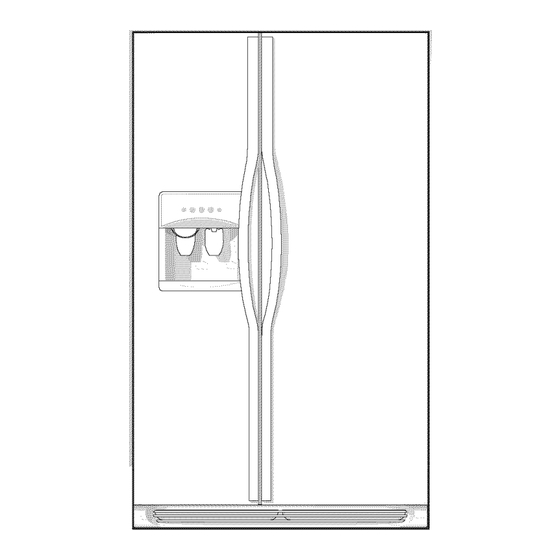

Frigidaire FSC23F7HB8 Use & Care Manual
