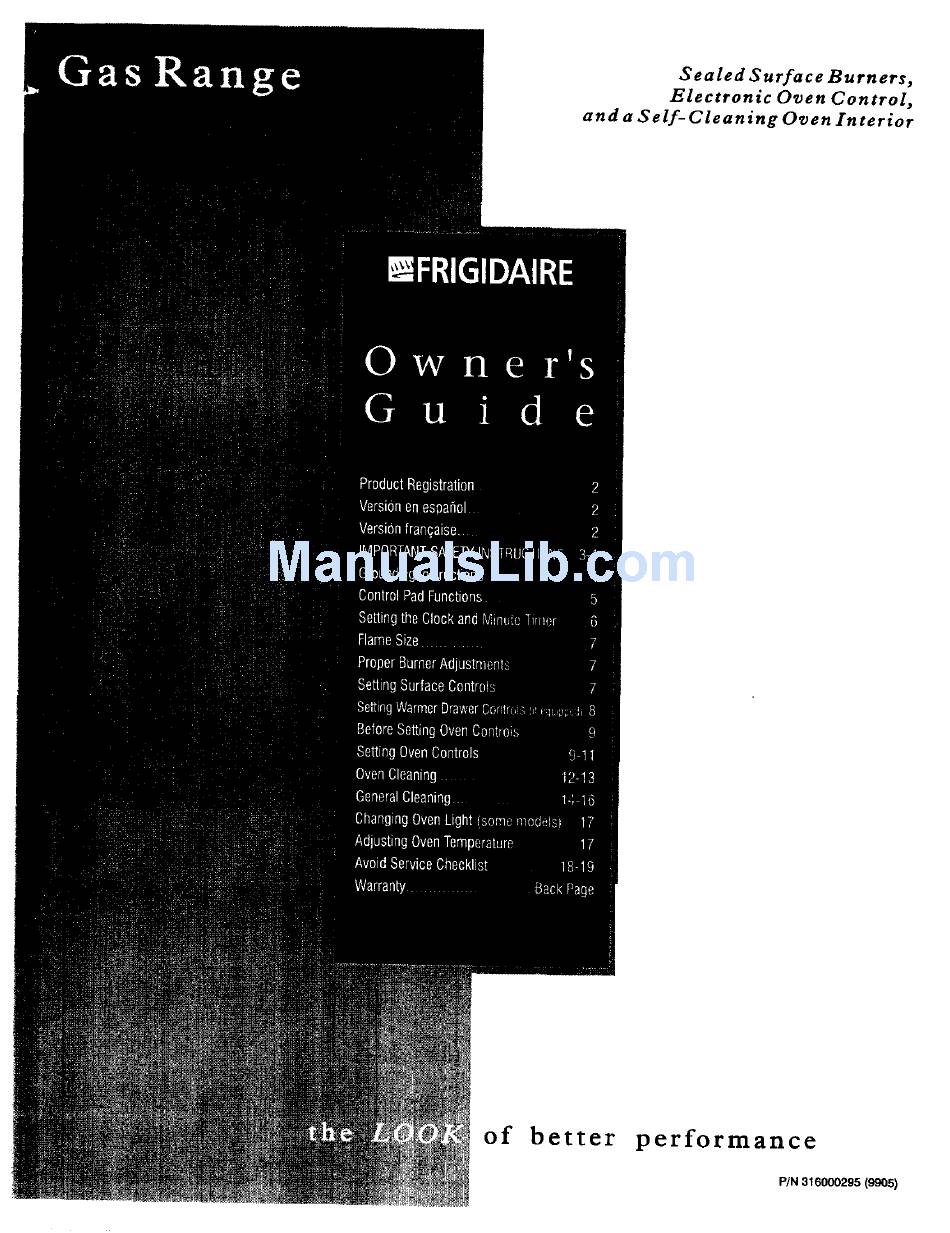

- Page 1 Sealed Surface Burners, Electronic Oven Control, a Self-Cleaning Oven Interior better performance P/N 316000295 (9905)
-
Page 2: Product Registration
& I'adresse indiqu_e ci-dessous. Exigez qu'on vous livre le N° de piece 316000295F. French Owner's Guides -OR- Spa nish Owner's Guides (please specify) Frigidaire Company P. O. Box 9061 Dublin, Ohio 43017-0961 If the information in this manual is not followed... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. This guide contains important safety symbols and instructions. Pleasepay attention to these symbols and follow all instructions given. Here is a brief explanation of the use of these symbols. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. - Page 4 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT INSTRUCTIONS FOR USING YOUR " KeepOvenVent DuctsUnobstructed. Theovenventislocated below the backguard. Touching the surfaces in this area when COOKTOP the oven is operating may cause severe burns. Also, do not place Use Proper Flame Size--Adjust flame size so it plastic or heat-sensitive items on or near the oven vent.
- Page 5 Control Pad Functions READ THE INSTRUCTIONS CAREFULLYBEFOREUSING THE OVEN. Forsatisfactory useof you r oven, become familiar with the various functions of the oven as described below. You r model will have one of the 2 controls shown. Refer to Figure 1 or Figure 2, depending on your model. The oven can be programmed to: •...
-
Page 6: To Set The Minute Timer
Setting the Clock and Minute Timer (if equipped) For a silent control panel (Figure 2 Only): When choosing a function, a beep will be heard each time a pad is pushed. If desired, the controls can be programmed for silent operation. Push and hold STOP TIME. -
Page 7: Flame Size
Flame Size For most cooking, start on the highest control setting and then turn to a lower one to complete the process. Use the chart below as a guide for determining proper flame size for various types of cooking. The size and type of utensil used Never extend the flame beyond the and the amount of food being cooked will influence the setting needed for outer edge of the utensil. - Page 8 Setting Warmer Drawer Arranging Warmer Drawer Rack Positions The rack can be used in 2 ways: Controls 0f equipped) • In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls or biscuits on top of the Use the warmer drawer to keep hot] rack and a casserole dish under).
-
Page 9: Before Setting Oven Controls
Before Setting Oven Arranging Oven Racks (Some models may have one rack.) ALWAYS ARRANGE OVEN RACKS WHEN Controls THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when using the oven. REMOVING & REPLACING OVEN Oven Vent Location ARRANGING OVEN RACKS WITH 5 RACKS... - Page 10 Setting Oven Controls To Set the Automatic Timer (Timed Bake Feature, Figure 2 Only) The BAKE TIME and STOP TIME controls operate the Timed Bake feature. The (continued) automatic timer will turn the oven on and off at the times you select in advance. The oven can be programmed to start immediately and shut off automatically...
- Page 11 Setting Oven Controls (continued) To Broil The broiler pan and its grid allow dripping grease to drain and be kept 1. Arrange oven rackwhile oven isstill cool. Position the rack as suggested in away from the high heat of the broiler. the chart below.
-
Page 12: Oven Cleaning
Oven Cleaning Self-Cleaning Oven During the self-cleaning A self-cleaning oven cleans itself with high temperatures (well above cooking cycle, the outside of the range can I temperatures) which eliminate soilcompletely or reduce it to a fine powdered become very hot to the touch. DO NOT I ash you can wipe away with a damp cloth. - Page 13 Oven Cleaning To Start the Self-Clean Cycle (Figure 1) The oven is programmed to run a 3 hour self-clean cycle. (continued) Be sure the oven door is closed. Turn Temperature Control Knob to CLEAN. Push _-_-_. If the door is left open, the "LOCK" indicator light will flash, but the lock motor and clean cycle will not start.
-
Page 14: General Cleaning
General Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and heavy soiling as soon as possible. Regular cleanings will reduce the effort required for major cleanings later. Surfaces How to Clean Aluminum... - Page 15 Turn the burner on to determine if it will light. If the burner does not light appliance to satisfactorily meet after cleaning, contact an authorized servicer. Do not service the sealed application needs must be made by an burner yourself. authorized Frigidaire Distributor Qualified Agency.
-
Page 16: To Remove And Replace Oven Door
To Remove and Replace Oven Door General Cleaning To Remove Oven Door: (continued) Open the door. Remove screws located on the inside of the oven door near the hinges A The door is heavy. For (one on each side.) safe, temporary storage, lay the door Closethedoorto thequarter-open position. -
Page 17: Changing Oven Light
Changing Oven Light Be sure the range is unplugged and all parts are COOL before replacing the oven light. Wear a leather-faced glove for protection against (some models) possible broken glass. To Change the Oven Light (some models) On some models, the oven light automatically turns on when the door is opened. -
Page 18: Avoid Service Checklist
Avoid Service Checklist Before you call for service, review this list. It may save you time and expense. The list includes common occurrencesthat are not the result of defective workmanship or materials in this appliance. This oven isequipped with a state of the art electronic oven controller. Among its many features isa full time oven circuit diagnostics system.The controller constantly monitors its internal circuitry aswell as several crucial oven circuitsto insure they are all operating correctly. - Page 19 Be sure the electronic oven controls are set correctly for the desired function, See Oven does not operate, Setting Oven Controls in this Owner's Guide or Entire Appliance Does Not Operate (see below). Be sum regulator gas valve is 'ON'. See installation instructions. Make sure electrical cord/plug is plugged tightly into outlet (electric ignition models Entire appliance does not operate.
- Page 20 Your appliance is warranted by Frigidaire Home Products, a division of White Consolidated Industries, Inc, We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by Frigidaire Home Products Consumer Services or an authorized Frigidaire servicer.
