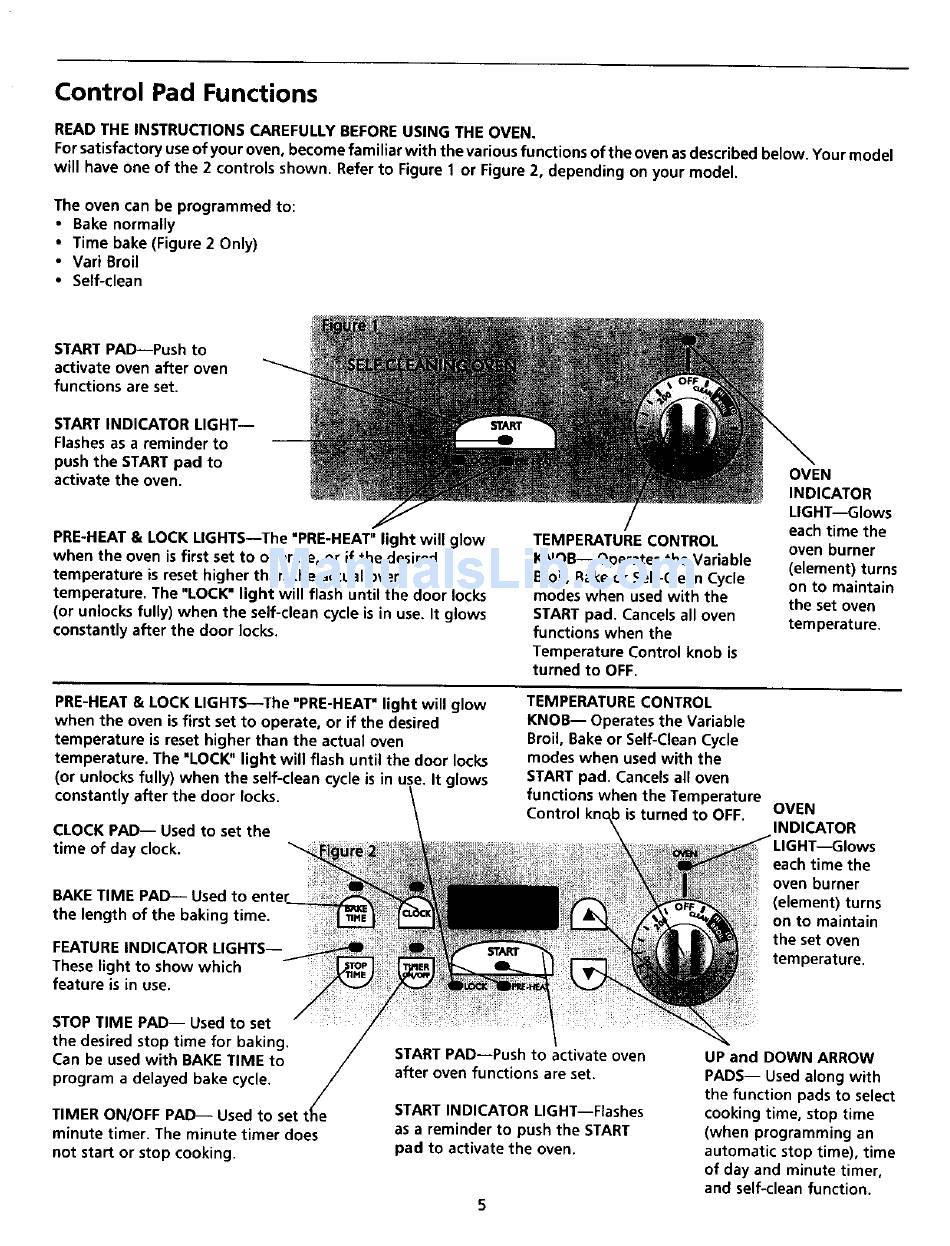

Control Pad Functions
READ THE INSTRUCTIONS CAREFULLYBEFOREUSING THE OVEN.
Forsatisfactory useof you r oven, become familiar with the various functions of the oven as described below. You r model
will have one of the 2 controls shown. Refer to Figure 1 or Figure 2, depending on your model.
The oven can be programmed to:
• Bake normally
• Time bake (Figure 2 Only)
• Vari Broil
• Self-clean
START PAD--Push to
activate oven after oven
functions are set.
START INDICATOR LIGHT--
Flashesas a reminderto
push the START pad to
activate the oven.
PRE-HEAT & LOCK LIGHTS--The "PRE-HEAT"light will glow
when the oven is first set to operate, or if the desired
temperature is reset higher than the actual oven
temperature. The "LOCK" light will flash until the door locks
(or unlocks fully) when the self-clean cycle is in use. It glows
constantly after the door locks,
TEMPERATURE CONTROL
KNOB-- Operates the Variable
Broil, Bake or Self-Clean Cycle
modes when used with the
START pad. Cancels all oven
functions when the
Temperature Control knob is
turned to OFF.
PRE-HEAT & LOCK LIGHTS--The "PRE-HEAT" light will glow
when the oven is first set to operate, or if the desired
temperature is reset higher than the actual oven
temperature. The "LOCK" light will flash until the door locks
(or unlocks fully) when the self-clean cycle is in use, It glows
constantly after the door locks.
CLOCK PAD-- Used to set the
time of day clock.
TEMPERATURE CONTROL
KNOB-- Operates the Variable
Broil, Bake or Self-Clean Cycle
modes when used with the
START pad. Cancels all oven
functions when the Temperature
is turned to OFF.
BAKE TIME PAD-- Used to entel
the length of the baking time.
FEATURE INDICATOR LIGHTS--
These light to show which
feature is in use.
STOP TIME PAD-- Used to set ....
the desired stop time for baking.
Can be used with BAKE TIME to
program a delayed bake cycle.
TIMER ON/OFF PAD-- Used to set '
minute timer. The minute timer does
not start or stop cooking.
START PAD--Push to activate oven
after oven functions are set.
START INDICATOR LIGHT--Flashes
as a reminder to push the START
pad to activate the oven.
5
OVEN
INDICATOR
LIGHT, lows
each time the
oven burner
(element) turns
on to maintain
the set oven
temperature.
OVEN
INDICATOR
each time the
oven burner
(element) turns
on to maintain
the set oven
temperature.
UP and DOWN ARROW
PADS-- Used along with
the function pads to select
cooking time, stop time
(when programming an
automatic stop time), time
of day and minute timer,
and self-clean function.
