Table of Contents

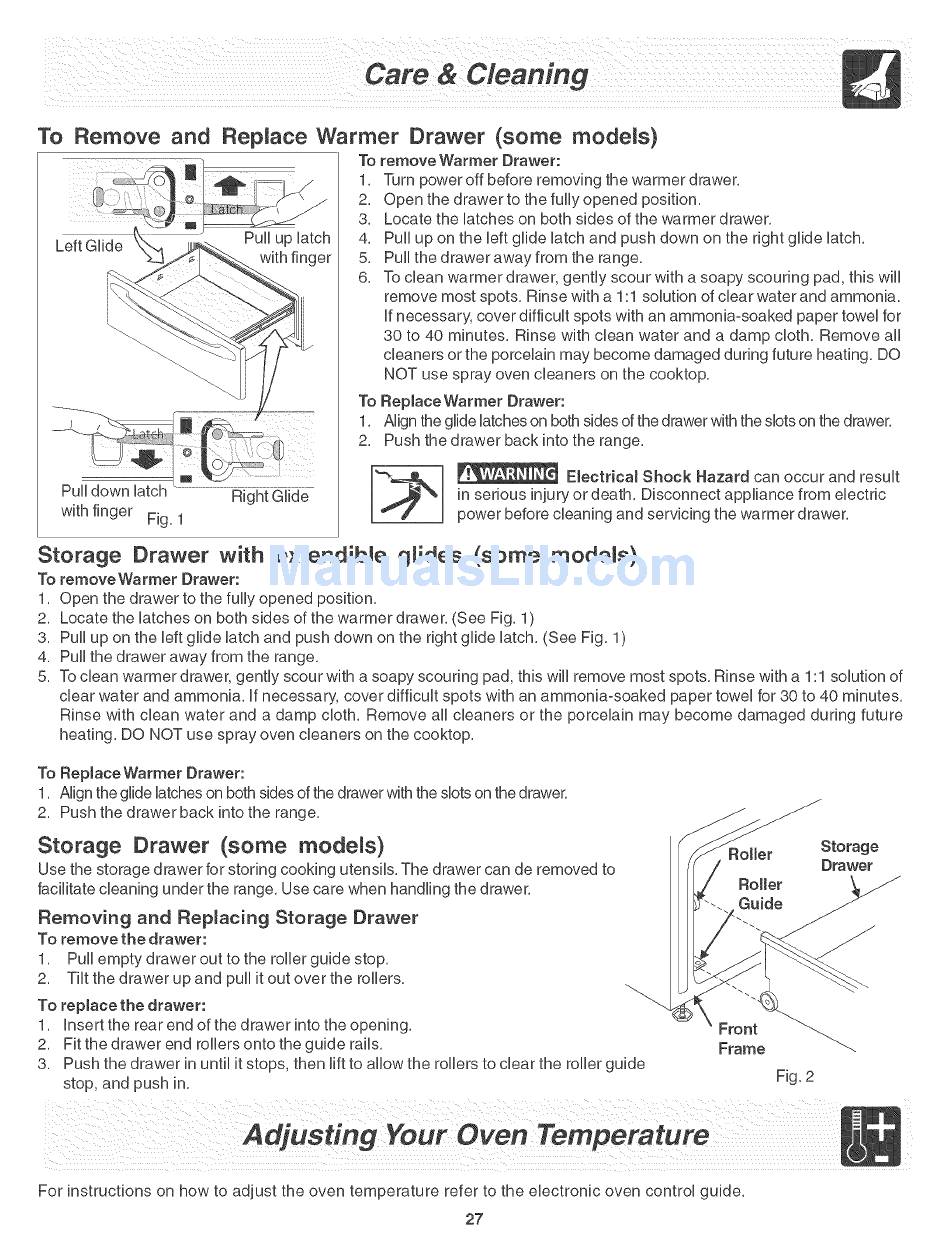

To Remove
and
Left GUide _
Replace Warmer
Drawer
(some
Pull up Uatch
with finger
Pull down Uatch.................................................................................................
with finger
Fig, 1
To remove Warmer Drawer:
1,
2,
3,
4,
5.
6,
models}
Turn power off before removing the warmer drawer,
Open the drawer to the fuUUy o pened position,
Locate the Uatches on both sides of the warmer drawer,
PuUU up on the Ueftguide Uatchand push down on the right guide Uatch,
PuUU t he drawer away from the range,
To dean warmer drawer, gentUy scour with a soapy scouring pad, this wiUU
remove most spots, Rinse with a 1:1 soUution of dear water and ammonia,
Ufnecessary, cover difficuUt spots with an ammonia-soaked
paper towel for
30 to 40 minutes, Rinse with clean water and a damp cloth, Remove all
cleaners or the porcelain may become damaged during future heating, DO
NOT use spray oven cleaners on the cooktop,
To Replace Warmer Drawer:
1, Align the glide latches on both sides of the drawer with the slots on the drawer,
2, Push the drawer back into the range,
'-_
_
EJectricaJ Shock Hazard can occur and result
in serious injury or death, Disconnect appliance from electric
power before cleaning and servicing the warmer drawer,
Storage
Drawer
with
extendible
glides
(some
models}
To remove Warmer Drawer:
1, Open the drawer to the fully opened position,
2, Locate the latches on both sides of the warmer drawer, (See Fig, 1)
3, Pull up on the left glide latch and push down on the right glide latch, (See Fig, 1)
4, Pull the drawer away from the range,
5, To clean warmer drawer, gently scour with a soapy scouring pad, this will remove most spots, Rinse with a 1:1 solution of
clear water and ammonia, If necessary, cover difficult spots with an ammonia-soaked
paper towel for 30 to 40 minutes,
Rinse with clean water and a damp cloth, Remove all cleaners or the porcelain may become damaged during future
heating, DO NOT use spray oven cleaners on the cooktop,
To ReplaceWarmer
Drawer:
1, Align the glide latches on both sides of the drawer with the slots on the drawer,
2, Push the drawer back into the range,
Storage
Drawer
(some
models}
Use the storage drawer for storing cooking utensils, The drawer can de removed to
facilitate cleaning under the range, Use care when handling the drawer,
Removing
and Replacing
Storage
Drawer
To remove the drawer:
1,
Pull empty drawer out to the roller guide stop,
2,
Tilt the drawer up and pull it out over the rollers,
To repJace the drawer:
1, Insert the rear end of the drawer into the opening,
2, Fit the drawer end rollers onto the guide rails,
3, Push the drawer in until it stops, then lift to allow the rollers to clear the roller guide
stop, and push in,
Rolter
Storage
Drawer
For instructions
on how to adjust the oven temperature
refer to the electronic oven control guide,
27
