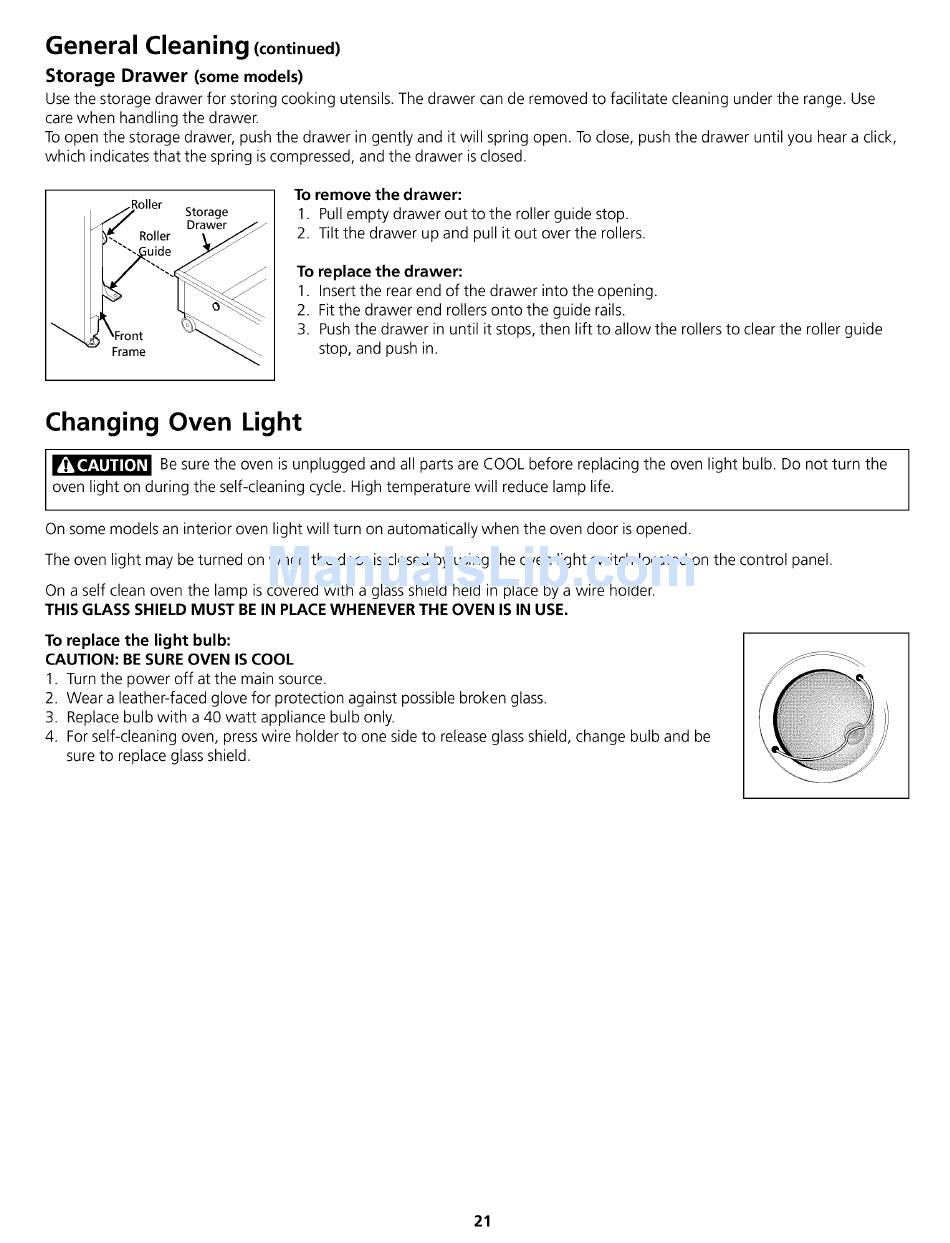

Changing Oven Light; Generalcleaning - Frigidaire FES300ASC Use & Care Manual

General Cleaning
(continued)
Storage Drawer (some models)
Use the storage drawer for storing cooking utensils. The drawer can de removed to facilitate cleaning under the range. Use
care when handling the drawer.
To open the storage drawer, push the drawer in gently and it will spring open. To close, push the drawer until you hear a click,
which indicates that the spring iscompressed, and the drawer is closed.
Frame
Storage
Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Pushthe drawer in until it stops, then lift to allow the rollers to clear the roller guide
stop, and push in.
Changing Oven Light
Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the
oven light on during the self-cleaning cycle. High temperature will reduce lamp life.
On some models an interior oven light will turn on automatically when the oven door is opened.
The oven light may be turned on when the door is closed by using the oven light switch located on the control panel.
On a self clean oven the lamp is covered with a glass shield held in place by a wire holder.
THIS GLASS SHIELD MUST BE IN PLACEWHENEVER THE OVEN IS IN USE.
To replace the light bulb:
CAUTION: BE SURE OVEN IS COOL
1. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Replace bulb with a 40 watt appliance bulb only.
4. For self-cleaning oven, press wire holder to one side to release glass shield, change bulb and be
sure to replace glass shield.
21
