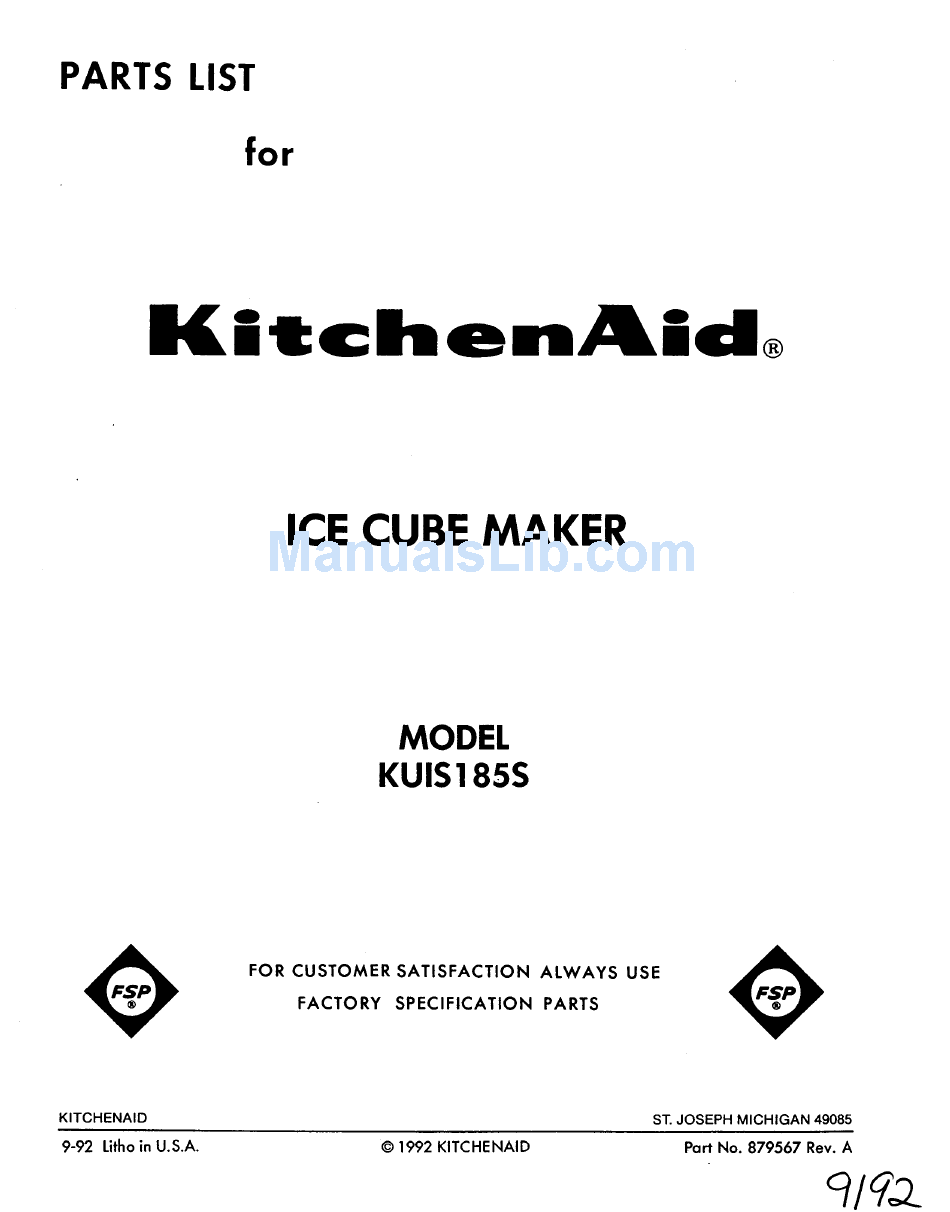

KitchenAid KUIS185S Parts List

Ice cube maker
Hide thumbs

Advertisement

Advertisement

loading

  Also See for KitchenAid KUIS185S

  Related Manuals for KitchenAid KUIS185S

  Summary of Contents for KitchenAid KUIS185S

  • Page 3 758908 Shell 758652 Front, Shell 756330 Door, Inner Bin 758655 Liner, Door 593192 Plug, Hinge 593104 Strip, Tapping (2) 758748 Trim, Door (2) 593184 Rail, R.S. 593185 Rail, L.S. 681459 Screw, 8-32 x 1/2 (6) 680930 Thumbscrew 681036 Screw, Ground 756350 Liner (Includes Illus.
  • Page 4 702354 Ice Deflector Kit 978025 Valve, Access (1/4") 978026 Valve, Access (5/16") 876764 Valve Access (3/16") DRAIN PUMP KIT 758840 Model # EKDP1 LITERATURE PARTS LIT758801 Tech Sheet LIT758559 Instructions, Installation LIT758491 Instructions, Owner's LIT879567 List, Parts *Note: DO NOT Spray Paints Where They May Come In Contact With Door Gaskets.
  • Page 6 759194 Valve, Complete Water 585856 Tube, Plastic 758597 Plug (2) 585813 Dispenser, Water 758028 Evaporator 756564 Bracket, Grid Mounting (2) 681611 Thumbscrew 758737 Spacer, (2) Water Valve 585853 Shelf, Water Pan 681770 Nut, Acorn (3) 593369 Hose, Overflow 596037 Screw, 10-32 x 1/2 681688 Screw, 1/4 x 20 x 1 3/4 598277...
  • Page 8 569434 Plug, Pump 756124 Cover, Plug 681391 Screw, 8-18 x 3/4 593702 Housing, Motor 587096 Blade, Fan 756950 Motor, Pump 593060 Washer 756122 Bracket, Pump 596016 Grommet (2) 593229 Sleeve 681390 Screw, 8-32 x 3/8 756782 Pump, Water Complete Assembly 583518 Pump Assembly 569513...
  • Page 10 757955 Shroud 572728 Blade, Fan 593363 Motor, Fan 560817 Bracket 681305 Screw, 1/4-20 x 1/2 (5) 485780 Compressor 680233 Screw (4) 595230 Washer (4) 585564 Sleeve (4) 596355 Grommet (4) 938384 Clamp (Used W/Original Compressor) 564234 Clamp, Coil Retainer 587970 Coil, Solenoid 598086 Valve Body...
  • Page 12 681036 Screw 758414 Transformer 756664 Escutcheon, Panel 593139 Switch, Service 756341 Bracket, Control 595431 Screw, 8-15 x 3/8 595005 Screw, 8-32 x 1/4 758569 Escutcheon 758726 Decal, Escutcheon 598235 Thermostat, Evaporator 759141 Thermostat, Bin Control 681245 Washer 758567 Harness, Grid 758711 Knob (2) 593179...
