- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE For Models: KUIS185JSS2 MAKER (STAINLESS STEEL) 12−04 Litho In U.S.A (djc) Part No. 8198365 Rev. A...

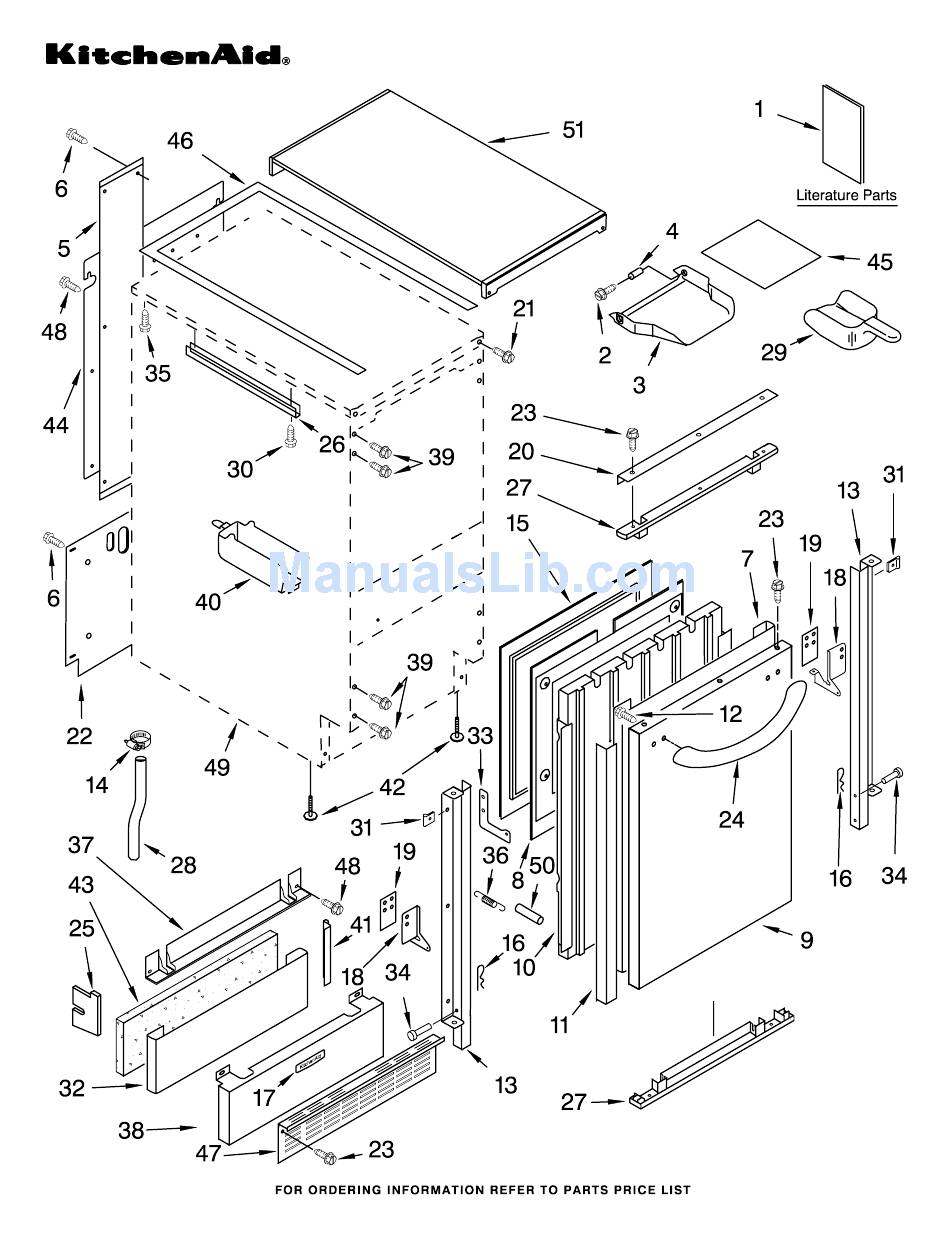

- Page 2 2208425 (Left Side) 2208426 (Right Side) 2208401 Shim, Hinge 2208452B Handle Assembly (w/ Magnets) 3400887 Screw 8−18 X 1/2 2208399 Assembly, Unit Cover For Models: KUIS185JSS2 (STAINLESS STEEL) Illus. Part DESCRIPTION 8281184 Screw 2208597S Handle, Bar 2217225 Pad, Foam 2185691 Channel, Wiring...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JSS2 (STAINLESS STEEL) 8198365...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JSS2 (STAINLESS STEEL) Illus. Part DESCRIPTION 2217311 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208420 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill...
-
Page 5: Pump Parts
8198365 PUMP PARTS For Models: KUIS185JSS2 (STAINLESS STEEL) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS185JSS2 (STAINLESS STEEL) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness Grid/ Light 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS185JSS2 (STAINLESS STEEL) 8198365... - Page 8 UNIT PARTS For Models: KUIS185JSS2 (STAINLESS STEEL) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2 2208370 Compressor...
