- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 3−01 Litho In U.S.A. (tlf) Part No. 8197608...

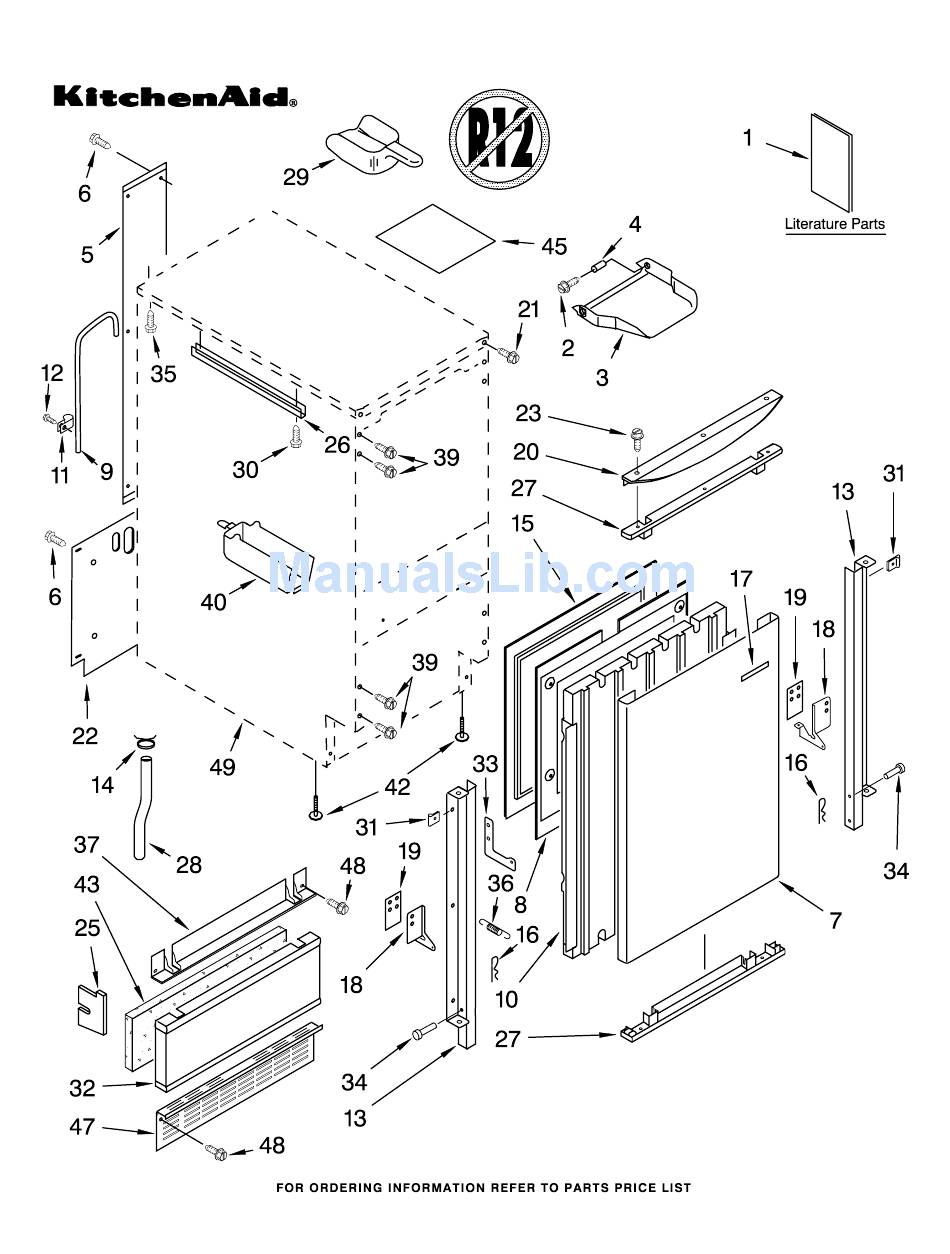

- Page 2 2208426 (Right Side) 2208401 Shim, Hinge Handle, Door 2208440W (White) 2208440B (Black) 3400887 Screw 8−18 X 1/2 2208399 Assembly, Unit Cover For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION Screw, Handle 8281137 (White) 8281138 (Black) 2208402 Pad, Foam...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 8197608...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2185669 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208464 Evaporator 627018 Nut, Compression 841707 Insert, Tube...
- Page 5 4388318 Wiring Harness 2185751 Bracket, Pump 3400883 Screw 8−32 X 1/2 2208481 Sleeve 3400909 Nut, Push−In 2185677 Cover, Pump 2185585 Bracket, Connector Assembly 2185754 Impeller, Pump 2185749 Cap, Pump 8197608 PUMP PARTS For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL)
-
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 8197608... - Page 8 UNIT PARTS For Models: KUIS185JPW0, KUIS185JPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2183437 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2...
