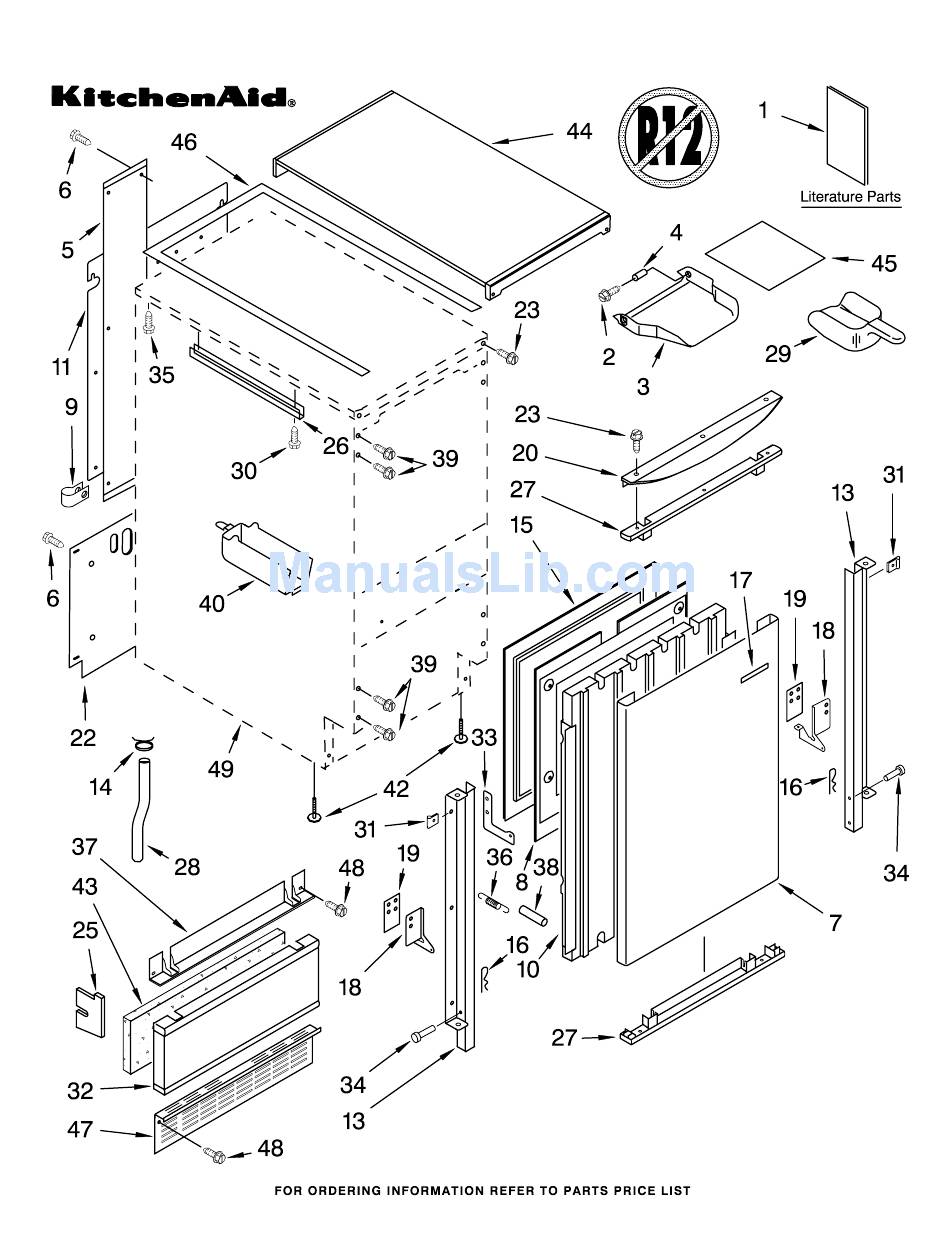

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 1−03 Litho In U.S.A. (ebk) Part No. 8198425...
- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 Illus. Part DESCRIPTION Literature Parts LIT2217251 Use & Care Guide LIT2217232 Service & Wiring Sheet 3400886 Screw 8−18 X 1 1/4 2208354 Bin, Door 2185678 Spacer 2185575 Cover, Wiring...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8198425...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2217269 Evaporator 627018 Nut, Compression...
-
Page 5: Pump Parts
For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 8198425 PUMP PARTS (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8198425... - Page 8 UNIT PARTS For Models: KUIS185JWH3, KUIS185JBT3, KUIS185JBL3, KUIS185JBS3 (WHITE) (BISCUIT) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2...
