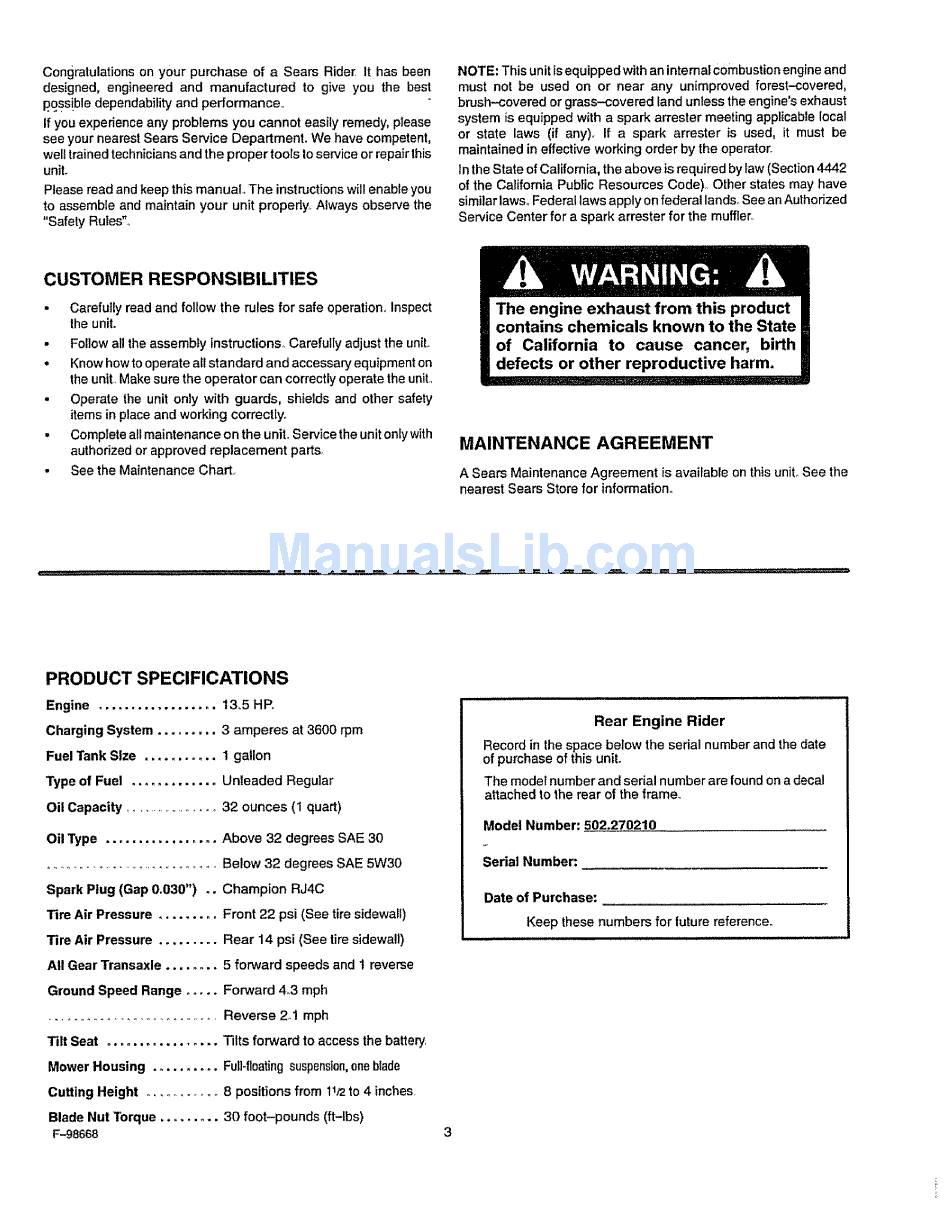

Congratulations on your purchase of a Sears Rider It has been
designed, engineered and manufactured to give you the best
Poss!ble dependability and performance
if you experience any problems you cannot easily remedy, please
see your nearest Sears Service Department We have competent,
welt trained technicians and the proper tools to service or repair this
unit.
Please read and keep this manual The instructions will enable you
to assemble and maintain your unit properly. Always observe the
"Safety Rules".,
NOTE: This unit is equipped with an intemaf Combustion engine and
must not be used on or near any unimproved forest-covered,
brush-covered or grass-covered land unless the engine's exhaust
system is equipped with a spark arrester meeting applicable local
or state laws (if any)_ If a spark arrester is used, it must be
maintained in effective working order by the operator
In the State of California, the above is required by law (Section 4442
of the California Public Resources Code) Other states may have
similar lawsoFederal laws apply on federal lands See an Authorized
Service Center for a spark arrester for the muffler
CUSTOMER RESPONSIBILITIES
o
e
e
Carefully read and follow the rules for safe operation Inspect
the unit.,
Follow all the assembly instructions Carefully adjust the unit
Know how to operate all standard and accessary equipment on
the unit Make sure the operator can correctly operate the unit
Operate the unit only with guards, shields and other safety
items in place and working correctly
Complete all maintenance on the unit. Service the unit only with
authorized or approved replacement parts
See the Maintenance Chart
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this uniL See the
nearest Sears Store for inforrnaliom
PRODUCT SPECIFICATIONS
Engine .................. 13,,5 HP,,
Charging System ......... 3 amperes at 3600 rpm
Fuel Tank Size ........... 1 gallon
Type of Fuel ............. Unleaded Regular
Oil Capacity ...................... 32 ounces (1 quart)
Oil Type ................. Above 32 degrees SAE 30
........................................ Below 32 degrees SAE 5W30
Spark Plug (Gap 0 030") .. Champion RJ4C
Tire Air Pressure .........
Tire Air Pressure .........
All Gear Transaxle ........
Front 22 psi (See tire sidewall)
Rear 14 psi (See tire sidewall)
5 forward speeds and I reverse
Ground Speed Range ..... Forward 4.3 mph
................................ Reverse 2.1 mph
Tilt Seat ................. Tilts forward to access the battery
Mower Housing .......... Fuf]-fl0atingsuspension, o neblade
Cutting Height ........... 8 positions from 11/2 to 4 inches
Blade Nut Torque ......... 30 foot-pounds (ft-lbs)
F-98668
Rear Engine Rider
Record in the space below the sedal number and the date
of purchase of this uniL
The model number and serial number are found on a decal
attached to the rear of the frame.
Model Number: 502.270210
Serial Number:
Date of Purchase:
Keep these numbers for future reference°
