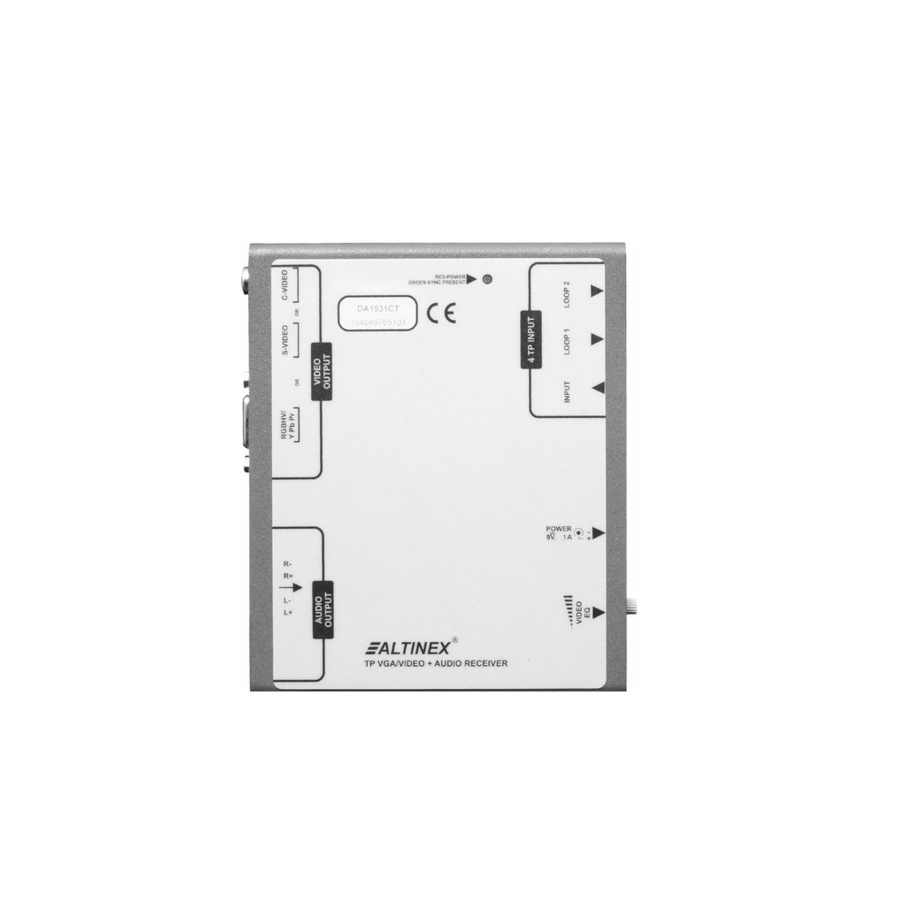

- Page 1 SPECIAL APPLICATION MANUAL PART NUMBER: 400-0199-006 DA1931CT TWISTED PAIR TO VIDEO + AUDIO RECEIVER USER’S GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS / SAFETY WARNINGS... 2 GENERAL...2 INSTALLATION...2 CLEANING...2 FCC NOTICE ...2 ABOUT YOUR DA1931CT ... 3 TECHNICAL SPECIFICATIONS... 3 PRODUCT DESCRIPTION ... 5 APPLICATION DIAGRAMS... 6 DIAGRAM 1: TYPICAL SETUP ...6 DIAGRAM 2: RJ-45 PINOUT ...7 DIAGRAM 3: INTERNAL VIEW ...8 DIAGRAM 4: DIP-SWITCH SETTINGS ...9... -
Page 3: Precautions / Safety Warnings
Please read this manual carefully before using your DA1931CT. Keep this manual handy for future reference. These safety instructions are to ensure the long life of your DA1931CT and to prevent fire and shock hazards. Please read them carefully and heed all warnings. -
Page 4: About Your Da1931Ct
Pair-type (CAT-5) cable when used together with an ALTINEX Twisted Pair Video Transmitter, such as the DA1930CT. The DA1931CT is compact and easy to use. The DA1931CT is able to receive one of the video sources such as RGBHV, component video,... -
Page 5: Special Application
Finish Top Panel Height Width Depth Weight Ship Weight T Operating T Maximum Humidity MTBF (calculations) Table 2. DA1931CT Mechanical 400-0199-006 SPECIAL APPLICATION DA1931CT ELECTRICAL 0.1” Al Input ALTINEX Grey Twisted Pair Lexan Overlay Output Video Signals 5.28 in (134 mm) RGBHV/YPbPr - Video 4.29 in (109 mm) -
Page 6: Product Description
PRODUCT DESCRIPTION C-VIDEO OUTPUT S-VIDEO OUTPUT RGBHV/YPbPr OUTPUT AUDIO OUTPUTS 400-0199-006 SPECIAL APPLICATION LOOP 2 OUTPUT LOOP 1 OUTPUT INPUT POWER VIDEO... -
Page 7: Application Diagrams
SPECIAL APPLICATION APPLICATION DIAGRAMS DIAGRAM 1: TYPICAL SETUP 400-0199-006... -
Page 8: Diagram 2: Rj-45 Pinout
DIAGRAM 2: RJ-45 PINOUT 400-0199-006 SPECIAL APPLICATION Pin Number RJ-45 Output Signals Orange/White Orange Green/White Blue Blue/White Green Brown/White Brown Table 1 Standard 568B Wiring Color Code... -
Page 9: Diagram 3: Internal View
DIAGRAM 3: INTERNAL VIEW TWISTED PAIR TO VIDEO + AUDIO RECEIVER POWER 2.5mm 9V, 1A PAIR 1 INPUT PAIR 2 PORT RJ-45 PAIR 3 TWISTED PAIR PAIR 4 PAIR 1 PAIR 2 LOOP 1 PORT RJ45 TWISTED PAIR 3 PAIR PAIR 4 PAIR 1 LOOP 2... -
Page 10: Diagram 4: Dip-Switch Settings
S-VIDEO RGBHV/ YPbPr AUDIO AUDIO 400-0199-006 SPECIAL APPLICATION The DA1931CT has an internal Dip-Switch with 6 positions to achieve the following features: Position Description Video Gain (G=1/G=2) Factory Default = OFF (G=2). Sync on Green (ON/OFF) Factory Default = OFF... -
Page 11: Installing Your Da1931Ct
400-0199-006 SPECIAL APPLICATION OPERATION The DA1931CT requires only one adjustment to be made for optimal performance. Video Equalization is required for long cable lengths and may be adjusted to fine-tune the video display. 7.1 VIDEO EQUALIZATION Video Equalization is provided to fine-tune the displayed image on the remote display. -
Page 12: Led Is Not Green
Cause 1: There is no power. Solution: Disconnect the video input from the DA1931CT and verify the LED is on and red indicating power is present. Reconnect the computer output. If the LED is not green see Cause 2. Cause 2: There is no Sync signal.
