Disk array frames

XP1024 hardware
The disk array frames are where the physical disk drives, the disk groups,
and any dynamic spare disk drives are located. You must have at least one
disk array frame to operate the system, and you may have up to a maximum
of four disk array frames installed on your system. If you have four disk
array frames that are fully populated with disk drives, you will have a
maximum of 149 TB. You may also have one to two XP1024 disk array
frames grouped with one to three XP512 DKU frames.
DKU frame DKU frame
(L2) (L1)

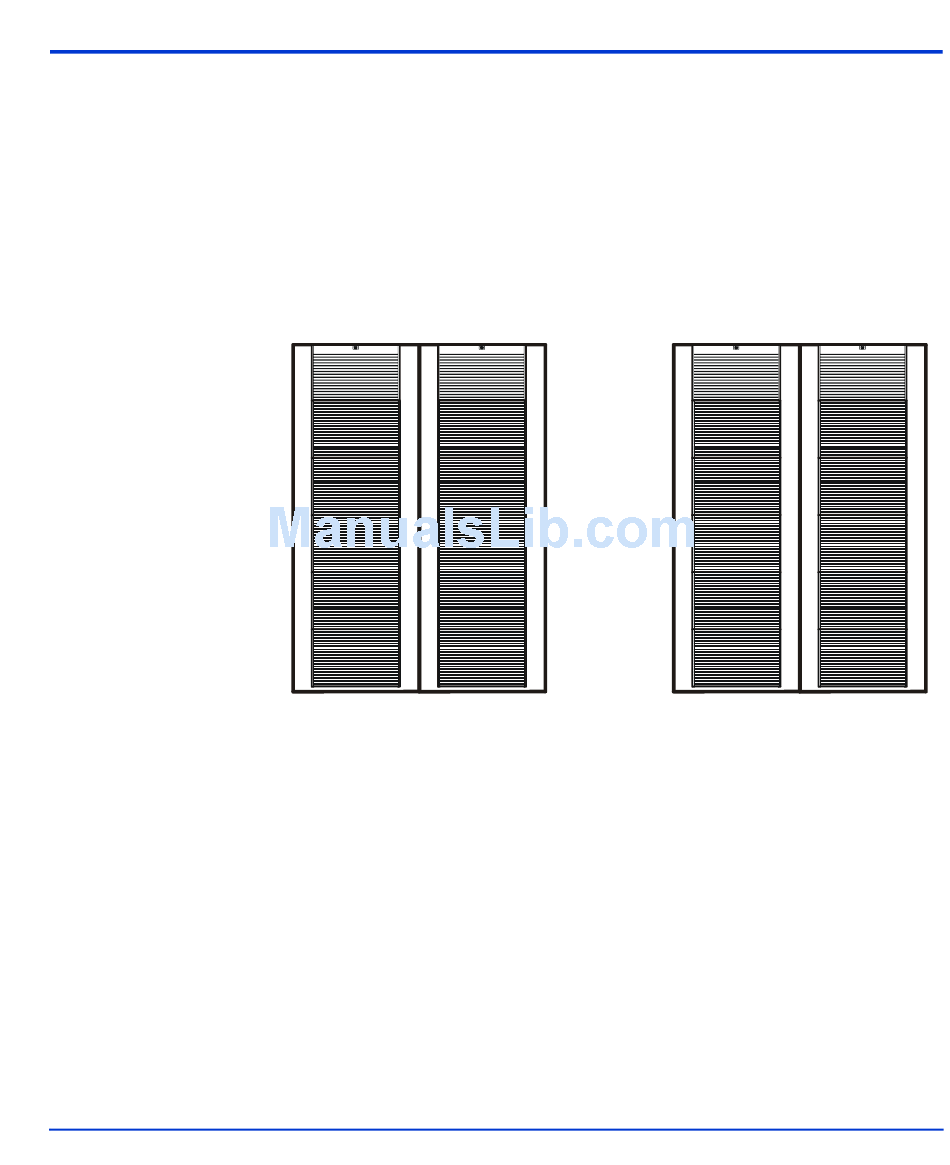

Figure 8. XP1024 Disk Array Frames
DKU frame DKU frame
(R1) (R2)
