Product Overview
Physical Drives
RAID Arrays
LUNS
Pools
Virtual Disks
Snapshots
Folders
Shares
and
Subfolders

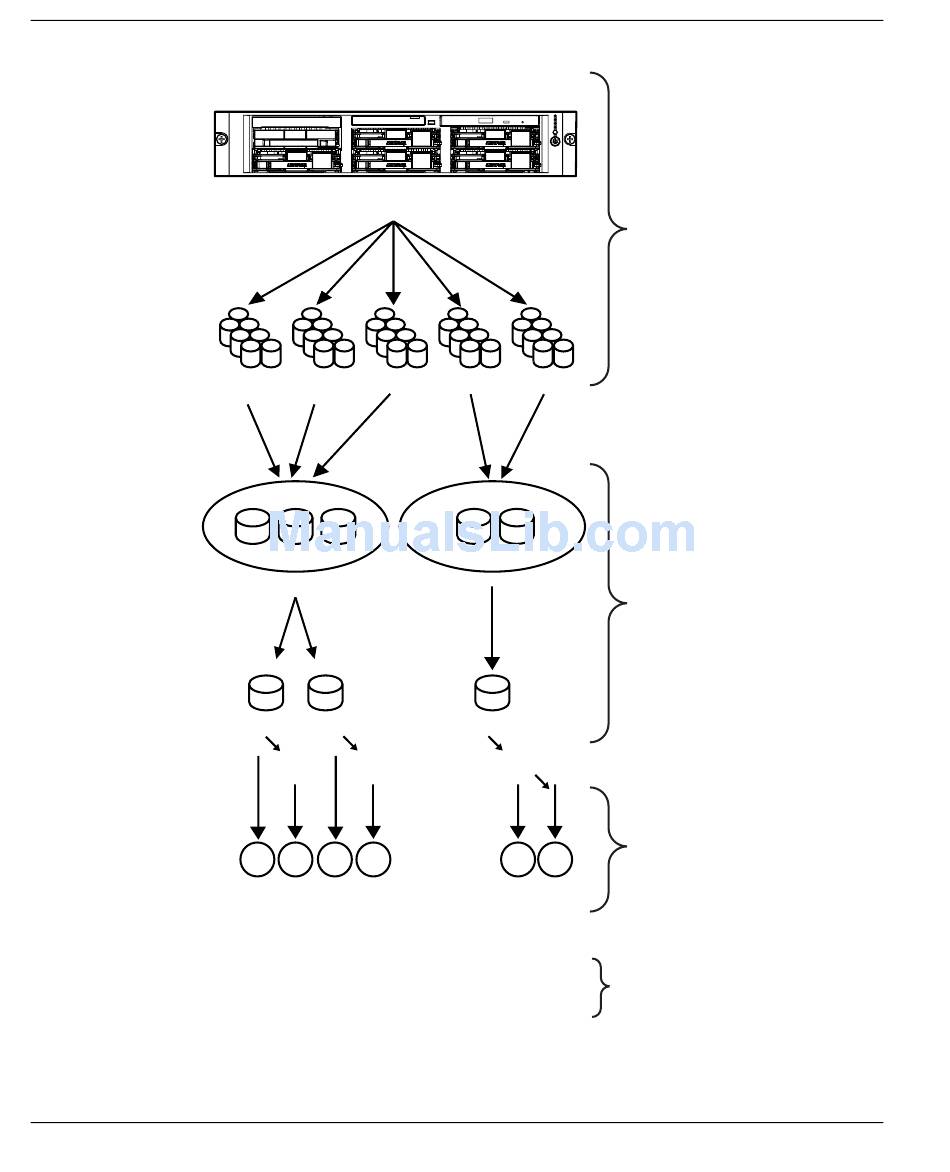

Figure 1-3: Storage management process
1-8
LUN 1 LUN 2 LUN 3
Pool 1
vdisk 1 vdisk 2
snap snap
vd1 vd2
D: N: E: O:
D:\ Acct E:\ Mktg
B2000\Acct B2000\Mktg
LUN 4 LUN 5
Pool 2
vdisk 3
snap
vd3
F: P:
F:\ Eng
B2000\Eng
Storage
Elements
Virtual
Storage
Elements
File System
Elements
File Sharing
Elements
