Use and Care Manual

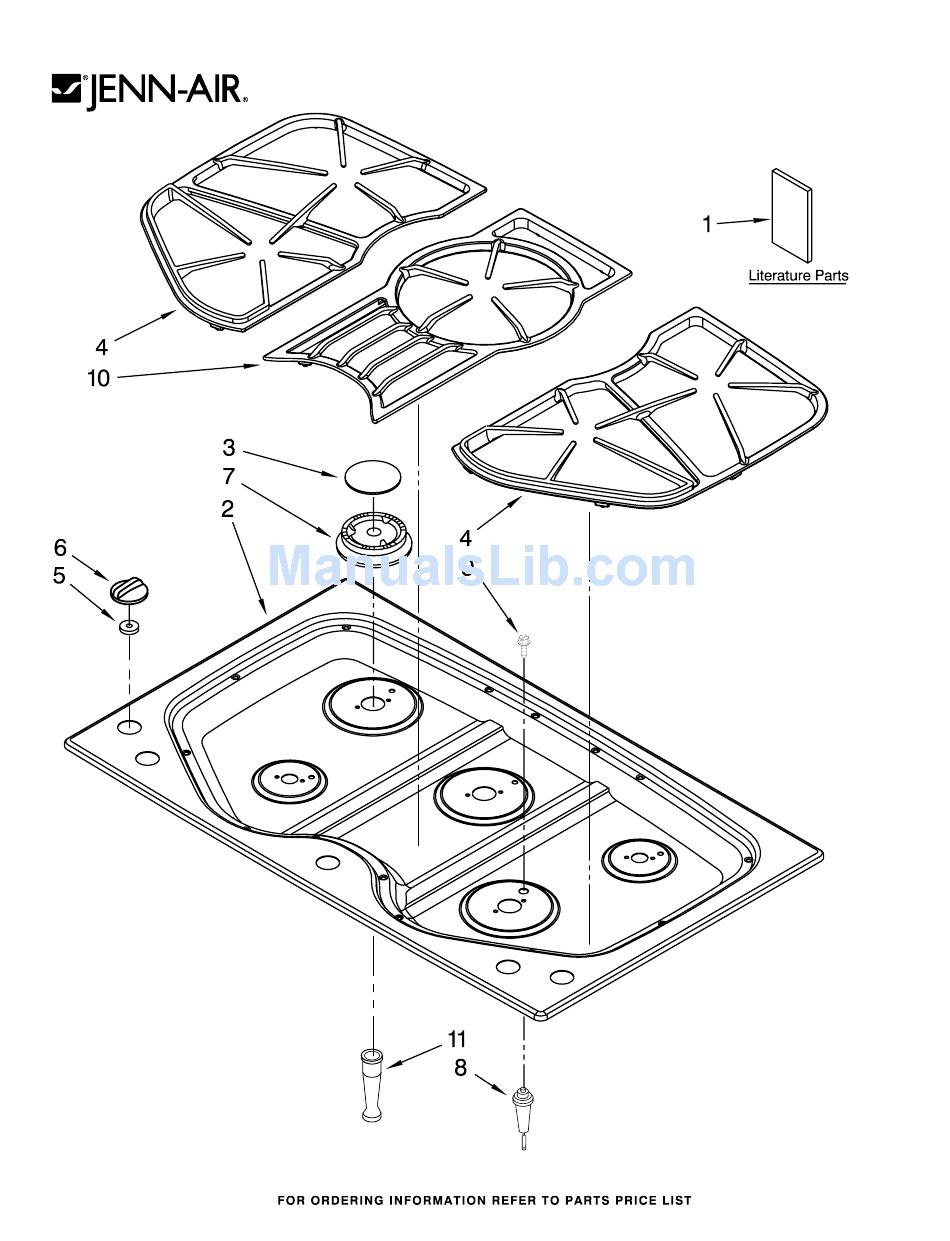

COOKTOP, BURNER AND GRATE PARTS
For Models: JGC8536BDW10, JGC8536BDB10, JGC8536BDS10
(White)
(Black)
(Stainless)
36" GAS COOKTOP
1
5−12 Litho in U.S.A (CCS)(bay)
Part No. W10203797 Rev. C
Advertisement
Table of Contents
Related Manuals for Jenn-Air JGC8536BDB10
Summary of Contents for Jenn-Air JGC8536BDB10
- Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: JGC8536BDW10, JGC8536BDB10, JGC8536BDS10 (White) (Black) (Stainless) 36" GAS COOKTOP 5−12 Litho in U.S.A (CCS)(bay) Part No. W10203797 Rev. C...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: JGC8536BDW10, JGC8536BDB10, JGC8536BDS10 (White) (Black) (Stainless) Illus. Part DESCRIPTION Literature Parts W10203467 Installation Instructions W10203466 Use & Care Guide Cooktop 74007732 White 74007729 Black 74007731 Stainless Cap, Burner 7504P165−60 LR & RF 7504P202−60 LF & RR 7504P204−60 CTR Grate, Burner W10203775 Left...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: JGC8536BDW10, JGC8536BDB10, JGC8536BDS10 (White) (Black) (Stainless) W10203797...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Models: JGC8536BDW10, JGC8536BDB10, JGC8536BDS10 (White) (Black) (Stainless) Illus. Part DESCRIPTION 1 W10203777 Burner Box 74005976 Rail,Burner (CTR) 74005952 Rail,Burner(Side) 7513P297−60 Pipe, Manifold 5 W10110573 Module, Spark 6 W10203556 Cover,Spark Mod 74007747 Regulator, Prsr 74007755 Tube, Burner (LF) 74007756 Tube, Burner (LR) 74007757 Tube, Burner (RF)
- Page 5 OPTIONAL PARTS (NOT INCLUDED) For Models: JGC8536BDW10, JGC8536BDB10, JGC8536BDS10 (White) (Black) (Stainless) Illus. Part DESCRIPTION Following Parts Not Illustrated 74007903 Cord, Power Miscellaneous 74007746 Kit, LP Orfice WIRING HARNESS PARTS 74007769 Harness, Main W10173477 Harness, Spark W10203797...
