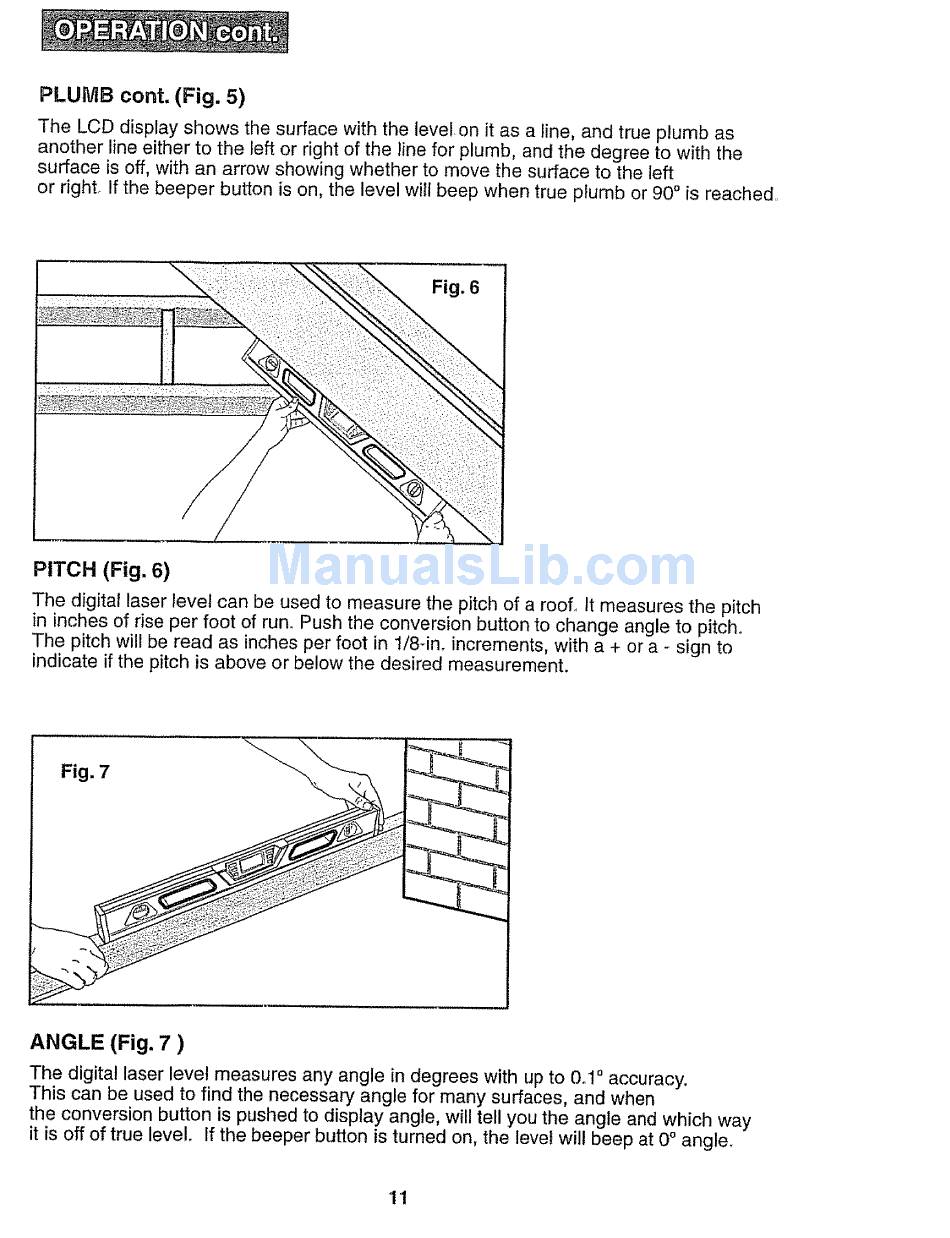

Craftsman 320.48293 Operator's Manual page 11

PLUMB cont. (Fig. 5)
The LCD display shows the surface with the level, on it as a fine, and true plumb as
another line either to the left or right of the line for plumb, and the degree to with the
surface is off, with an arrow showing whether to move the surface to the left
or right. If the beeper button is on, the level will beep when true plumb or 90 ° is reached..
Fig. 6
PITCH (Fig. 6)
The digital laser level can be used to measure the pitch of a roof_ It measures the pitch
in inches of rise per foot of run. Push the conversion button to change angle to pitch.
The pitch will be read as inches per foot in 1/8-ino increments, with a + or a - sign to
indicate if the pitch is above or below the desired measurement.
Fig. 7
ANGLE (Fig. 7 )
The digital laser level measures any angle in degrees with up to 0ot ° accuracy.
This can be used to find the necessary angle for many surfaces, and when
the conversion button is pushed to display angle, will tell you the angle and which way
it is off of true level. If the beeper button is turned on, the level will beep at 0 ° angle.
