- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSO42FMX02 (Etched Aluminum) Part No. 8214651 11−05 Litho In U.S.A. (mek)
-
Page 2: Cabinet Parts

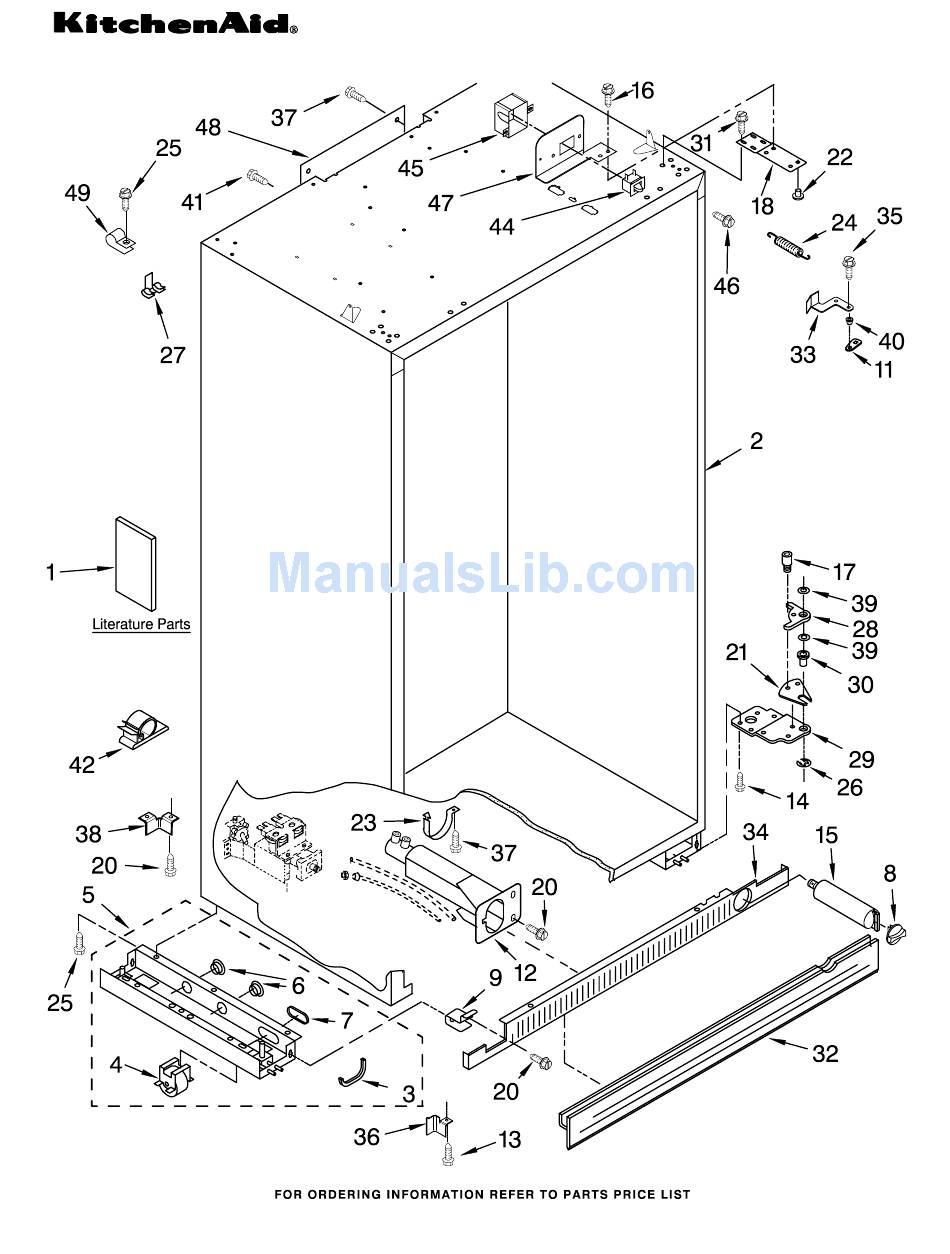

CABINET PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209022 Housing, Water Extension Arm, Literature Parts Filter Door Closer 2317086 Use & Care Guide 2266882 Right 2307363 Energy Label 488500 Screw 2306324 Service & Wiring 3400525 Screw 2266881 Left Sheet... - Page 3 CABINET TRIM PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688X Etched Aluminum Screw 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw 2313992 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689X Etched Aluminum 2005925 Seal−Trim, Side 489464 Screw 8214651...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Solid Shelf 8533929 Screw 2302883 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice 2266955 Spacer, Ice Door 2266931 Ice Bucket 2302871 Cover Shelf 8214651... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid Baffle, Meat Pan 2302987 Baffle, Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2302772 Control Box 2162085 Socket, Light (2) 2221121 Support, Control 2303938 Insert, Control 2255743 Light Bulb (2) 489006 Screw 486194 Screw 2302913 Circuit Board, 2306086 Display Board, 8281185 Screw Housing Control... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Top Grille 2259420X Grille−Trim, 2187429 Wire Assembly Assembly Right Side RC/FC Light Switch 2259423X Etched Aluminum 2259441X Grille−Trim, Top 2215910 Grommet, Flexible 2259320 Cover, Unit 2259421X Grille−Trim, 489348 Clamp, Tube...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257611 Trim, Glass 2169935 Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan Slide, Meat Pan 2302955 Right Side 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2259385 Fan Motor 2266801 Deflector, Air 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 487294 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2255743 Light Bulb (2)
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Insulation) 2259448X Trim, Screw Cover (Handle Side) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic 2259365X Trim, Screw Cover...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651... - Page 16 FREEZER DOOR PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 2252327 Freezer Door Panel (Includes Insulation) 2259448X Trim, Screw Cover (Handle Side) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2259365X Trim, Screw Cover (Hinge Side) 2222814 Door Gasket, Magnetic Trim (Handle Side)
- Page 17 UPPER UNIT PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651...
- Page 18 UPPER UNIT PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 943447 Grommet (4) 2266802 Switch, Power 2306957 Inverter Box 2187629 Wire, Jumper Disconnect 489373 Screw, Compressor 487522 Screw 487294 Screw, Ground Mounting (4) 2155774 Wire Tie 2187900 Wiring Harness, 2223393 Compressor...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259353 Tube, Discharge 2302937 Thermistor 9791833 Clip 2306093 Evaporator...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSO42FMX02 (Etched Aluminum) 8214651... - Page 22 ICEMAKER PARTS For Model: KSSO42FMX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259064 Cover, Fill Tube 488937 Clamp Tube 2306151 Water Valve 487539 Screw 2257538 Cover Mounting Bracket 2187715 Wire Assembly, 2221240 Heater, Fill Tube 489136 Screw (2) Icemaker 628228 Mold &...
