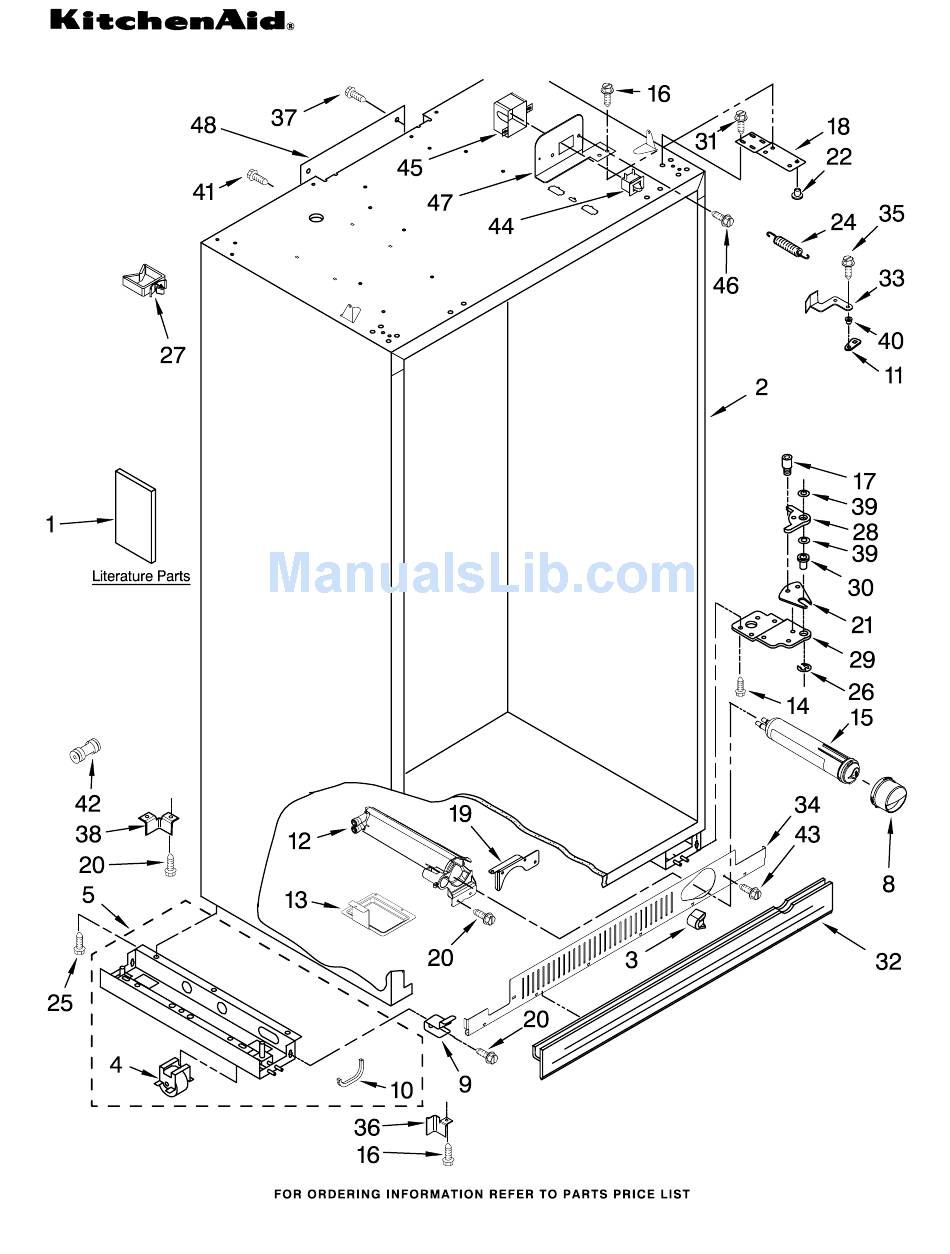

- Page 1 CABINET PARTS 36" BUILT IN For Model: KSSC36QTS00 REFRIGERATOR (Stainless Steel) 10−07 Litho In U.S.A. (dmm) Part No. W10135121 Rev. B...
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4396841 Filter, Water Grille Bottom, Literature Parts 489399 Screw Front 2316571 Use & Care Guide 3400230 Screw, Door Stop 2325184B Black 2316572 Energy Guide 2257644 Hinge (Top) 2005921 Screw 2316566 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316686 Cabinet, Trim (Bottom) 486194 Screw 2314016 Cabinet, Trim Top Cabinet Trim (Left Side) W10132541 Stainless Steel 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10135121...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 2302882 Wire, Shelf (2) 2302867 Shelf, Fixed (4) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10135121... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2320635 Baffle Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 2316544 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2324971 Bracket, Control Box 2307594 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10135121... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorative Assembly 2316736S Stainless Steel 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 2317923S Badge, Kitchen Aid 489348 Clamp 2004333 Nut...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2302841 Assembly, Meat Pan Cover 2302834 Assembly, Crisper Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side Trim, Glass Front (Not Serviceable)
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2215650 Cover, Emitter 2259493 Cover, Receiver 2259385 Fan Motor Liner (Not A 2310310 Harness, Evap Fan 2198665 Tube, P.C. Board Serviceable Part) (Includes Item 55) 2169142 Fan Blade...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 2222960 Ice Bin 2222959 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Skin, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 18 FREEZER DOOR PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10130856 Freezer Door (Includes #8) 2304896 Saftey Barrier 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222813 Door Gasket, Magnetic Handle, Door 2316868 Stainless Steel Spacer, Door−Skin (Handle Side) 2309060 For Stainless...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly Housing, Middle...
- Page 21 UPPER UNIT PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121...
- Page 22 UPPER UNIT PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2215641 Bracket, Fan Motor 489373 Screw, Compressor (Condenser Fan) Following Parts Not Illustrated Mounting (4) 2206036 Motor, Fan and Optional Parts Not Included 2302967 Compressor 2190685 Blade, Fan (Includes Items...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part DESCRIPTION 2215648 Damper, Heater 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 9 W10121370 Tube, Discharge 2188820 Thermistor 2306092 Evaporator 2306387 Heater, Defrost...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSC36QTS00 (Stainless Steel) W10135121... - Page 26 ICEMAKER PARTS For Model: KSSC36QTS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 W10122550 Mold & Heater 489136 Screw (2) 2320599 Shield, Valve (Also Order 489464 Screw 2310192 Wire Assembly, 542638 Silicone 486194 Screw Icemaker Grease) 2300167 Bracket, Icemaker 628379 Clip, Fuse Motor, (Not...
