KitchenAid KSSC36QKS01 Parts List

KitchenAid KSSC36QKS01 Parts List

36" built in refrigerator
Hide thumbs Also See for KSSC36QKS01:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Model: KSSC36QKS01
(Stainless Steel)
1
5−03 Litho In U.S.A. (tpm)
Part No. 8198065

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSC36QKS01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSC36QKS01

Summary of Contents for KitchenAid KSSC36QKS01

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSC36QKS01 (Stainless Steel) 5−03 Litho In U.S.A. (tpm) Part No. 8198065...

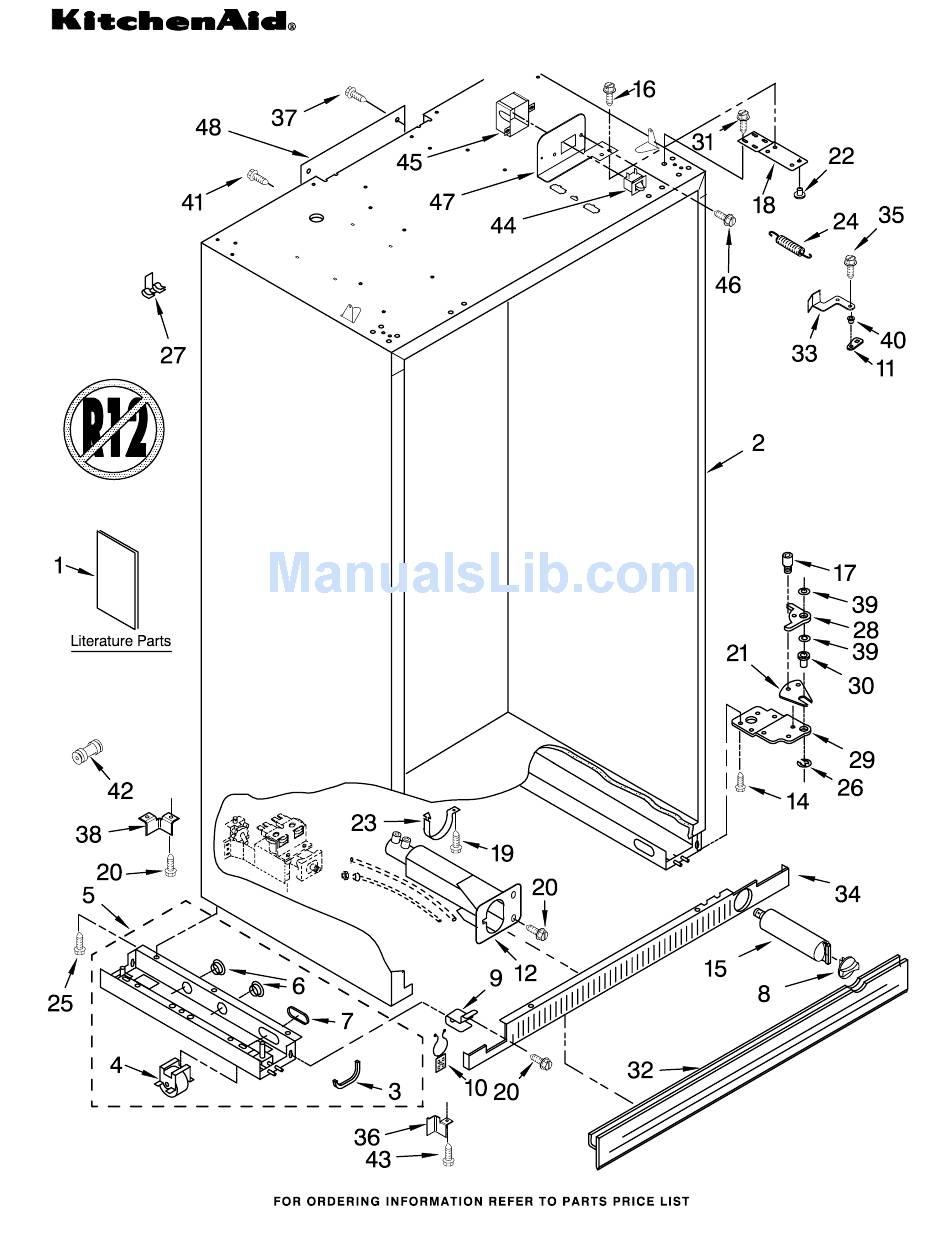

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Extension Arm, 2209022 Housing, Water Literature Parts Filter Door Closer LIT2254714 Use & Care Guide 3400525 Screw 2221095 Right LIT2221283 Energy Label 2203221 Filter, Water 2221094 Left LIT2254722 Service &...
  • Page 3 CABINET TRIM PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2215919S Cabinet, Trim (Right Side) 487294 Screw 8281250 Screw 2254724 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2215936S Cabinet Trim (Left Side) 2005925 Seal−Trim, Side 489464 Screw 8198065...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2220889 Solid Shelf 2220846 Front, Ice Compartment 1113636 Shelf, Fixed (2) 1113564 Shelf, Deep 2208192 Basket 2220843 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 8198065...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2221211 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2220993 Release Valve...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2003841 Retainer, Knob 2221121 Support, Control 489006 Screw 2162085 Socket, Light 2160708 Light Bulb (2) 486194 Screw 2221067 Overlay 1115375 Clip, Wiring (3)
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2215952S Panel, Decorator 2209490 Cover, Unit 487415 Screw 2215830 Back Panel 2209492 Guard, Wiring 2005292 Nameplate 8201530 Baffle−Air, Condenser 2004333 Nut 2221297 Enclosure, Connector 2005483 Bracket, Louver 2215933S Grille, Louver 488879 Screw 487415 Screw...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006523 Frame, Assembly Meat Pan 1113893 Cover, Crisper 2003378 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155788 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2160708 Light Bulb...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2003939 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2187421 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor 489478 Screw...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 8201580 Refrigerator Door Panel (Includes Insulation) 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2188497 Door Gasket, Magnetic 2006771 Door Skin 2005290 Handle, Door...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 18 FREEZER DOOR PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2254730B Freezer Door Panel (Includes Insulation) 2004447 Door Brace, Corner 2215587 Door Skin 2215695 Filler, Door 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top &...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 20 DISPENSER AND FRONT PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2221203 Wire Harness Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw 2180261 Lever, Ice Dispenser 2180236 Switch Assembly...
  • Page 21 UPPER UNIT PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 22 UPPER UNIT PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209324 Inverter Box 487869 Screw Following Parts Not Illustrated 489373 Screw, Compressor 2209062 Condenser Mounting (4) and Optional Parts Not Included 943447 Grommet (4) 2208937 Compressor 2187422 Wire, Jumper (Includes Items...
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2209036 Tube, Discharge 2209063 Evaporator...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Model: KSSC36QKS01 (Stainless Steel) 8198065...
  • Page 26 ICEMAKER PARTS For Model: KSSC36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2221240 Heater, Fill Tube 2221231 Heat Shield 2254737 Wire Assembly, Icemaker 841707 Insert, Tube 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2221140 Water Inlet Tube Assembly 1106508 Seal Gasket 2209430 Tube, Filter Outlet 2221221 Valve, Solenoid 2204357 Nut, Compression...
