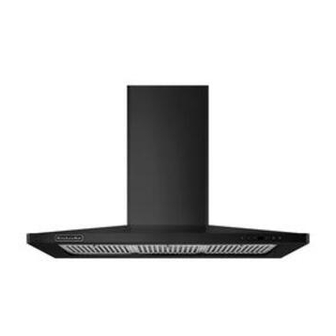

KitchenAid KWCU405SBL0 Parts List

30" canopy hood
Hide thumbs

Advertisement

Quick Links

HOOD PARTS
30" CANOPY HOOD
For Model: KWCU405SWH0, KWCU405SSS0, KWCU405SBL0
(White)
(Stainless)
(Black)
11−08 Litho in U.S.A. (cre) (psw)
Part No. W10138600 Rev.A
1

Advertisement

loading

  Also See for KitchenAid KWCU405SBL0

  Related Manuals for KitchenAid KWCU405SBL0

  Summary of Contents for KitchenAid KWCU405SBL0

  • Page 1 HOOD PARTS 30" CANOPY HOOD For Model: KWCU405SWH0, KWCU405SSS0, KWCU405SBL0 (White) (Stainless) (Black) 11−08 Litho in U.S.A. (cre) (psw) Part No. W10138600 Rev.A...

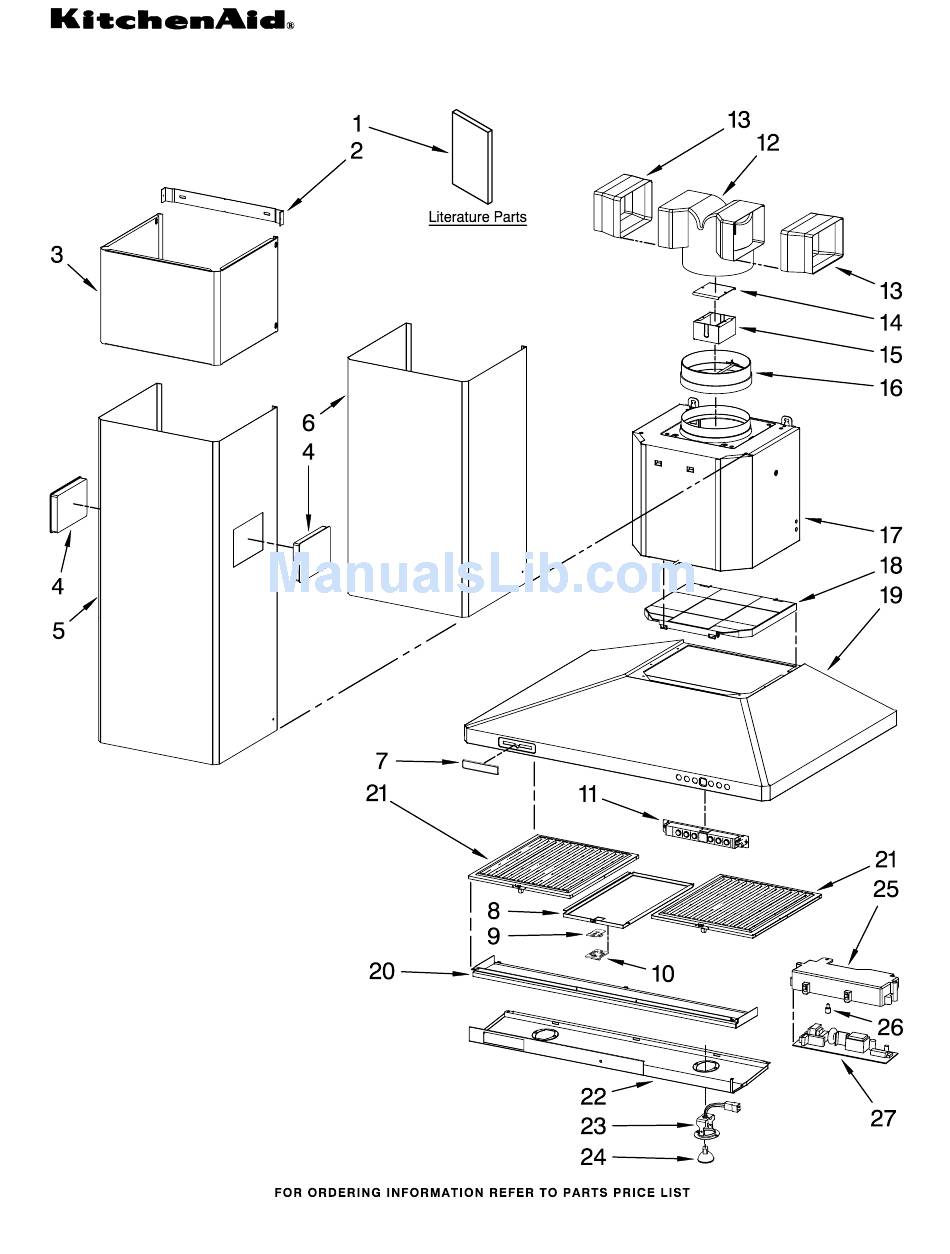

  • Page 2 HOOD PARTS For Model: KWCU405SWH0, KWCU405SSS0, KWCU405SBL0 (White) (Stainless) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Pipe Fitting Hood, Upper W10029780 Use & Care Guide (Ducted) (Not Serviced) 8190354 Bracket, Upper Hood W10138377 White Pipe, Fitting W10138361 White W10138378 Black (Upper)
  • Page 3 MOTOR PARTS For Model: KWCU405SWH0, KWCU405SSS0, KWCU405SBL0 (White) (Stainless) (Black) W10138600...
  • Page 4 MOTOR PARTS For Model: KWCU405SWH0, KWCU405SSS0, KWCU405SBL0 (White) (Stainless) (Black) Illus. Part DESCRIPTION 8190389 Housing, Fan (Upper) 8190388 Support, Motor LH 3 W10138388 Housing, Fan (Lower) 8190384 Cover 5 W10136368 Capacitor 6 W10138387 Cover, Wiring 7 W10138389 Motor Assy 8190391 Support, Motor RH 9 W10138393 Screw 10 W10138390 Box, Electrical 8190393 Connector...
