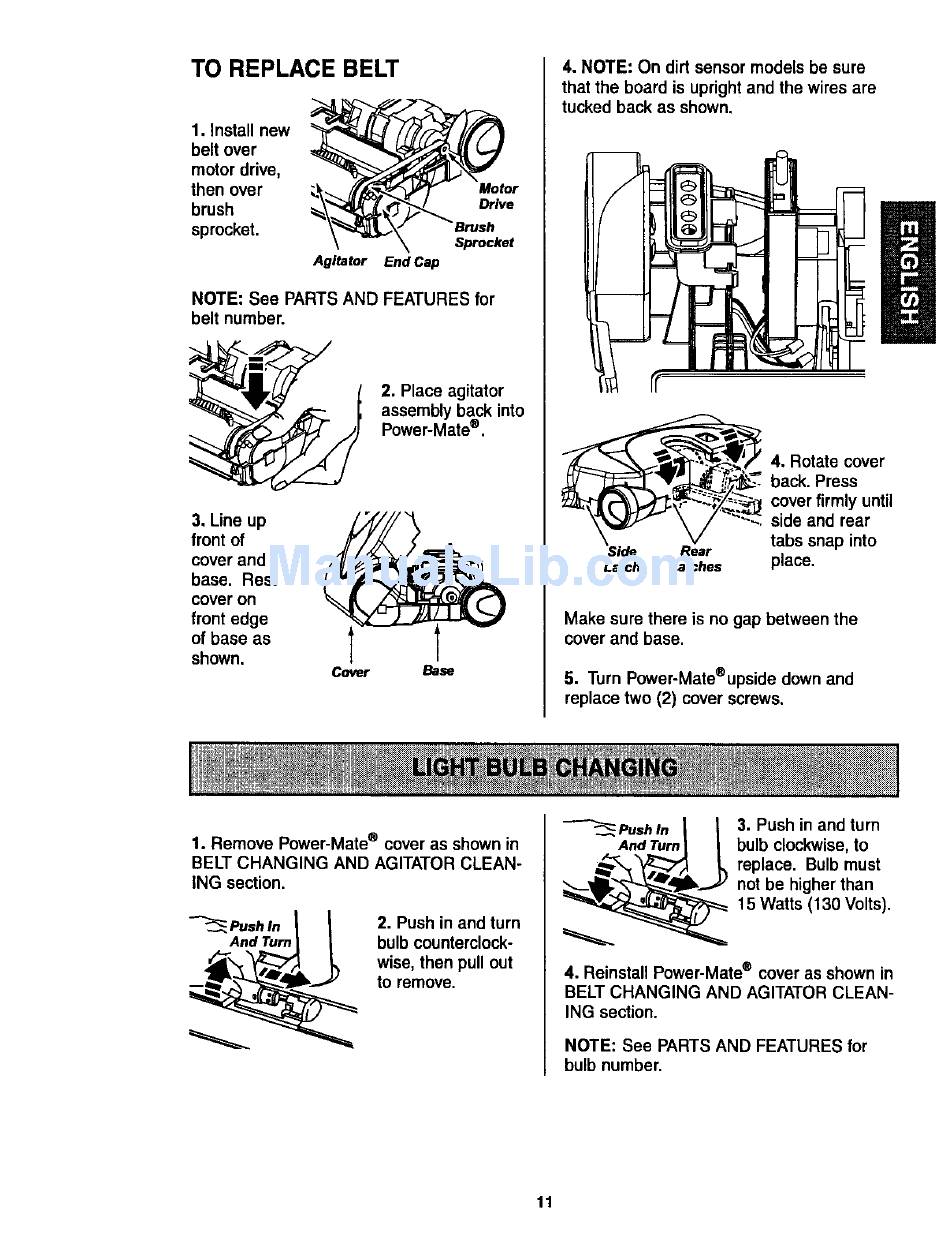

TO REPLACE BELT
1. Install new
belt over
motor drive,
then over
brush
sprocket.
Motor
Drive
Sprocket
Agitator
End Cap
NOTE: See PARTS AND FEATURES for
belt number.
2. Place agitator
assembly back into
Power-Mate ® .
3. Line up
front of
cover and
base. Rest
cover on
front edge
of base as
shown,
Cover
Base
4. NOTE: On dirt sensor models be sure
that the board is upright and the wires are
tucked back as shown.
4. Rotate cover
back. Press
cover firmly until
side and rear
tabs snap into
Latch
Latches
place.
Make sure there is no gap between the
cover and base.
5. Turn Power-Mate®upsidedown and
replace two (2) cover screws.
1. Remove Power-Mate ® cover as shown in
BELT CHANGING
AND AGITATOR CLEAN-
ING section.
Push In
And Turn
b,_
2. Push in and turn
bulb counterclock-
wise, then pull out
to remove.
push , . I I
And Turn |
|
3. Push in and turn
bulb clockwise, to
replace. Bulb must
not be higher than
15 Watts (130 Volts).
4. Reinstall Power-Mate ® cover as shown in
BELT CHANGING
AND AGITATOR CLEAN-
ING section.
NOTE: See PARTS AND FEATURES for
bulb number.
11
