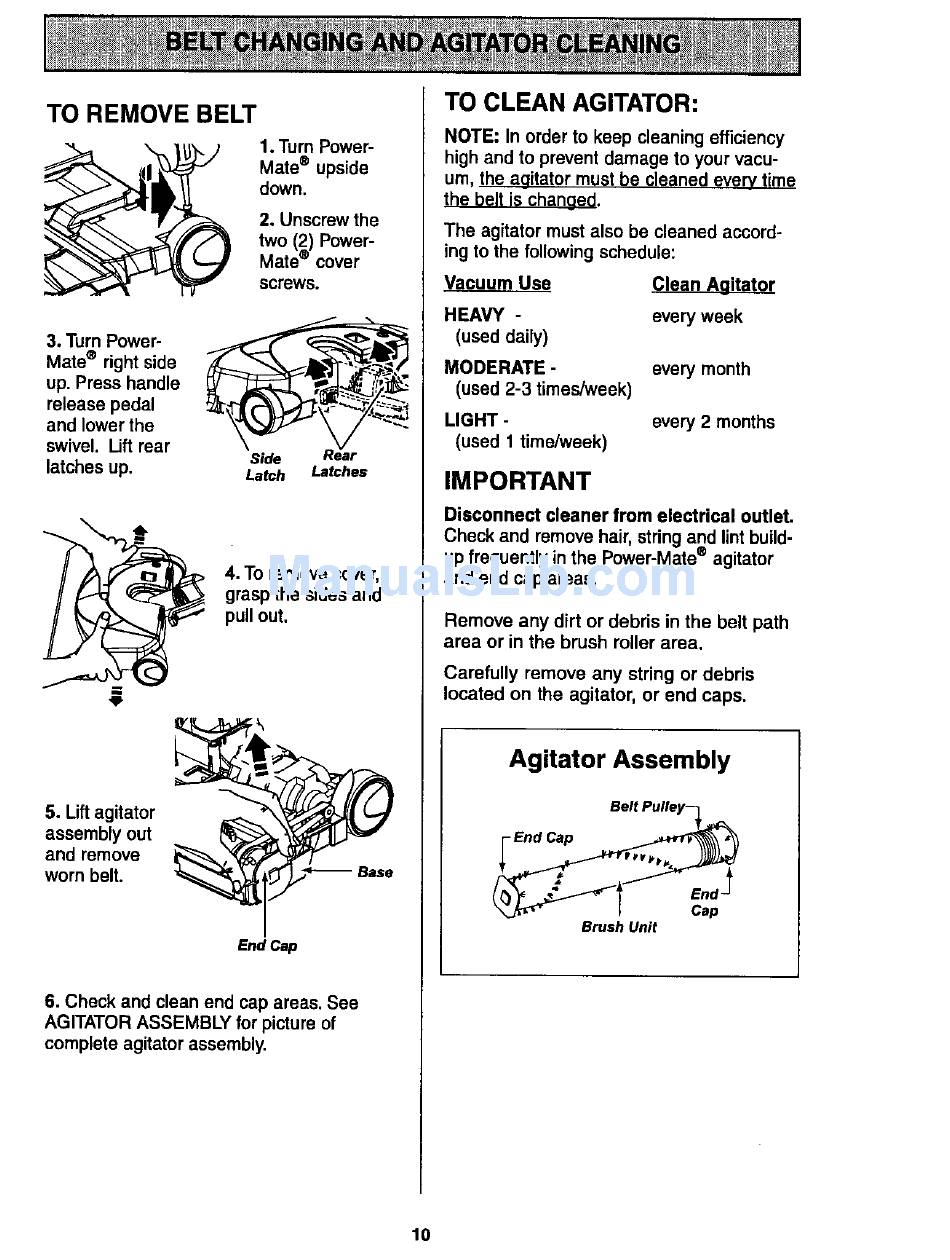

TO REMOVE BELT
1. Turn Power-
Mate ® upside
down.
2. Unscrew the
two (2) Power-
Mate® cover
screws.
3. Turn Power-
Mate ® right side
up. Press handle
release pedal
and lower the
swivel, lift rear
latches up.
Side
Latch
Latches
4. To remove cover,
grasp the sides and
pull out.
5. Lift agitator
assembly out
and remove
worn belt.
Base
EndCap
6. Check and clean end cap areas. See
AGITATOR ASSEMBLY for picture of
complete agitator assembly.
TO CLEAN AGITATOR:
NOTE: In order to keep cleaning efficiency
high and to prevent damage to your vacu-
um, the aaitator must be cleaned every time
the belt is changed.
The agitator must also be cleaned accord-
ing to the following schedule:
Vacuum Use
HEAVY
-
(used daily)
MODERATE
-
(used 2-3 times/week)
LIGHT -
(used 1 time/week)
Clean Aaitator
every week
every month
every2months
IMPORTANT
Disconnect
cleaner from electrical
outlet.
Check and remove hair, string and lint build-
up frequently in the Power-Mate ® agitator
and end cap areas.
Remove any dirt or debris in the belt path
area or in the brush roller area.
Carefully
remove
any string or debris
located on the agitator, or end caps.
Agitator Assembly
Belt Pulley_
Brush Unit
lO
