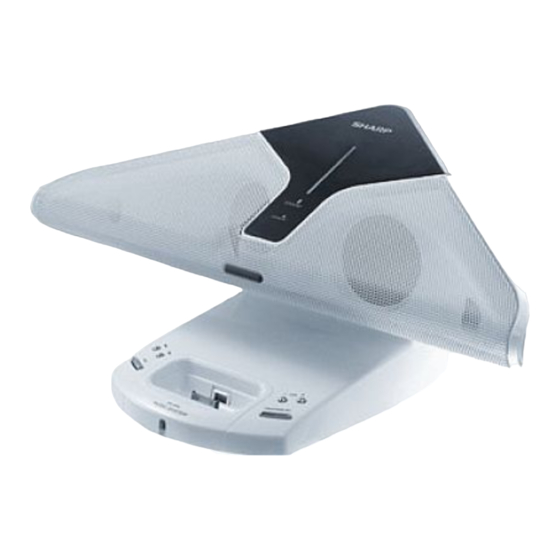

Sharp DK-AP2 Quick Start Manual

Music system for ipod
Hide thumbs


Advertisement

MODEL
DK-AP2
MUSIC SYSTEM FOR iPod
This quick Start Guide will help you to correctly install and operate your system.
Illustration printed in this quick guide are for the model DK-AP2.
Accessories
Remote control x 1
AC power lead x 1

Remote control battery installation

Use the "CR 2025", coin lithium battery.
1
Whilst pushing the locking tab towards the centre of the remote control, slide out the battery holder.
2
Remove the old battery from the battery holder, insert the new battery and then slide the battery holder back into the
remote control.
Locking tab
AC/DC adaptor x 1
RADPAA039AWZZ (DK-AP2)
RADPAA036AWZZ (DK-AP2(BK))
iPod adaptor x 8
Battery holder
Polarity (+) symbol
Battery type
Before using remote control
Before using remote control, please remove plastic shield
at battery holder.
Remote control
Back of remote control
Locking tab
Plastic shield
Battery holder
Positive (+) side up
TINSEA197AWZZ
07G R MW 2
