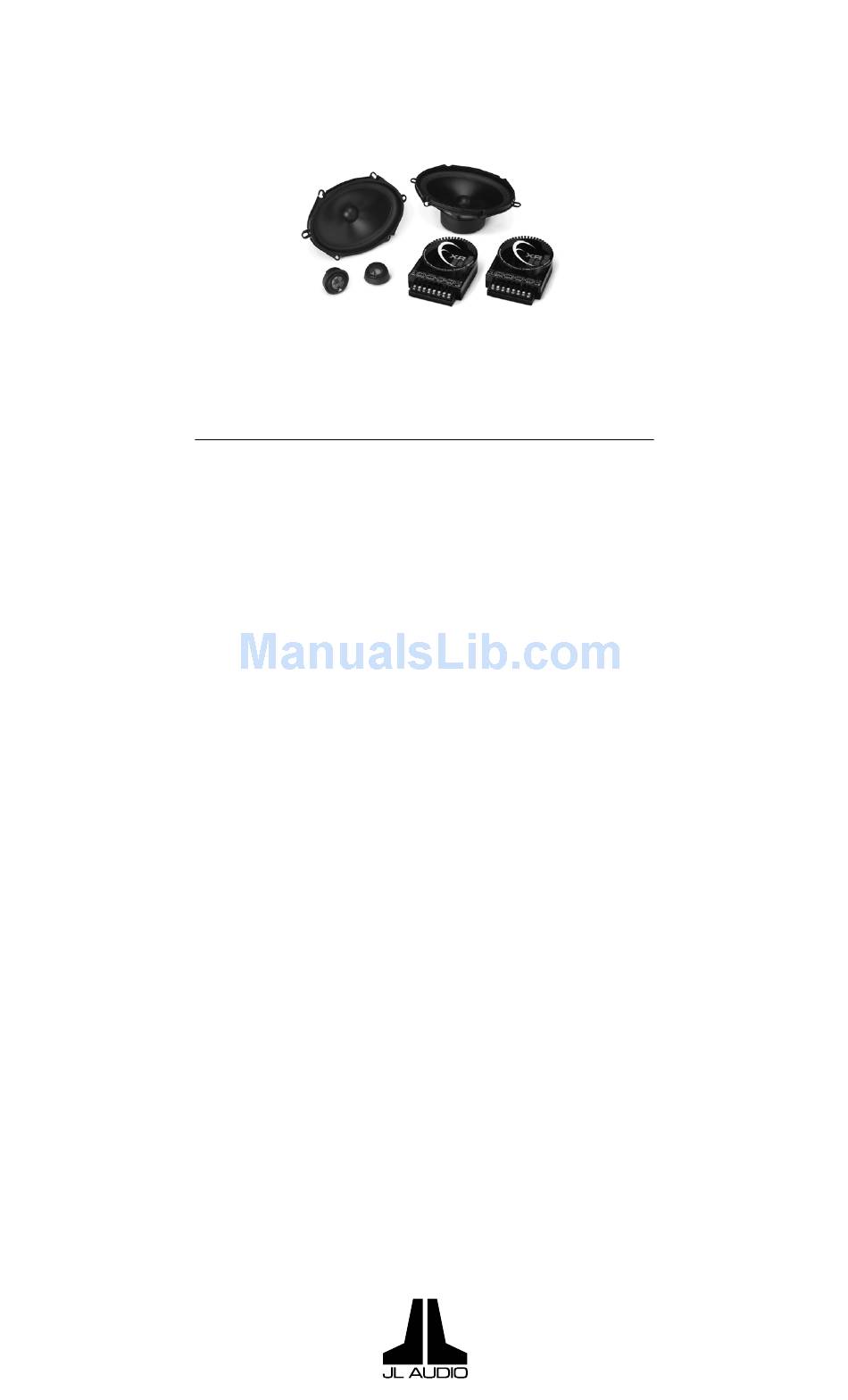

XR570-CSi
5 x 7-inch (125 x 180 mm) Component Speaker System
o w n e r ' s m a n u a l
Thank you for choosing JL Audio Evolution XR Coaxials for your
automotive sound system. With proper installation, your new
speakers will deliver years of listening pleasure.
We strongly recommend that you have your new Evolution speakers
installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and
experience to disassemble your interior panels, install your new
speakers and reassemble your vehicle properly. Also, keep in mind
that your warranty coverage extends to 1 year if your system is
installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this instruction
manual completely before beginning the process.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JL Audio XR570-CSi
Summary of Contents for JL Audio XR570-CSi
- Page 1 5 x 7-inch (125 x 180 mm) Component Speaker System o w n e r ’ s m a n u a l Thank you for choosing JL Audio Evolution XR Coaxials for your automotive sound system. With proper installation, your new speakers will deliver years of listening pleasure.
- Page 2 • Two 6.4 mm female crimpable connectors board.) Follow the white markings labeled • Two 4.7 mm female crimpable connectors • Four 2.8 mm male crimpable connectors “Standard” on the crossover cover. • Twelve crimpable spade connectors • Four black nylon wire ties JL AUDIO XR570-CSi...
- Page 3 BI-WIRE -1.5dB -3.0dB -4.5dB HIGH MID STANDARD NORMAL BI-WIRE LOW MID JL AUDIO Woofer XR650/ STANDARD 570-CS pxo Amplifier Twt+ Twt- Wfr- Wfr+ InH- InH+ InL- InL+ Output large terminal: (+) Tweeter small terminal: (–) Amplifier Output JL AUDIO XR570-CSi...
- Page 4 Lower mounting locations, such as the lower front corner of a door or a kick-panel provide the greatest path length distances for the sound emitted by the woofer. For this reason, they are generally more desirable than higher mounting locations. JL AUDIO XR570-CSi...
- Page 5 If you are unsure about any part of this simply by cutting the factory connector off and process, please contact your JL AUDIO dealer for using the supplied crimp connectors to terminate installation help.
- Page 6 Make sure that you do not attach the crossovers to a moving part or to any part that may interfere with pedal operation, gear shift operation, steering, or airbag deployment. For wiring instructions, refer to the diagram on pages 2 & 3 of this manual. JL AUDIO XR570-CSi...
- Page 7 Experiment with different angles until you arrive at the best solution. The swivel/rotation feature will not operate with the surface mount system. SURFACE MOUNT ASSEMBLY: FLUSH-MOUNT DISASSEMBLY: Use the supplied tools as shown to release the tweeter element from the flush-mount cup. JL AUDIO XR570-CSi...
- Page 8 (90) days from the original date of purchase. The warranty term is extended to one (1) year if installation is performed or approved by an authorized JL AUDIO dealer (proof of installation or approval required on purchase receipt).
