Toshiba Tecra A10-ST9017 Manual

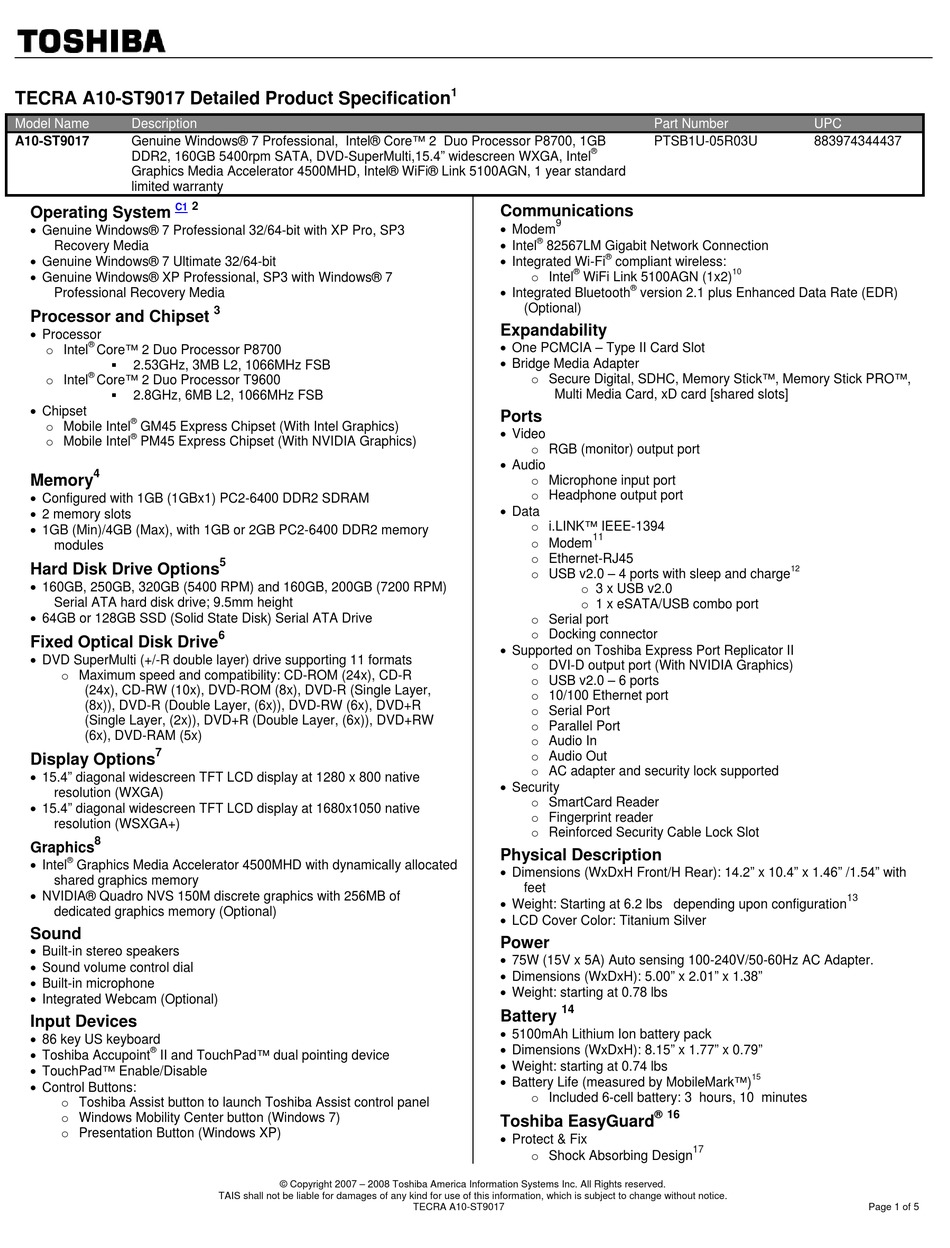

TECRA A10-ST9017 Detailed Product Specification
Model Name Description
A10-ST9017 Genuine Windows® 7 Professional, Intel® Core™ 2 Duo Processor P8700, 1GB
DDR2, 160GB 5400rpm SATA, DVD-SuperMulti,15.4" widescreen WXGA, Intel
Graphics Media Accelerator 4500MHD, Intel® WiFi® Link 5100AGN, 1 year standard
limited warranty
2
C1
Operating System
 Genuine Windows® 7 Professional 32/64-bit with XP Pro, SP3
Recovery Media
 Genuine Windows® 7 Ultimate 32/64-bit
 Genuine Windows® XP Professional, SP3 with Windows® 7
Professional Recovery Media
Processor and Chipset
 Processor
®
o Intel Core™ 2 Duo Processor P8700

2.53GHz, 3MB L2, 1066MHz FSB
®
o Intel Core™ 2 Duo Processor T9600

2.8GHz, 6MB L2, 1066MHz FSB
 Chipset
®
o Mobile Intel GM45 Express Chipset (With Intel Graphics)
®
o Mobile Intel PM45 Express Chipset (With NVIDIA Graphics)
4
Memory
 Configured with 1GB (1GBx1) PC2-6400 DDR2 SDRAM
 2 memory slots
 1GB (Min)/4GB (Max), with 1GB or 2GB PC2-6400 DDR2 memory
modules
Hard Disk Drive Options
 160GB, 250GB, 320GB (5400 RPM) and 160GB, 200GB (7200 RPM)
Serial ATA hard disk drive; 9.5mm height
 64GB or 128GB SSD (Solid State Disk) Serial ATA Drive
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (2x)), DVD+R (Double Layer, (6x)), DVD+RW
(6x), DVD-RAM (5x)
7
Display Options
 15.4" diagonal widescreen TFT LCD display at 1280 x 800 native
resolution (WXGA)
 15.4" diagonal widescreen TFT LCD display at 1680x1050 native
resolution (WSXGA+)
8
Graphics
 Intel
®
Graphics Media Accelerator 4500MHD with dynamically allocated
shared graphics memory
 NVIDIA® Quadro NVS 150M discrete graphics with 256MB of
dedicated graphics memory (Optional)
Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone
 Integrated Webcam (Optional)
Input Devices
 86 key US keyboard
 Toshiba Accupoint
®
II and TouchPad™ dual pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button (Windows 7)
o Presentation Button (Windows XP)
3
5
6
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
®
Communications
9
 Modem
 Intel
®
82567LM Gigabit Network Connection
 Integrated Wi-Fi
®
o Intel WiFi Link 5100AGN (1x2)
 Integrated Bluetooth
(Optional)
Expandability
 One PCMCIA – Type II Card Slot
 Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD card [shared slots]
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports with sleep and charge
o 3 x USB v2.0
o 1 x eSATA/USB combo port
o Serial port
o Docking connector
 Supported on Toshiba Express Port Replicator II
o DVI-D output port (With NVIDIA Graphics)
o USB v2.0 – 6 ports
o 10/100 Ethernet port
o Serial Port
o Parallel Port
o Audio In
o Audio Out
o AC adapter and security lock supported
 Security
o SmartCard Reader
o Fingerprint reader
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 14.2" x 10.4" x 1.46" /1.54" with
feet
 Weight: Starting at 6.2 lbs depending upon configuration
 LCD Cover Color: Titanium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.38"
 Weight: starting at 0.78 lbs
14
Battery
 5100mAh Lithium Ion battery pack
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 0.74 lbs
 Battery Life (measured by MobileMark™)
o Included 6-cell battery: 3 hours, 10 minutes
Toshiba EasyGuard
 Protect & Fix
o Shock Absorbing Design
TECRA A10-ST9017
Part Number
PTSB1U-05R03U
®
compliant wireless:
10
®
version 2.1 plus Enhanced Data Rate (EDR)
11
15
16
®
17
UPC
883974344437
12
13
