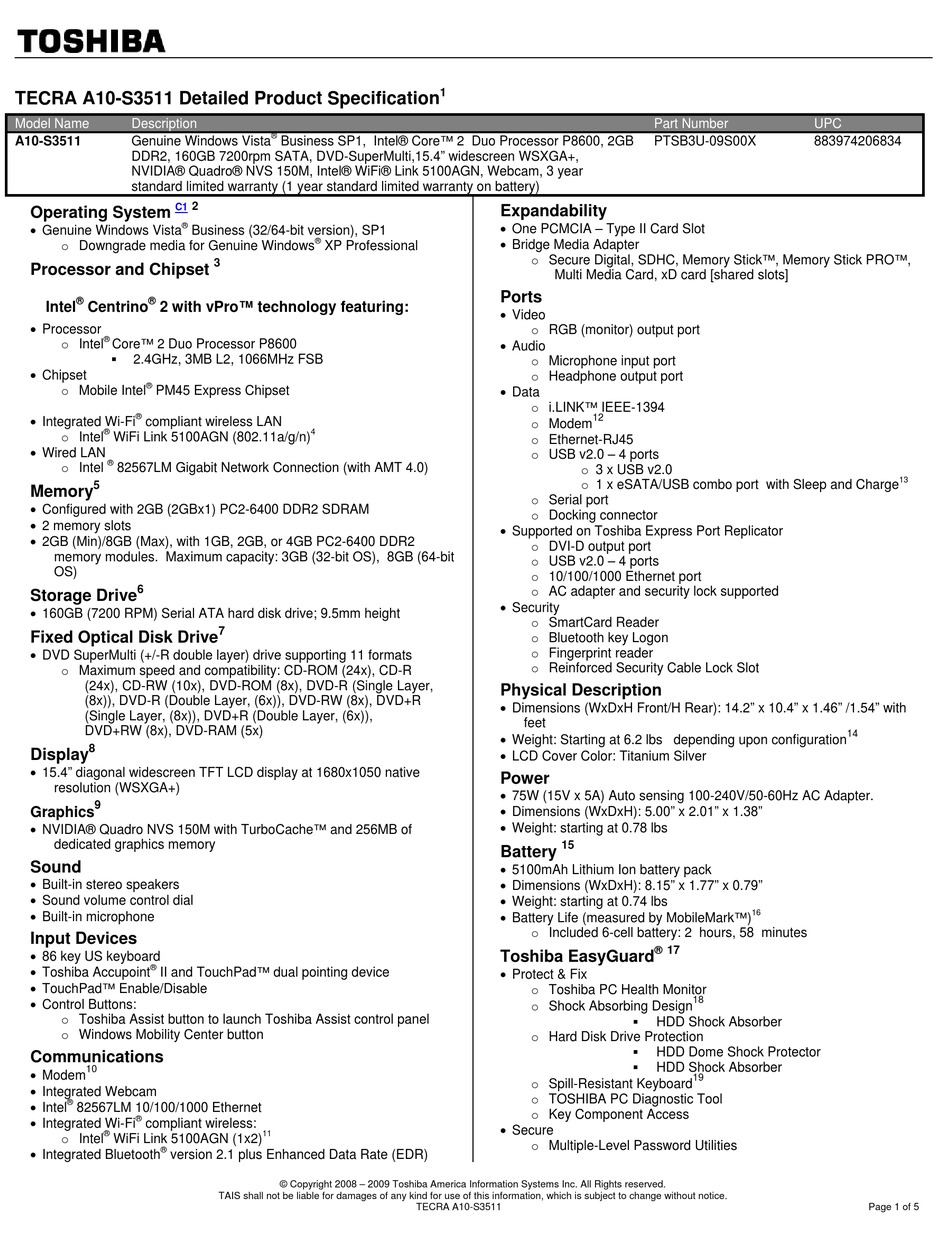

TECRA A10-S3511 Detailed Product Specification
Model Name
Description
A10-S3511
Genuine Windows Vista
DDR2, 160GB 7200rpm SATA, DVD-SuperMulti,15.4" widescreen WSXGA+,
NVIDIA® Quadro® NVS 150M, Intel® WiFi® Link 5100AGN, Webcam, 3 year
standard limited warranty (1 year standard limited warranty on battery)
2
C1
Operating System
Genuine Windows Vista
®
Business (32/64-bit version), SP1
o Downgrade media for Genuine Windows
Processor and Chipset
®
®
Intel
Centrino
2 with vPro™ technology featuring:
Processor
®
o Intel
Core™ 2 Duo Processor P8600
2.4GHz, 3MB L2, 1066MHz FSB
Chipset
®
o Mobile Intel
PM45 Express Chipset
Integrated Wi-Fi
®
compliant wireless LAN
®
o Intel
WiFi Link 5100AGN (802.11a/g/n)
Wired LAN
®
o Intel
82567LM Gigabit Network Connection (with AMT 4.0)
5
Memory
Configured with 2GB (2GBx1) PC2-6400 DDR2 SDRAM
2 memory slots
2GB (Min)/8GB (Max), with 1GB, 2GB, or 4GB PC2-6400 DDR2
memory modules. Maximum capacity: 3GB (32-bit OS), 8GB (64-bit
OS)
6
Storage Drive
160GB (7200 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (8x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)),
DVD+RW (8x), DVD-RAM (5x)
8
Display
15.4" diagonal widescreen TFT LCD display at 1680x1050 native
resolution (WSXGA+)
9
Graphics
NVIDIA® Quadro NVS 150M with TurboCache™ and 256MB of
dedicated graphics memory
Sound
Built-in stereo speakers
Sound volume control dial
Built-in microphone
Input Devices
86 key US keyboard
Toshiba Accupoint
®
II and TouchPad™ dual pointing device
TouchPad™ Enable/Disable
Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button
Communications
10
Modem
Integrated Webcam
Intel
®
82567LM 10/100/1000 Ethernet
Integrated Wi-Fi
®
compliant wireless:
®
o Intel
WiFi Link 5100AGN (1x2)
Integrated Bluetooth
®
version 2.1 plus Enhanced Data Rate (EDR)
®
Business SP1, Intel® Core™ 2 Duo Processor P8600, 2GB
®
XP Professional
3
4
7
11
© Copyright 2008 – 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
Expandability
One PCMCIA – Type II Card Slot
Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD card [shared slots]
Ports
Video
o RGB (monitor) output port
Audio
o Microphone input port
o Headphone output port
Data
o i.LINK™ IEEE-1394
12
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports
o 3 x USB v2.0
o 1 x eSATA/USB combo port with Sleep and Charge
o Serial port
o Docking connector
Supported on Toshiba Express Port Replicator
o DVI-D output port
o USB v2.0 – 4 ports
o 10/100/1000 Ethernet port
o AC adapter and security lock supported
Security
o SmartCard Reader
o Bluetooth key Logon
o Fingerprint reader
o Reinforced Security Cable Lock Slot
Physical Description
Dimensions (WxDxH Front/H Rear): 14.2" x 10.4" x 1.46" /1.54" with
feet
Weight: Starting at 6.2 lbs depending upon configuration
LCD Cover Color: Titanium Silver
Power
75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
Dimensions (WxDxH): 5.00" x 2.01" x 1.38"
Weight: starting at 0.78 lbs
15
Battery
5100mAh Lithium Ion battery pack
Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
Weight: starting at 0.74 lbs
Battery Life (measured by MobileMark™)
o Included 6-cell battery: 2 hours, 58 minutes
Toshiba EasyGuard
Protect & Fix
o Toshiba PC Health Monitor
o Shock Absorbing Design
o Hard Disk Drive Protection
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
o Key Component Access
Secure
o Multiple-Level Password Utilities
TECRA A10-S3511
Part Number
PTSB3U-09S00X
16
®
17
18
HDD Shock Absorber
HDD Dome Shock Protector
HDD Shock Absorber
19
UPC
883974206834
13
14
Page 1 of 5
