Toshiba Tecra A10-S3553 Specifications

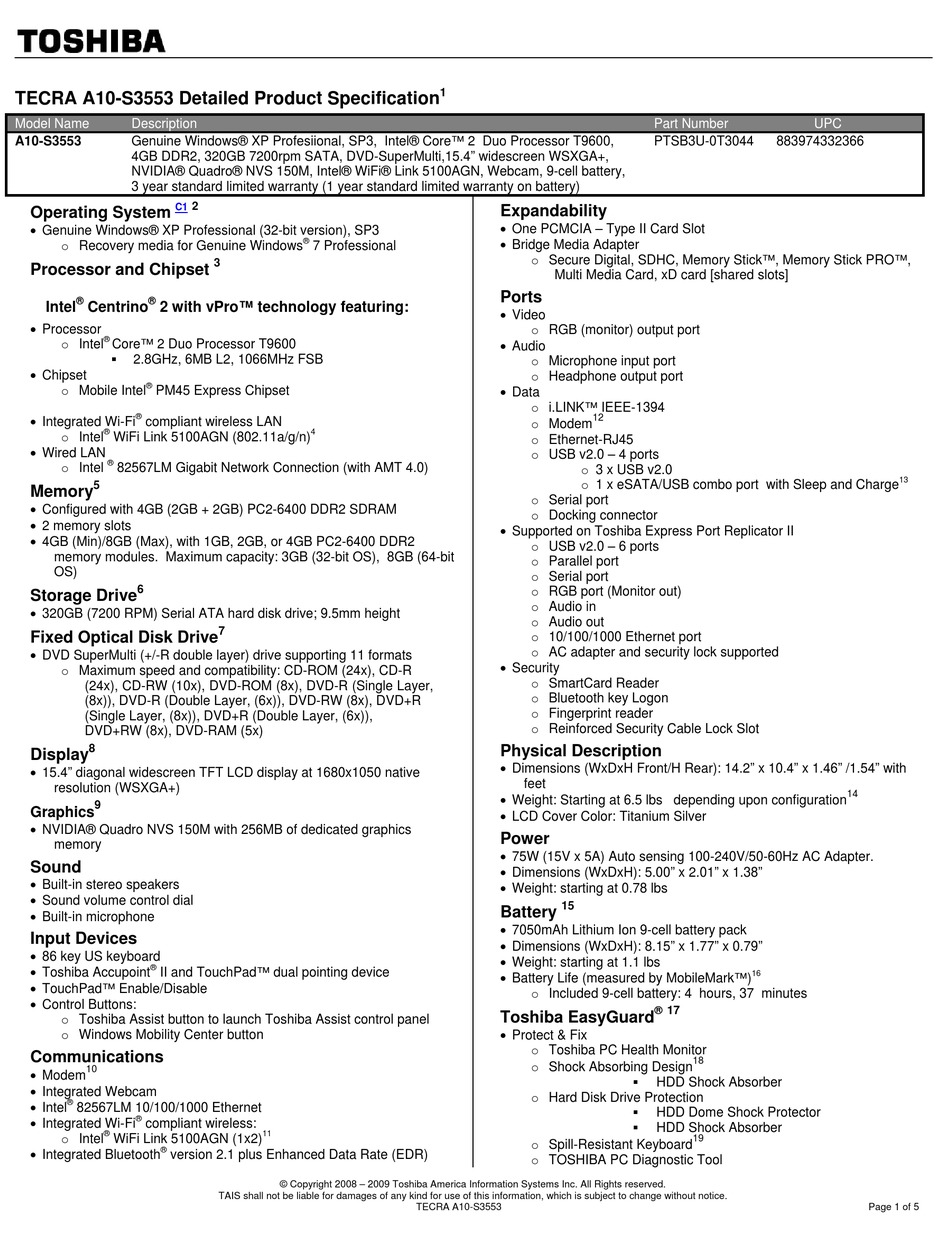

TECRA A10-S3553 Detailed Product Specification
Model Name Description
A10-S3553 Genuine Windows® XP Profesiional, SP3, Intel® Core™ 2 Duo Processor T9600,
4GB DDR2, 320GB 7200rpm SATA, DVD-SuperMulti,15.4" widescreen WSXGA+,
NVIDIA® Quadro® NVS 150M, Intel® WiFi® Link 5100AGN, Webcam, 9-cell battery,
3 year standard limited warranty (1 year standard limited warranty on battery)
2
C1
Operating System
 Genuine Windows® XP Professional (32-bit version), SP3
o Recovery media for Genuine Windows
Processor and Chipset
® ®
Intel Centrino 2 with vPro™ technology featuring:
 Processor
®
o Intel Core™ 2 Duo Processor T9600

2.8GHz, 6MB L2, 1066MHz FSB
 Chipset
®
o Mobile Intel PM45 Express Chipset
 Integrated Wi-Fi ®
compliant wireless LAN
®
o Intel WiFi Link 5100AGN (802.11a/g/n)
 Wired LAN
®
o Intel 82567LM Gigabit Network Connection (with AMT 4.0)
5
Memory
 Configured with 4GB (2GB + 2GB) PC2-6400 DDR2 SDRAM
 2 memory slots
 4GB (Min)/8GB (Max), with 1GB, 2GB, or 4GB PC2-6400 DDR2
memory modules. Maximum capacity: 3GB (32-bit OS), 8GB (64-bit
OS)
6
Storage Drive
 320GB (7200 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (8x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)),
DVD+RW (8x), DVD-RAM (5x)
8
Display
 15.4" diagonal widescreen TFT LCD display at 1680x1050 native
resolution (WSXGA+)
9
Graphics
 NVIDIA® Quadro NVS 150M with 256MB of dedicated graphics
memory
Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone
Input Devices
 86 key US keyboard
 Toshiba Accupoint ®
II and TouchPad™ dual pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button
Communications
10
 Modem
 Integrated Webcam
 Intel ®
82567LM 10/100/1000 Ethernet
 Integrated Wi-Fi ®
compliant wireless:
®
o Intel WiFi Link 5100AGN (1x2)
 Integrated Bluetooth
®
version 2.1 plus Enhanced Data Rate (EDR)
®
7 Professional
3
4
7
11
© Copyright 2008 – 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
Expandability
 One PCMCIA – Type II Card Slot
 Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD card [shared slots]
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
12
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports
o 3 x USB v2.0
o 1 x eSATA/USB combo port with Sleep and Charge
o Serial port
o Docking connector
 Supported on Toshiba Express Port Replicator II
o USB v2.0 – 6 ports
o Parallel port
o Serial port
o RGB port (Monitor out)
o Audio in
o Audio out
o 10/100/1000 Ethernet port
o AC adapter and security lock supported
 Security
o SmartCard Reader
o Bluetooth key Logon
o Fingerprint reader
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 14.2" x 10.4" x 1.46" /1.54" with
feet
 Weight: Starting at 6.5 lbs depending upon configuration
 LCD Cover Color: Titanium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.38"
 Weight: starting at 0.78 lbs
15
Battery
 7050mAh Lithium Ion 9-cell battery pack
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 1.1 lbs
 Battery Life (measured by MobileMark™)
o Included 9-cell battery: 4 hours, 37 minutes
Toshiba EasyGuard
 Protect & Fix
o Toshiba PC Health Monitor
o Shock Absorbing Design
o Hard Disk Drive Protection
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
TECRA A10-S3553
Part Number
PTSB3U-0T3044 883974332366
16
17
®
18

HDD Shock Absorber

HDD Dome Shock Protector

HDD Shock Absorber
19
UPC
13
14
Page 1 of 5
