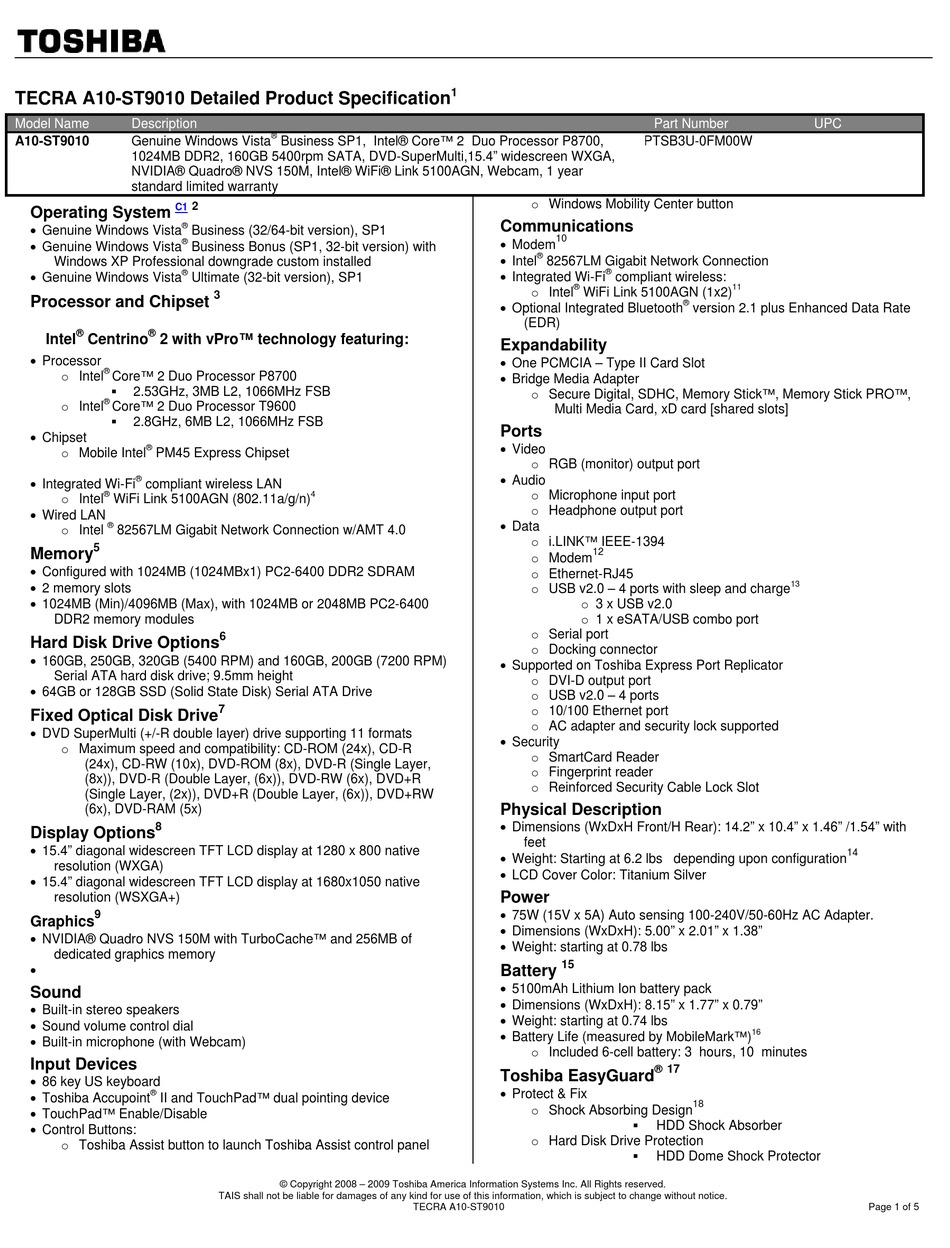

Toshiba Tecra A10-ST9010 Specification Sheet

TECRA A10-ST9010 Detailed Product Specification
Model Name Description
A10-ST9010 Genuine Windows Vista
1024MB DDR2, 160GB 5400rpm SATA, DVD-SuperMulti,15.4" widescreen WXGA,
NVIDIA® Quadro® NVS 150M, Intel® WiFi® Link 5100AGN, Webcam, 1 year
standard limited warranty
2
C1
Operating System
 Genuine Windows Vista ®
Business (32/64-bit version), SP1
 Genuine Windows Vista ®
Business Bonus (SP1, 32-bit version) with
Windows XP Professional downgrade custom installed
 Genuine Windows Vista
®
Ultimate (32-bit version), SP1
Processor and Chipset
® ®
Intel Centrino 2 with vPro™ technology featuring:
 Processor
®
o Intel Core™ 2 Duo Processor P8700

2.53GHz, 3MB L2, 1066MHz FSB
®
o Intel Core™ 2 Duo Processor T9600

2.8GHz, 6MB L2, 1066MHz FSB
 Chipset
®
o Mobile Intel PM45 Express Chipset
 Integrated Wi-Fi
®
compliant wireless LAN
®
o Intel WiFi Link 5100AGN (802.11a/g/n)
 Wired LAN
®
o Intel 82567LM Gigabit Network Connection w/AMT 4.0
5
Memory
 Configured with 1024MB (1024MBx1) PC2-6400 DDR2 SDRAM
 2 memory slots
 1024MB (Min)/4096MB (Max), with 1024MB or 2048MB PC2-6400
DDR2 memory modules
Hard Disk Drive Options
 160GB, 250GB, 320GB (5400 RPM) and 160GB, 200GB (7200 RPM)
Serial ATA hard disk drive; 9.5mm height
 64GB or 128GB SSD (Solid State Disk) Serial ATA Drive
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (2x)), DVD+R (Double Layer, (6x)), DVD+RW
(6x), DVD-RAM (5x)
8
Display Options
 15.4" diagonal widescreen TFT LCD display at 1280 x 800 native
resolution (WXGA)
 15.4" diagonal widescreen TFT LCD display at 1680x1050 native
resolution (WSXGA+)
9
Graphics
 NVIDIA® Quadro NVS 150M with TurboCache™ and 256MB of
dedicated graphics memory

Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone (with Webcam)
Input Devices
 86 key US keyboard
 Toshiba Accupoint
®
II and TouchPad™ dual pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
®
Business SP1, Intel® Core™ 2 Duo Processor P8700,
3
4
6
7
© Copyright 2008 – 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
o Windows Mobility Center button
Communications
10
 Modem
 Intel
®
82567LM Gigabit Network Connection
 Integrated Wi-Fi
®
o Intel WiFi Link 5100AGN (1x2)
 Optional Integrated Bluetooth
(EDR)
Expandability
 One PCMCIA – Type II Card Slot
 Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD card [shared slots]
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports with sleep and charge
o 3 x USB v2.0
o 1 x eSATA/USB combo port
o Serial port
o Docking connector
 Supported on Toshiba Express Port Replicator
o DVI-D output port
o USB v2.0 – 4 ports
o 10/100 Ethernet port
o AC adapter and security lock supported
 Security
o SmartCard Reader
o Fingerprint reader
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 14.2" x 10.4" x 1.46" /1.54" with
feet
 Weight: Starting at 6.2 lbs depending upon configuration
 LCD Cover Color: Titanium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.38"
 Weight: starting at 0.78 lbs
15
Battery
 5100mAh Lithium Ion battery pack
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 0.74 lbs
 Battery Life (measured by MobileMark™)
o Included 6-cell battery: 3 hours, 10 minutes
Toshiba EasyGuard
 Protect & Fix
o Shock Absorbing Design
o Hard Disk Drive Protection
TECRA A10-ST9010
Part Number
PTSB3U-0FM00W
®
compliant wireless:
11
®
version 2.1 plus Enhanced Data Rate
12
16
17
®
18

HDD Shock Absorber

HDD Dome Shock Protector
UPC
13
14
Page 1 of 5
