5

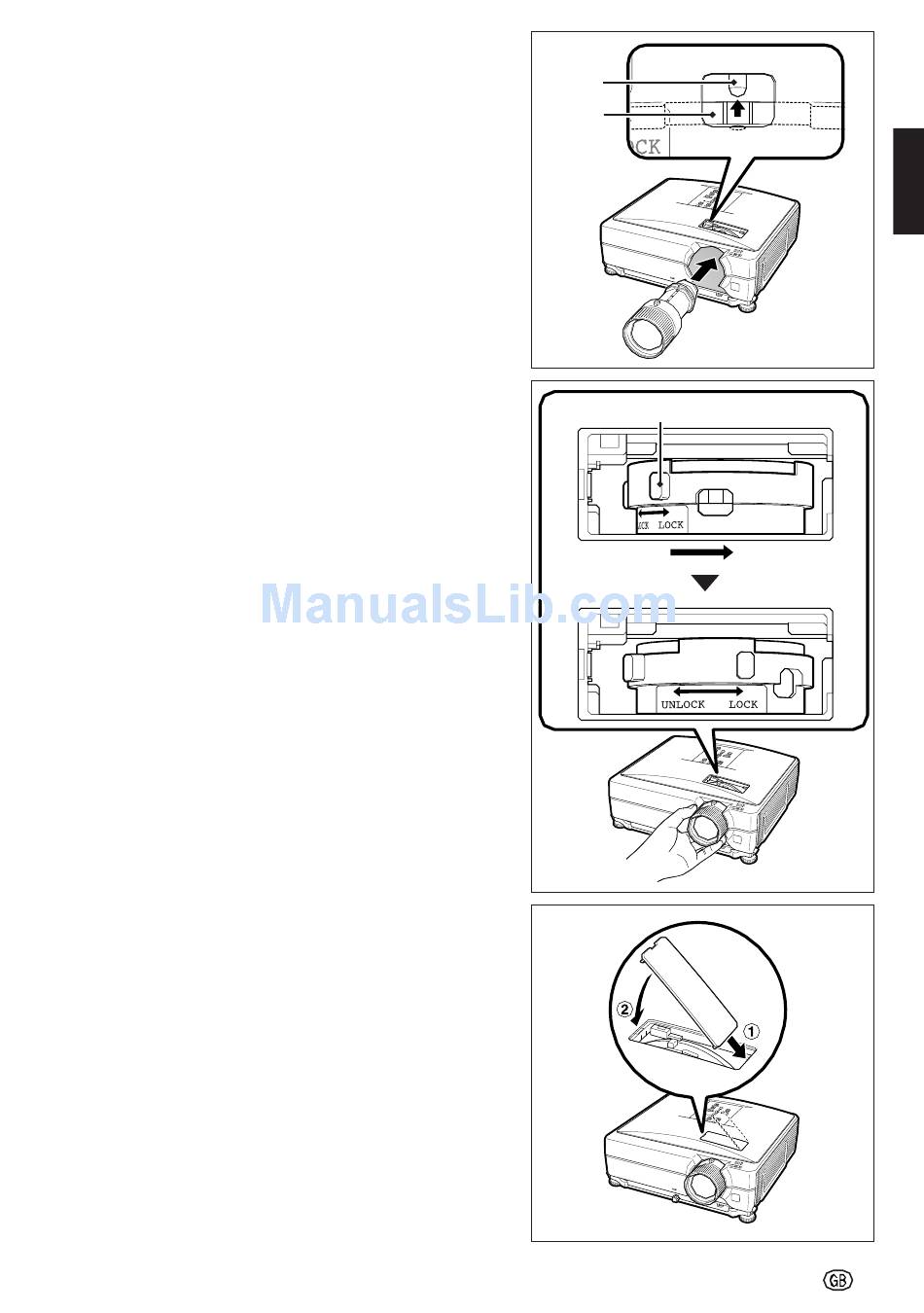

Insert the lens into the projector.
• As you insert the lens, look inside the win-
dow to make sure that the pin is inserted
into the hole of the lens mount.
6
Slide the lens fastener catch tab in the
direction of "LOCK" until it stops.
• Be careful not to rotate the lens fastener
ring too tight, as the lens fastener ring will
be difficult to loosen the next time the lens
is changed.
7
Replace the lens housing cover.
• If the lens housing cover is not secured to
the projector, you will not be able to turn
the power on.
Pin
Lens
mount
Lens fastener catch tab
-2
