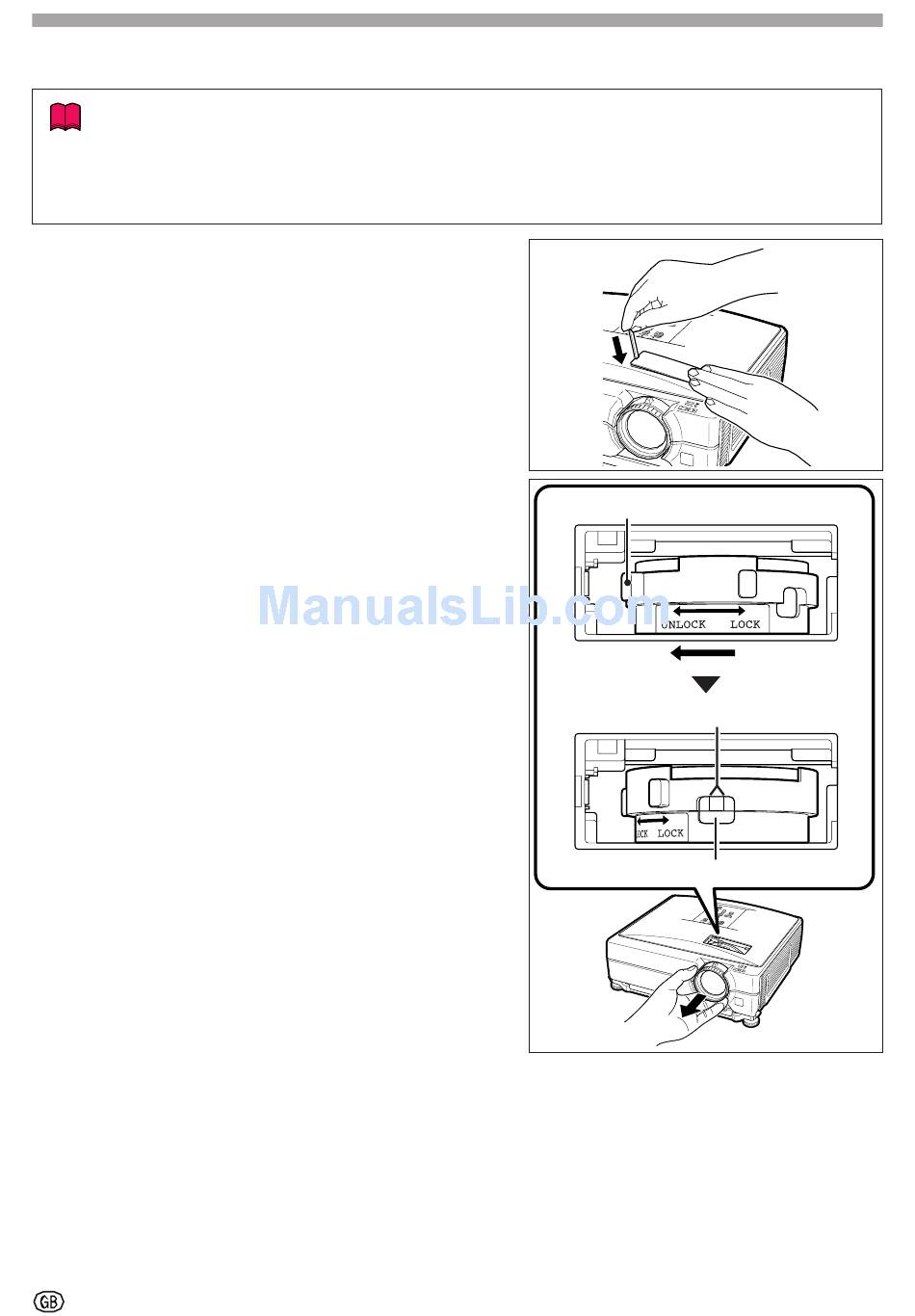

Changing the Lens

Info
• Before changing the lens, turn off the power of the projector and remove the power cord
from the wall outlet.
• Do not attempt to change the lens while the projector is mounted on the ceiling.
1
Remove the lens housing cover by us-
ing the supplied lens housing cover re-
moval tool to push down on the groove
on the lens housing cover.
• Hold down the lens housing cover with your
hand to prevent it from flying out.
2
Slide the lens fastener catch tab in the
direction of "UNLOCK" while holding the
lens to prevent it from falling out.
• Slide the lens fastener catch tab until the
window located beside "LOCK" comes to
the top. Look inside the window to make
sure that the two grooves on the lens
fastener ring are facing up.
3
Remove the lens by pulling it straight out.
4
Remove the protection cap from the back
of the new lens.
-1
Lens fastener catch tab
Two grooves
Window
