Rear view

1

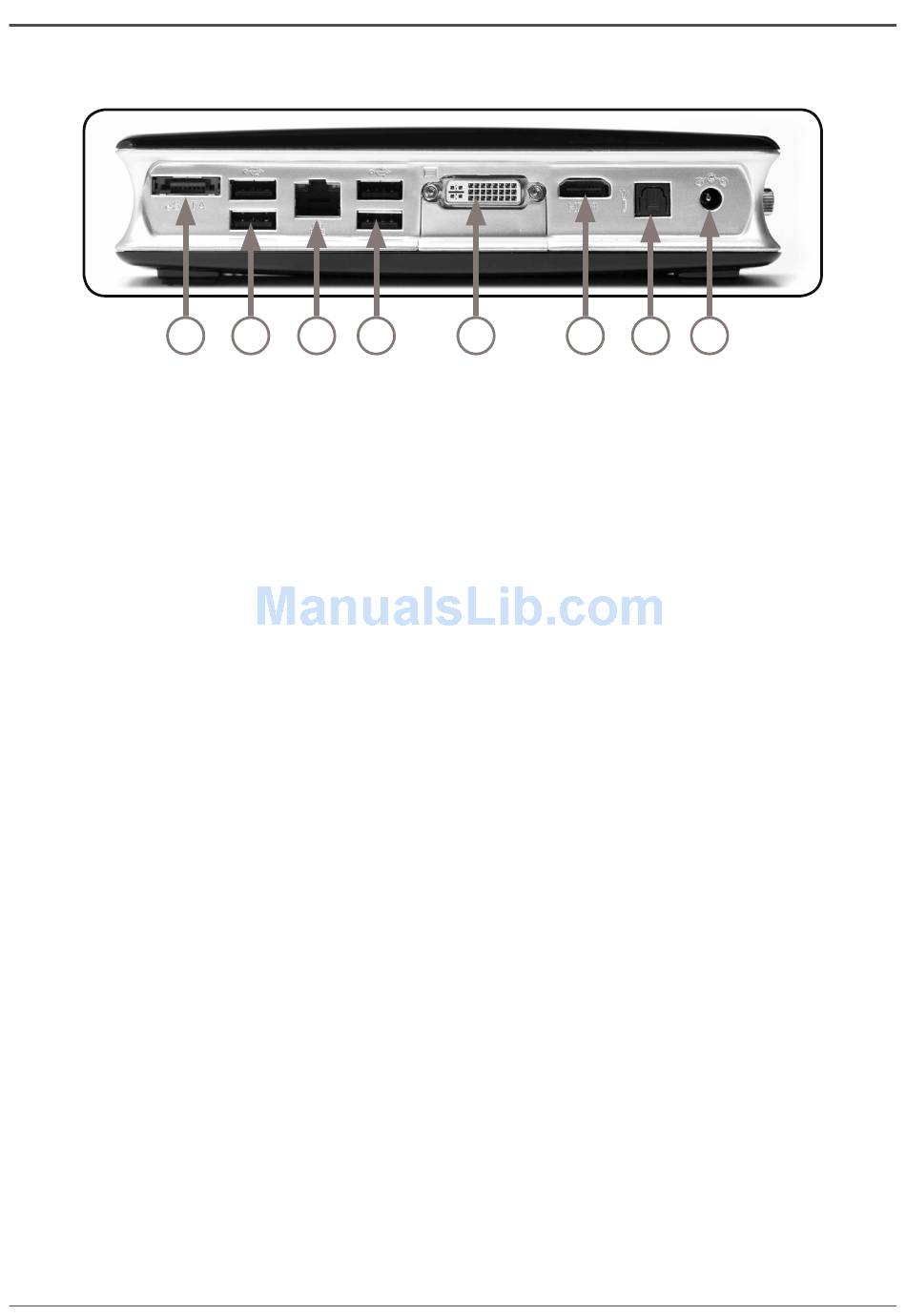

Refer to the diagram below to identify the components on this side of the system.
1. eSATA port
The external SATA port is compatible with e.SATA devices such as external hard
drives and Blu-ray drives.
2. USB ports
The USB (Universal Serial Bus) ports are compatible with USB devices such as
keyboards, mouse devices, cameras and hard disk drives. USB allows many
devices to run simultaneously on a single computer, with some peripheral acting as
additional plug-in sites or hubs.
Note:The two USB ports beside eSATA port do not support wake up function.
3. LAN port
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to
a local network.
4. DVI port
The DVI port supports connection to analog monitors and displays.
5. HDMI port
The HDMI (High Definition Multimedia Interface) port supports a Full-HD device
such as an LCD TV or monitor to allow viewing on a larger external display.
6. Optical (S/PDIF OUT) jack
Plug an optical cable into this jack for digital audio transfer.
7. Power input (DC19V)
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage to
the PC, always use the supplied power adapter.
Note:The power adapter may become warm to hot when in use. Do not cover the adapter and keep it
away from your body.
