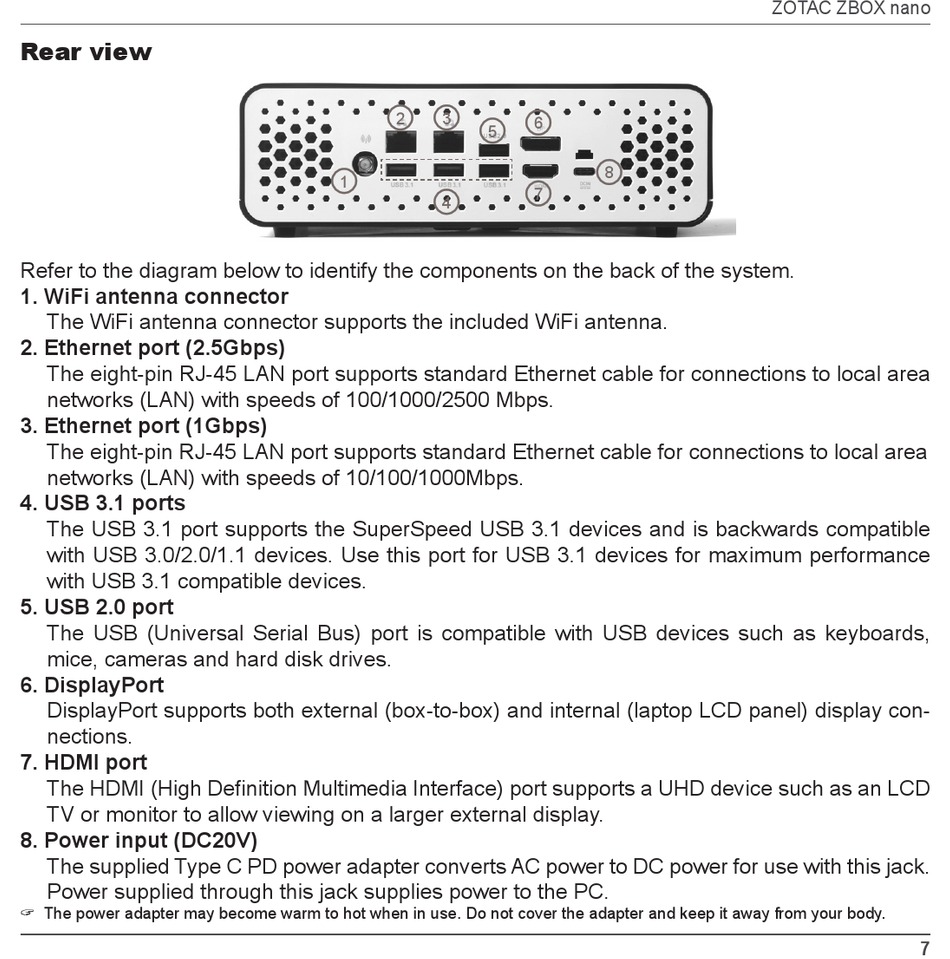

Rear view

Refer to the diagram below to identify the components on the back of the system.
1. WiFi antenna connector
The WiFi antenna connector supports the included WiFi antenna.
2. Ethernet port (2.5Gbps)
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area
networks (LAN) with speeds of 100/1000/2500 Mbps.
3. Ethernet port (1Gbps)
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area
networks (LAN) with speeds of 10/100/1000Mbps.
4. USB 3.1 ports
The USB 3.1 port supports the SuperSpeed USB 3.1 devices and is backwards compatible
with USB 3.0/2.0/1.1 devices. Use this port for USB 3.1 devices for maximum performance
with USB 3.1 compatible devices.
5. USB 2.0 port
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,
mice, cameras and hard disk drives.
6. DisplayPort
DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display con-
nections.
7. HDMI port
The HDMI (High Definition Multimedia Interface) port supports a UHD device such as an LCD
TV or monitor to allow viewing on a larger external display.
8. Power input (DC20V)
The supplied Type C PD power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the PC.
 The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.
