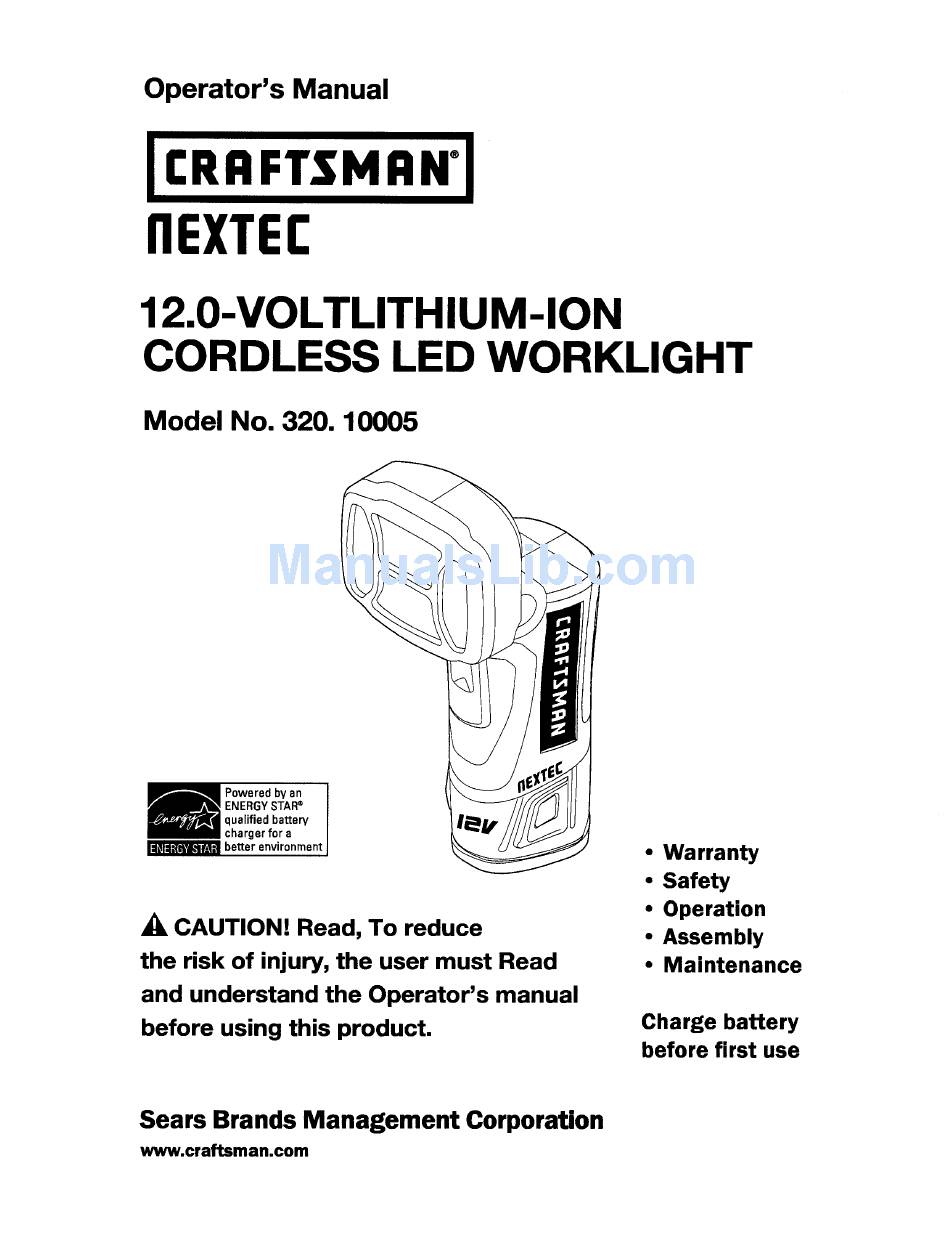

Operator's Manual
II:RRFTSMRN°I
flEXTEC
12.0-VOLTLITHIUM-ION
CORDLESS LED WORKLIGHT
Model No. 320. 10005
Powered by an
I
ENERGY STAR ®
I
qualified battery
charger for a
II_I=I=IW_qlIM:! b etter environment
CAUTION! Read, To reduce
the risk of injury, the user must Read
and understand the Operator's
manual
before using this product.
• Warranty
• Safety
• Operation
• Assembly
• Maintenance
Charge battery
before first use
Sears Brands Management
Corporation
www.craftsman.com

Advertisement

Table of Contents
loading

Related Manuals for Craftsman nextec 320.10005

Summary of Contents for Craftsman nextec 320.10005

  • Page 1 • Warranty • Safety • Operation CAUTION! Read, To reduce • Assembly the risk of injury, the user must Read • Maintenance and understand the Operator's manual Charge battery before using this product. before first use Sears Brands Management Corporation www.craftsman.com...

  • Page 2: One Year Full Warranty

    Exploded View and Parts List Page 20-21 Sears Repair Parts Phone Number Back Cover ONE YEAR FULL WARRANTY ON CRAFTSMAN® TOOL If this Craftsman tool fails to give complete satisfaction within one year from the date of purchase, return it to any Sears store or Parts & Repair...
  • Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention...
  • Page 4 SYMBOL NAME D ESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) Watt Power Minutes Time Alternating Current Type of current ----'= Direct Current Type or a characteristic of current No Load Speed Rotational speed, at no load Class II construction Double-insulated construction .../min Per Minute...
  • Page 5 _I, WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. The term "power tool" in all of the warnings below refers to corded power tools or battery-operated (cordless) power tools.
  • Page 6 Keep the Worklight dry, clean and free from oiil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum- based products, or any strong solvent to clean the Worklight. Do not expose the Worklight to rain or wet conditions. Water entering the Worklight will increase the risk of electric shock.
  • Page 7 • If devices are provided for the connection of dust extraction collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards. Use clamps or another practical way to secure and support the work- piece to a stable platform.
  • Page 8 to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Hold power tools by insulated gripping surfaces when performing operation where the cutting tool may contact hidden wiring or its own cord.

  • Page 9: Safety Rules For Worklight

    Batteries vent hydrogen gas and can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals.
  • Page 10 battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately. Batteries vent hydrogen gas and can explode in the presence of a source of ignition such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame.
  • Page 11 Water entering the charger will increase the risk of electric shock. Use of an attachment not recommended or sold by the battery-charger manufacturer may result in a risk of fire, electric shock or injury to persons. Do not abuse the cord or charger. Never use the cord to carry the charger.

  • Page 12: Important Safety Instructions

    maintenance or cleaning to reduce the risk of electric shock. Disconnect the charger from the power supply when not in use. This will reduce the risk of electric shock or damage to the charger if metal items should fall into the opening. It will also help prevent damage to the charger during a power surge.

  • Page 13: Specifications

    EXTENDED RUN-TIME Up to 5 hours of illumination from a fully-charged battery pack. Fig. 1 Torch head Handle Switch Battery-release button Battery pack PRODUCT SPECIFICATIONS Illumination Source 24 Light Emitting Diodes (LED) Head Pivot 135 ° Bulb Power 12V 240mA Run-time Approximately 5 hrs.
  • Page 14 WARNING: If any part is broken or missing, do not attempt to operate the worklight until the broken or missing part is replaced. Failure to do so could result in possible serious injury. WARNING: Do not attempt to modify this worklight or create accessories recommended for use with this worklight.

  • Page 15: When To Charge

    tool and use the tool in a light application. After about a minute, the battery pack will have warmed itself up and will operate normally. WHEN TO CHARGE THE BATTERY PACK It is not necessary to run down Fig. 2 the battery pack charge before recharging.
  • Page 16 NOTE: For your convenience, the charger can operate with most generators inverters rated at 300 watts or higher. LED FUNCTIONS OF CHARGER (Fig. 3) BATTERY GREEN LED INDICATOR ACTION PACK Charging will begin Hot/Cold when battery returns to HI/LO TEMP. O"...

  • Page 17: Battery Charging

    BATTERY CHARGING If the battery pack is being charged within a normal surrounding temperature range (32 ° F to 104 ° F), the green LED will begin flashing and the red LED will be off. The battery pack will reach a full charge in 30 minutes. BATTERY FULL If the battery pack is within normal temperature...
  • Page 18 135 ° pivot range. Do not force the head beyond the 135 ° range. WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other parts may create a hazard or cause product damage. _i_ WARNING:...

  • Page 19: Maintenance

    GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING: Do not at any time let brake fluids, gasoline, petroleum- based products, penetrating...
  • Page 20 Also, never touch the terminals with metal objects and/or body parts as a short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury. 12.0 VOLT LITHIUM-ION CORDLESS LED WORKLIGHT MODEL NUMBER 320.10005...
  • Page 21 3124231000 Led Cover 3124229000 Transparent Guard 3704266000 Reflector 5610005000 Tapping Screw 3124230000 Right Indicator Cover 5690128000 O Ring 3124233000 Connecting Lever 3320706000 Right Handle Assy 4870384000 Push Switch 3704254000 Handle Hoop 3660010000 Spring 3124232000 Switch Button 220018000 5307 Charger Tools 2770153000 5120 Power Pack 3402298000...
  • Page 22 10005 Manual_Revised_08-0724 Page 22...
  • Page 23 10005 Manual_Revised_08-0724 Page 23...
  • Page 24 Your Home For expert troubleshooting and home solutions advice: manage home www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it ! For the replacement parts, accessories and owner's manuals that you need to do-it-yourself.
