BATTERY CHARGING
If the battery pack is being charged within a normal surrounding temperature
range (32 ° F to 104 ° F), the green LED will begin flashing and the red LED will be
off. The battery pack will reach a full charge in 30 minutes.
BATTERY FULL
If the battery pack is within normal temperature range, the green LED will
illuminate and the red LED will be off. The battery pack is fully charged and
ready to use. The battery pack will fully charge, but will not overcharge, if left on
the charger.
NOTE: Charger may warm with several continuous charge cycles. This is part of
the normal operation of the charge. Charge in a well ventilated area.

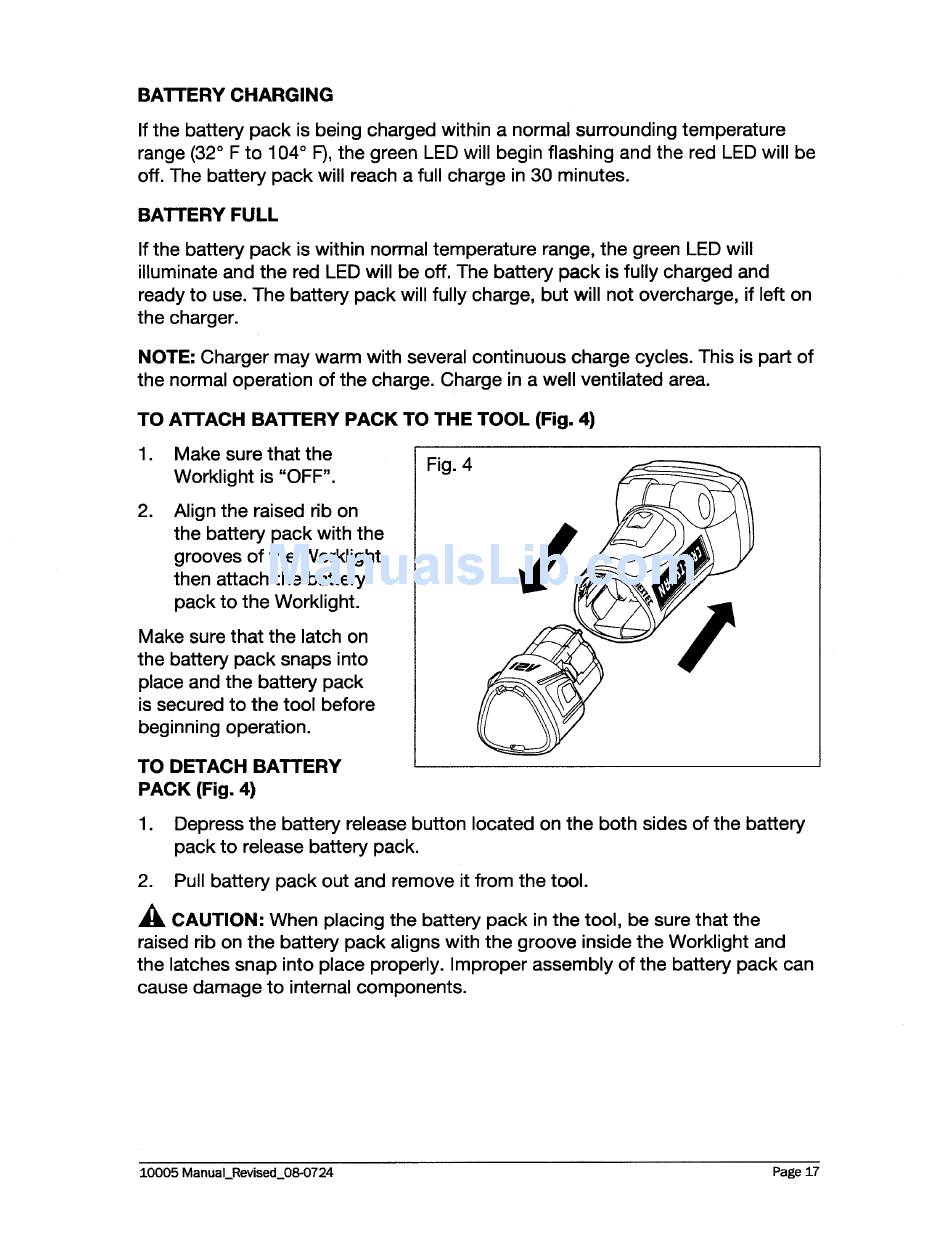

TO ATTACH BATTERY PACK TO THE TOOL (Fig. 4)
1. Make sure that the
Worklight is "OFF".
.
Align the raised rib on
the battery pack with the
grooves of the Worklight,
then attach the battery
pack to the Worklight.
Make sure that the latch on
the battery pack snaps into
place and the battery pack
is secured to the tool before
beginning operation.
Fig. 4
/
TO DETACH BATTERY
PACK (Fig. 4)
1. Depress the battery release button located on the both sides of the battery
pack to release battery pack.
2. Pull battery pack out and remove it from the tool.
CAUTION: When placing the battery pack in the tool, be sure that the
raised rib on the battery pack aligns with the groove inside the Worklight and
the latches snap into place properly. Improper assembly of the battery pack can
cause damage to internal components.
10005 Manual_Revised_08-0724 Page 17
