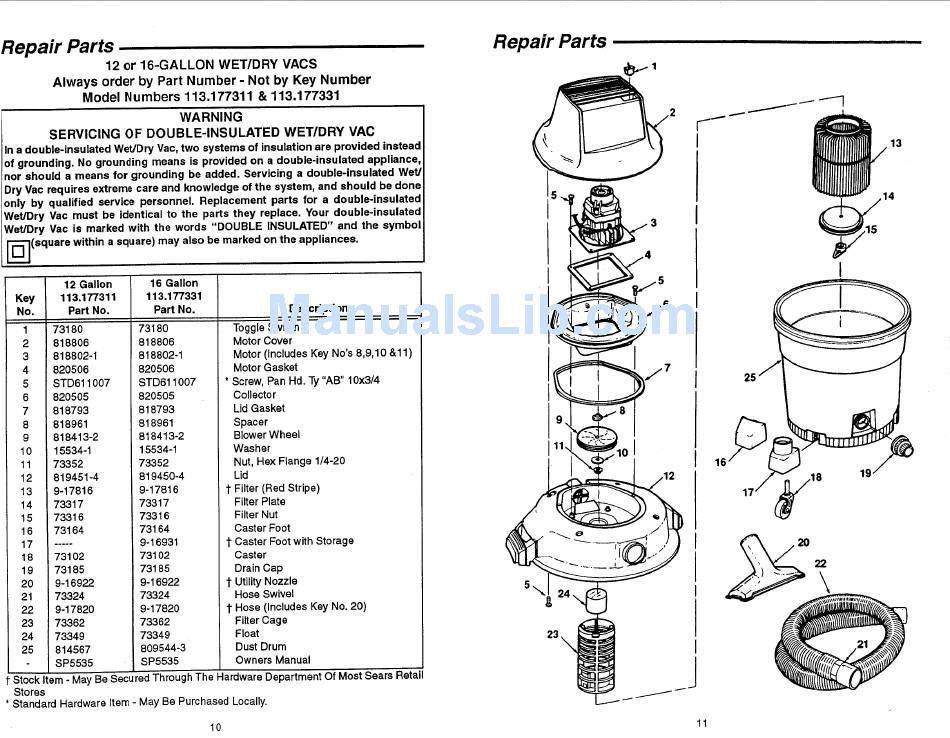

Repair Parts - Craftsman 113.177311 Owner's Manual

12 or 16 gallon full blowing wet/dry vac
Hide thumbs

1
2
3
4
5
6
7

Advertisement

Repair Parts
12 or 16-GALLON
WET/DRY
VACS
Always
order by Part Number - Not by Key Number
Model Numbers
113.177311
& 113.177331
WARNING
SERVICING
OF DOUBLE-INSULATED
WET/DRY
VAC
In a double-insulated
Wet/Dry Vac, two systems of insulation are provided instead
of grounding. No grounding means is provided on a double-insulated
appliance,
nor should a means for grounding be added. Servicing a double-insulated
Wet/
Dry Vac requires extreme care and knowledge of the system, and should be done
only by qualified service personnel.
Replacement
parts for a double-insulated
Wet/Dry Vac must be identical to the parts they replace. Your double-insulated
Wet/Dry Vac is marked with the words "DOUBLE
INSULATED"
and the symbol
(square within a square) may also be marked on the appliances.
12 Gallon
Key
113.177311
No.
Part No.
1
73180
2
818806
3
818802-1
4
820506
5
STD611007
6
820505
7
818793
8
818961
9
818413-2
10
15534-1
11
73352
12
819451-4
13
9-17816
14
73317
15
73316
16
73164
17
.....
18
73102
19
73185
20
9-16922
21
73324
22
9-17820
23
73362
24
73349
25
814567
SP5535
16 Gallon
113.177331
Part No.
73180
818806
818802-1
820506
STD611007
820505
818793
818961
.818413-2
15534-1
73352
819450-4
9-17816
t
Description
Toggle Switch
Motor Cover
Motor (Includes Key No's 8,9,10 &l 1)
Motor Gasket
* Screw, Pan Hd. Ty "AB" 10x3/4
Collector
Lid Gasket
Spacer
Blower Wheel
Washer
Nut, Hex Flange 1/4-20
Lid
Filter (Red Stripe)
73317
73316
73164
9-16931
73102
73185
9-16922
73324
9-17820
73362
73349
809544-3
SP5535
Filter Plate
Filter Nut
Caster Foot
t Caster Foot with Storage
Caster
Drain Cap
t Utility Nozzle
Hose Swivel
t Hose (Includes Key No. 20)
Filter Cage
Float
Dust Drum
Owners Manual
f Stock Item - May Be Secured Through The Hardware Department Of Most Sears Retail
Stores
* Standard Hardware Item - May Be Purchased Locally.
Repair Parts .......
25
5\
22
\
10
11
