Pump Exploded View And Parts List - Craftsman 580.752870 Operator's Manual

CRAFTSMAN 2700 PSI PressureWasher 580.752870

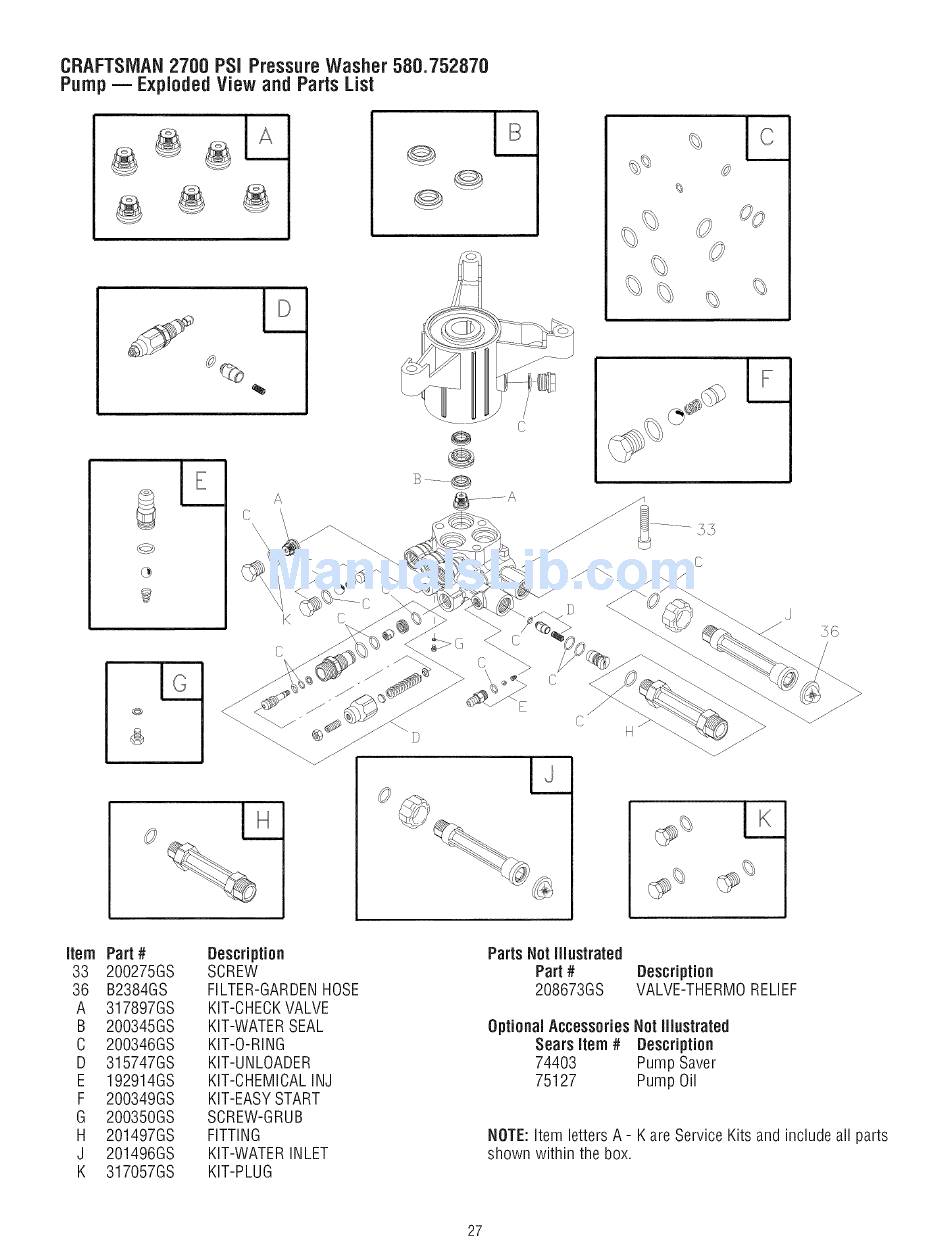

Pump = Exploded View and Parts List
L
@
L
@
A
K
C
@
®
s ...... @
........... A
c
L
c
E
C
L
L
L
L
Item
33
36
A
B
C
D
E
F
G
H
J
K
Part #
200275GS
B2384GS
317897GS
200345GS
200346GS
315747GS
192914GS
200349GS
200350GS
201497GS
201496GS
317057GS
Description
SCREW
FILTER-GARDEN HOSE
KIT-CHECKVALVE
KIT-WATERSEAL
KIT-O-RING
KIT-UNLOADER
KIT-CHEMICALINJ
KiT-EASYSTART
SCREW-GRUB
FITTING
KIT-WATERINLET
KIT-PLUG
Parts Not illustrated
Part # Description
208673GS VALVE-THERMORELIEF
0ptional Accessories Not illustrated
Sears item # Description
74403 Pump Saver
75127 Pump Oil
NOTE:item letters A - K are Service Kits and include all parts
shown within the box.
27
