All-Power Quietzone APC4406 Owner's Manual

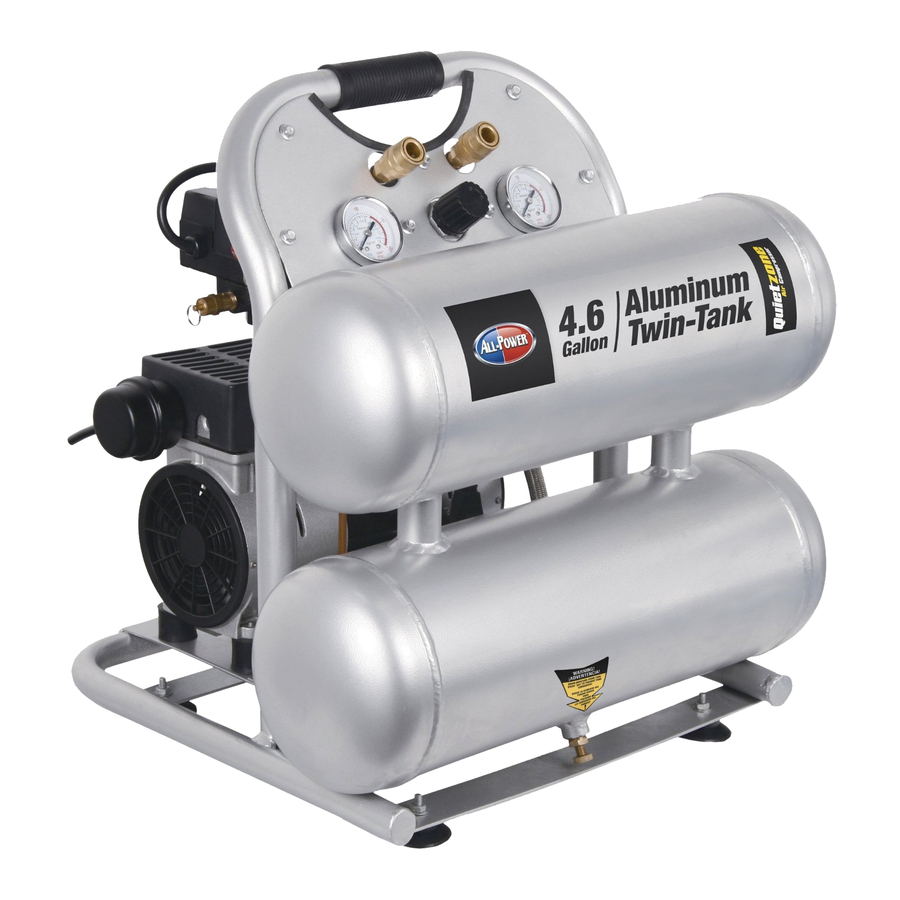

1.5 hp 4.6 gallon twin-tank air compressor
Hide thumbs Also See for Quietzone APC4406:
Table of Contents

Advertisement

Quick Links

Download this manual
Twin-Tank
Air
Camprussar
www.all

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quietzone APC4406 and is the answer not in the manual?

Questions and answers

Related Manuals for All-Power Quietzone APC4406

Summary of Contents for All-Power Quietzone APC4406

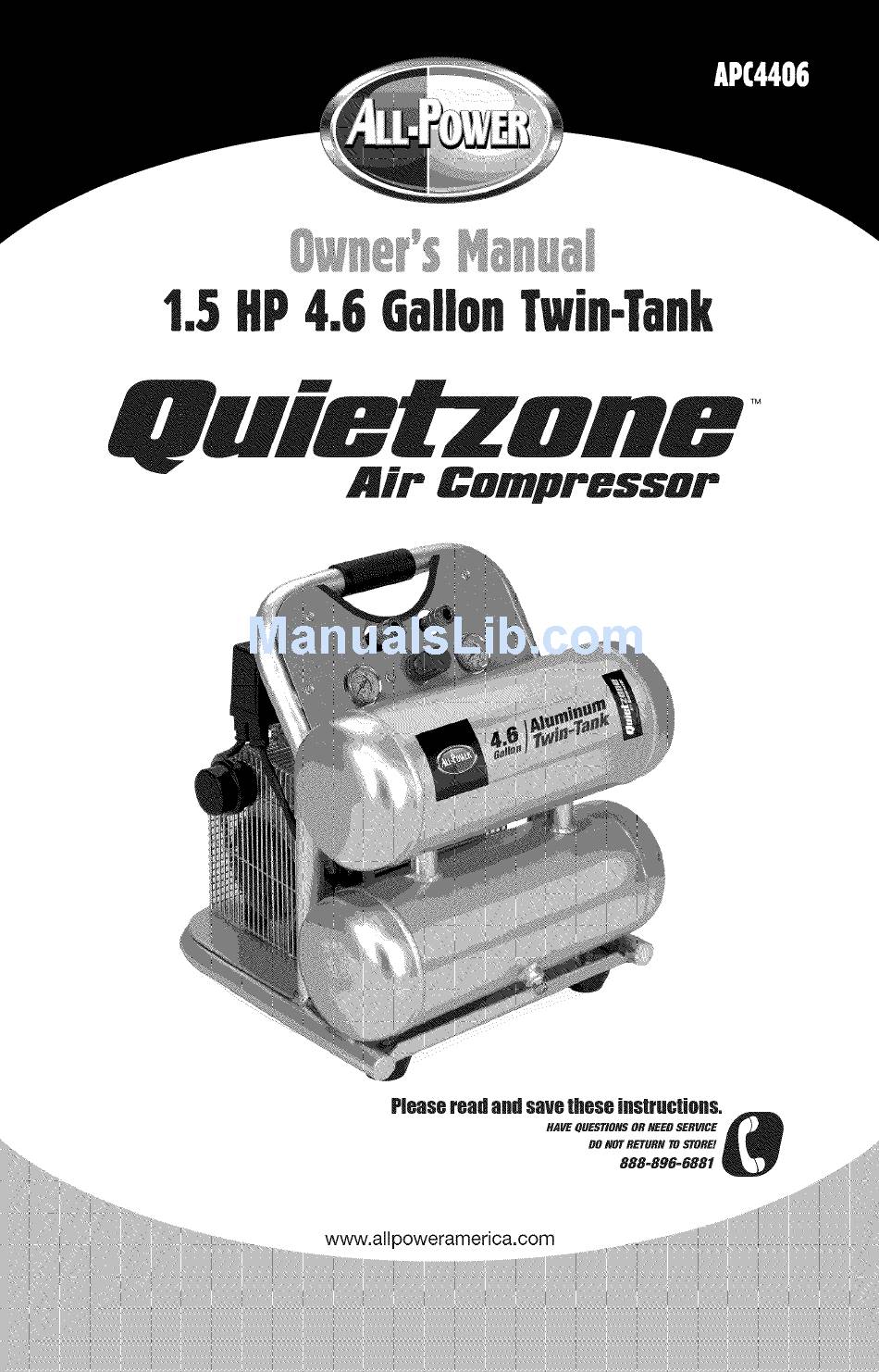

  • Page 1 Twin-Tank Camprussar www.all...

  • Page 2: Table Of Contents

    Air Compressor Table of Contents Page Topic Safety Guidelines-Definitions Hazard Warnings Air Compressor Precautions Basic Air Compressor Components Assembling the Air Compressor Compressor Controls Electrical Power Requirements Breaking In The Pump Operating Instructions Maintenance Storage Service Troubleshooting Glossary Terms Exploded View Limited Warranty...
  • Page 3 Air Compressor Warning! Read And Understand All Safety Precautions This Manual Before Operating. Failure To Comply With Instructions In This Manual Could Result In Personal Injury, Property Damage, And / Or Voiding Of Your Warranty. All-Power Will Not Be Liable For Any Damage Because Of Failure To Follow These Instructions.

  • Page 4: Safety Guidelines-Definitions

    Air Compressor SAFETY GUIDELINES-DEFINITIONS This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections.

  • Page 5: Hazard Warnings

    Owner's Manual Hazard Warnings Dust WARNING! DUST FROM POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES CONTAIN CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. These chemicals may include (but are not limited to) the following: •...
  • Page 6 Owner's Manual Hazard Warnings (cont'd) RISK OF EYE OR HEAD INJURY What could happen: • Air powered equipment and power tools are capable of propelling materials such as fasteners, metal chips, saw dust, and other debris at high speed which could result in serious eye injury.
  • Page 7 Owner's Manual Hazard Warnings (cont'd) RISK OF FIRE OR EXPLOSION What could happen: • Abrasive tools such as sanders and grinders; rotating tools such as drills and impact tools such as nailers, staples, wrenches, hammers and reciprocating saws are capable of generating sparks which could result in ignition of flammable materials. •...
  • Page 8 Owner's Manual Hazard Warnings (cont'd) RISK OF HEARING LOSS What could happen: • Long term exposure to noise produced from the operation of air tools can lead to permanent hearing loss. How to prevent: • Always wear ANSI $3.19 hearing protection when using a compressor. RISK TO BREATHING/INHALATION HAZARD What could happen:...
  • Page 9 Owner's Manual Hazard Warnings (cont'd) RISK OF INJURY What could happen: • Tools left unattended or with the air hose attached can be activated by unauthorized persons leading to their injury and/or injury to others. • Air tools can propel fasteners or other materials throughout the work area. •...
  • Page 10 Owner's Manual Hazard Warnings (cont'd) RISK OF INJURY (cont'd) How to prevent • Remove air hose when tool is not in use and store tool in secure location away from reach of children and/or untrained users. • Use only parts, fasteners and accessories recommended by the manufacturer. •...
  • Page 11 Owner's Manual Hazard Warnings (cont'd) RISK OF INJURY (cont'd) • Use only impact grade sockets on an impact wrench. • Do not apply excessive force to the tool. Let the tool perform the work. • Never point discharge of tool at self or others. •...
  • Page 12 Owner's Manual Hazard Warnings (cont'd) RISK OF ELECTRIC SHOCK What could happen: • Using air tools to attach electrical wiring can result in electrocution or death. • Improper electrical connections can result in fires, electrocution, or death. • If the tool is not provided with an insulated gripping surface, contact with a "live" wire makes exposed metal tool parts "live", resulting in possible electrocution or death.
  • Page 13 Owner's Manual Hazard Warnings (cont'd) RISK OF ENTANGLEMENT What could happen: • Tools containing moving elements or driving other moving tools (grinding wheels, sockets, sanding discs, etc.) can become entangled in hair, clothing, jewelry and other loose objects, resulting in injury. How to prevent it: •...
  • Page 14 Owner's Manual Hazard Warnings (cont'd) RISK OF CUT OR BURNS What could happen: • Tools which cut, shear, drill, staple, punch, chisel, etc. are capable of causing serious injury. • The pump and manifold generate high temperatures. How to prevent it: •...

  • Page 15: Precautions

    Owner's Manual Compressor Specifications Model Number APC4406 Horse Power Tank Capacity Gallons/Liters 4.6 Gallon Voltage/Amps/Phase 120/2.6/1 Kick-In Pressure Kick-Out Pressure WARNING! The power cord on this product contains lead, a chemical, known to the state of California to cause cancer and birth defects or other reproductive harm, Wash hands after handling...

  • Page 16: Basic Air Compressor Components

    Owner's Manual Compressor (cont'd) Basic Air Compressor Components Oil-less aircompressor are factory lubricated for life and do not require any oil. The basic components of the air compressor the electric motor, A&B pump, pressure switch, and tank. The electric motor (see A) powers the pump.
  • Page 17 Owner's Manual Compressor (cont'd) Assembling the Air Compressor Unpack the air compressor. Inspect the unit for damage. If the unit has been damaged in transit, contact the carrier and complete a damage claim. Do this immediatly because there are time limitations to damage claims. The carton should contain. •...

  • Page 18: Compressor Controls

    Owner's Manual Compressor (cont'd) COMPRESSOR CONTROLS Power switch: This switch turns the compressor power ON and OFF. Pressure Relieve Valve: If the pressure switch does not shut down the motor when pressure reaches the preset level, this valve will pop open automatically to prevent over pressurization.

  • Page 19: Electrical Power Requirements

    Owner's Manual Compressor (cont'd) Electrical Power Requirements Electrical Wiring Refer to the air compressor's serial label for the unit's voltage and amperage requirements. Use a dedicated circuit. For best performance and reliable starting, the air compressor must be plugged into a dedicated circuit, as close as possible to the fuse box or circuit breaker.
  • Page 20 Owner's Manual Compressor (cont'd) ELECTRICAL POWER REQUIREMENTS (cont'd) Extension Cord Use the chart on the right for LENGTH OF the proper extension cord length. RATING CORD IN FEET 100' 150' (120 Volts) Use only a 3-wire extension cord 10-12 that has a 3-blade grounding plug 12-14...

  • Page 21: Breaking In The Pump

    Owner's Manual Compressor (cont'd) BREAKING IN THE PUMP 1.Turn the switch to the OFF position. 2. Open the petcock. Turn counterclockwise (loosen). 3. Plug in the power switch to the ON position. 4. The compressor will start. ALLOW THE COMPRESSOR TO RUN FOR 15 MINUTES, TO BREAK IN THE INTERNAL PARTS.
  • Page 22 Owner's Manual Compressor (cont'd) OPERATING INSTRUCTIONS WARNING! HIGH TEMPERATURES ARE GENERATED BY THE ELECTRICAL MOTOR AND THE PUMP. TO PREVENT BURNS OR OTHER INJURIES, DO NOT TOUCH THE COMPRESSOR WHILE IT IS RUNNING. ALLOW IT TO COOL BEFORE HANDLING OR SERVICING. KEEP CHILDREN AWAY FROM THE COMPRESSOR AT ALL TIMES.

  • Page 23: Maintenance

    Owner's Manual Compressor (cont'd) MAINTENANCE WARNING! TO AVOID PERSONAL INJURY, ALWAYS SHUT OFF AND UNPLUG THE COMPRESSOR AND RELIEVE ALL AIR PRESSURE FROM THE SYSTEM BEFORE PERFORMING ANY SERVICE ON THE AIR COMPRESSOR.

  • Page 24: Storage

    Owner's Manual Compressor (cont'd) MAINTENANCE (cont'd) Relieve the air pressure in the system and open the petcock on the bottom of the tank to drain. WARNING! CONDENSATION WILL ACCUMULATE IN THE TANK. TO PREVENT CORROSION OF THE TANK FROM THE INSIDE, THIS MOISTURE MUST BE DRAINED AT THE END OF EVERY WORKDAY.

  • Page 25: Troubleshooting

    Owner's Manual Compressor (cont'd) TROUBLE SHOOTING Note: Trouble shooting problems may have similar causes and solutions. • Tank petcock is open Close pet cock Low pressure, not enough air or compressor does not stop. • Prolonged excessive of air Decrease amount of air used. •...
  • Page 26 Owner's Manual Compressor (cont'd) TROUBLE SHOOTING (cont'd) Excessive starting and stopping, while not in use • Fittings leak Check fittings with soapy water. Tighten or reseal leaking fittings. DO NOT OVERTIGHTEN. Replace worn parts and reassemble with new seals. Replace any regulator internal parts. •...
  • Page 27 Owner's Manual Compressor (cont'd) TROUBLE SHOOTING (cont'd) Overheating • Poor ventilation Relocate compressor to an area with cool, dry and well-circulated air. • Dirty cooling surface Clean all cooling surfaces of pump thoroughly. • Leaking valve Replace worn parts and reassemble with new seals. Motor stalls •...
  • Page 28 Owner's Manual Compressor (cont'd) TROUBLE SHOOTING (cont'd) Motor will not run (cont'd) • Fuse blown or circuit breaker tripped Replace blown fuse or reset circuit breaker. Do not use fuse or circuit breaker with higher rating than specified for your ranch circuit. Check for proper fuse;...

  • Page 29: Glossary Terms

    Owner's Manual Compressor (cont'd) TROUBLE SHOOTING (cont'd) Glossary of Terms • CFM: Cubic feet per minute; a unit of measure of air flows. • PSI: Pounds per square inch; a unit of measure of air pressure. • Kick-in pressure: Factory set low pressure point that starts the compressor to depressurize the tank to a higher pressure.

  • Page 30: Exploded View

    Owner's Manual Exploded View -'-_ b2. exhaust pipe ['_--JJ 53. panel a4bolt 5o. washer fan cowl 18. valve plate 35. pressure gatlge 50. handle 2. fan 19. air inflow valve plate 30. regulator 5?.spring 3. case 20. metal strengthen sheet 37.

  • Page 31: Limited Warranty

    Owner's Manual LIMITED WARRANTY All-Power warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 32 Owner's Manual LIMITED WARRANTY (cont'd) THIS WARRANTY DOES NOT COVER: Merchandise sold as reconditioned, used as rental equipment, or floor or display models. Merchandise that has become damaged or inoperative because of ordinary wear, misuse, cold, heat, rain, excessive humidity, freeze damage, use of improper chemicals,...
