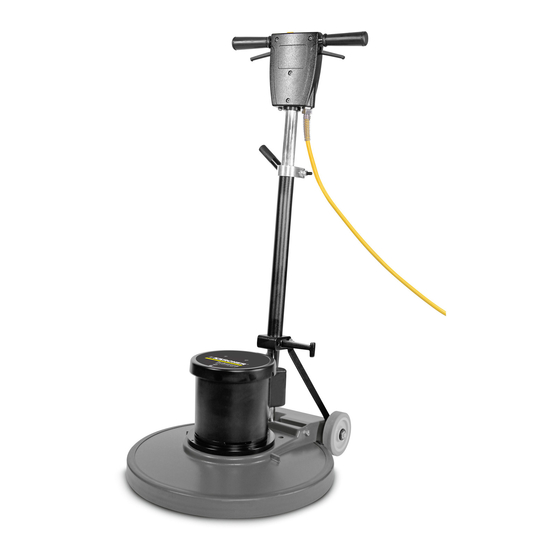

Windsor STORM SP13 Operating Instructions Manual
Floor polisher
Hide thumbs
Also See for STORM SP13:
- Operating instructions manual (35 pages) ,
- Operating instructions manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Windsor STORM SP13
Summary of Contents for Windsor STORM SP13

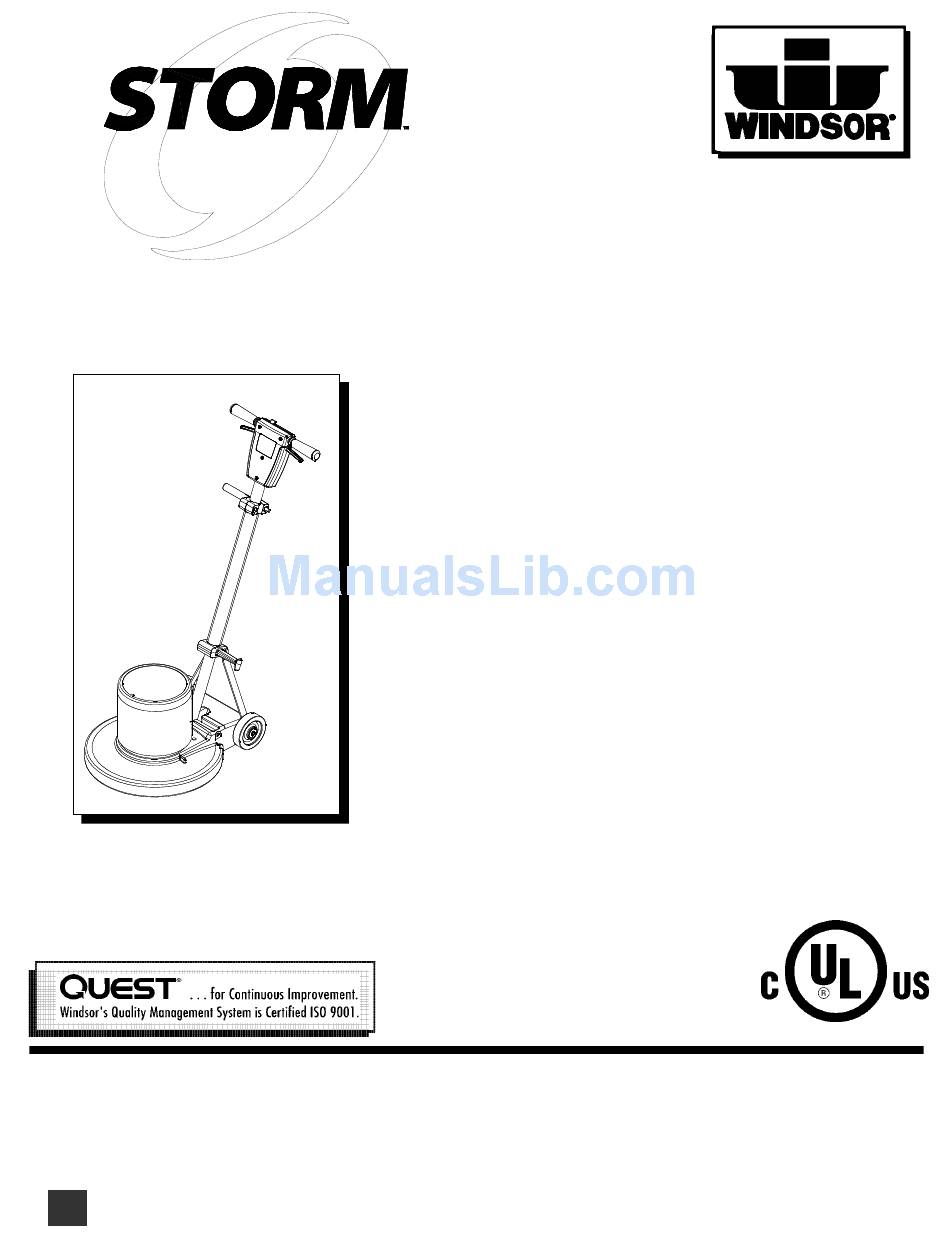

- Page 1 Operating Instructions (ENG) FLOOR POLISHER MODELS: SP13 SP17X SP15 SP20X SP17 SPDS20 SP20 Read these instructions before using the machine 980100 04/24/06...
- Page 2 MACHINE DATA LOG/OVERVIEW MODEL______________________________ DATE OF PURCHASE ________________ SERIAL NUMBER____________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ STORM POLISHER 980100 03/08/03...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview......2 Table of Contents ...........3 HOW TO USE THIS MANUAL How to use this Manual........4 SAFETY Important Safety Instructions......1-1 Hazard Intensity Level........1-2 Grounding Instructions........1-3 OPERATION / MAINTENANCE Technical Specifications ........2-1 Handle Installation..........2-2 Operation............2-3 Pad Driver Installation........2-4 Maintenance...........2-5 Service Schedule. -
Page 4: How To Use This Manual
SERIAL NO. FROM – column indicates Parts may be ordered from authorized Windsor the first machine the part number is dealers. When placing an order for parts, the applicable to. When the machine design... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. STORM POLISHER 980100 03/08/03... -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a one 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Construction Heavy-duty die cast aluminum deck with heavy-duty rubber bumper, tubular steel adjustable handle with die cast aluminum handle housing Motor SP13, SP15, SP17, SP20 1.0 hp SP17X, SP20X, SPDS20 1.5 hp Brush/Pad speed SP13, SP15, SP17, SP20, SP17X, SP20X 175 rpm SPDS20 175/300 rpm... -
Page 9: Handle Installation
HANDLE INSTALLATION WHEN INSTALLING THE HANDLE ASSEMBLY, CHECK ORIENTATION OF THE CORD ASM AND CORD HOOK. HANDLE RECEPTACLE MOTOR PLUG PIVOT DECK HOLE ASSEMBLY SEE NOTE This must be installed by qualified personnel. Read all instructions thoroughly. The machine is shipped with handle unassembled. -
Page 10: Operation
OPERATION CONTROLS 1. To adjust handle lock, tighten nut on handle while in the locked position. Optimum locking force and ease 1. Safety Lock – Prevents unintended operation of the of locking is accomplished when the locking lever machine. nut is set to a torque of 30 to 50 inch pounds in the locked position. -
Page 11: Pad Driver Installation
OPERATION DAILY MAINTENANCE CAUTION 1. Inspect power cord for wear. To prevent For indoor use only. electrical shock replace cords with frayed or cracked insulation immediately. To prevent possible damage to the floor when using the brush option, use water or other 2. Place machine in the storage position. -
Page 12: Maintenance
MAINTENANCE SCRUB BRUSHES Please refer to the following to assist in selecting the proper brush or pad for the work at hand. NOTE: All original equipment brushes are equipped UNCOATED FLOORS with “Perform Alert ”. This feature will tell the operator when it is time to replace the scrub Aggressive Grit is a nylon fiber impregnated with brushes. -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Circuit breaker tripped in Machine will not run Check and reset. building. Power switch failure. Test switch for continuity and replace if necessary. Tripped circuit breaker. Reset. Faulty power cord. Replace. Replace. CAUTION: To reduce the risk of electrical shock, unplug the machine before opening fuse Fuse in motor is blown. -
Page 14: Brush/Pad Driver Group
BRUSH/PAD DRIVER GROUP 2A-W STORM POLISHER 980100 04/24/06... - Page 15 BRUSH/PAD DRIVER GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 02216 PAD DRIVER, 13" POLISHER 02396 PAD DRIVER, 15" POLISHER 02218 PAD DRIVER, 17" POLISHER 02219 PAD DRIVER, 20" POLISHER 02232 BRUSH, 13" NYL.POL. W/CLT.PLT 02233 BRUSH, 13" NYL.SCRUB W/CLT.PLT 02234 BRUSH, 13"...
-
Page 16: Frame Group
FRAME GROUP MOTOR ASM SEE PG 3-5 STORM POLISHER 980100 03/08/03... - Page 17 FRAME GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 78447 TUBE ASSY, HANDLE ADJ 38290 HANDLE, POLISHER 57275 NUT, M10X1.5 HEX NYLOCK PLTD 51328 LINK, HANDLE ADJUST 87203 WASHER, 14MMID X 36MMOD 57276 NUT, PUSH FLAT RD .51D 89206 WHEEL, 5D X 1.25 X 13MMID GRY 87054 WASHER, M8 FLAT DIN125A PLT 70262...
-
Page 18: Motor Group
MOTOR GROUP SP13, SP15, SP17, SP20 SP17X, SP20X SPDS20 STORM POLISHER 980100 03/08/03... -
Page 19: Motor Group
MOTOR GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 27884 COVER, MOTOR 500763 LABEL, STORM MAIN 53263 MOTOR, 1 HP 115V INDUCTION SPT13/15/17/20 70702 SCR, M5 X .8 X 15MM BLK INCLUDES ITEM 4, 1, 53264 MOTOR, 1.5 HP 115V INDUCTION 12, &... -
Page 20: Handle Group
HANDLE GROUP STORM POLISHER 980100 03/09/05... - Page 21 HANDLE GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 14344 BAR, HANDLE ADJUST 140393 BLOCK, HANDLE MOUNT 36196 GRIP, POLISHER HANDLE 41363 HOUSING, POLISHER HANDLE REAR 41366 HOUSING, POLISHER HANDLE FRONT 51326 LOCK, SAFETY HANDLE 51327 LEVER, SWITCH 57274 NUT, M6 HEX FINISH 57275 NUT, M10X1.5 HEX NYLOCK PLTD 500194...
-
Page 22: Wiring Group
WIRING GROUP PRIOR TO SN * STORM POLISHER 980100 11/15/03... - Page 23 WIRING GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 20054 CLAMP, 3/8 NYLON UL/CSA 23167 CORD SET, 14/3 STO X 50' YLW 23206 CORDSET, 14/3 X 47", SJT, BLK 57069 NUT, ORG WIRE (2-5 18G/2-14G) 70801 SCR, M3.5 X 40 PHTF TYPE B WAS 70688 70689 SCR, M4.8 X 10 HHTF TYPE B...
-
Page 24: Wiring Diagram
WIRING DIAGRAM / SPARE PARTS SUGGESTED SPARE PARTS SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 87202 WASHER, BEARING (HANDLE ADJ) 73990 SPRING, EXT .5 OD X 3.5L 73993 SPRING, COMP .48 OD X .91 L 72123 SWITCH. 25A SPST 125-250V SNAP 14344 BAR, HANDLE ADJ 66334...
