Saber Cutter - Euro - 36V Standard
Walk Behind Scrubber
Operating Instructions (ENG)
MODELS:
SCE326
10052280
From Serial Number (Ref No1*)
*See Serial Number Page
in Spare Parts List
or call manufacturer.

IPX4
86400410-A
06/15/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCE326 and is the answer not in the manual?

Questions and answers

Summary of Contents for Windsor SCE326

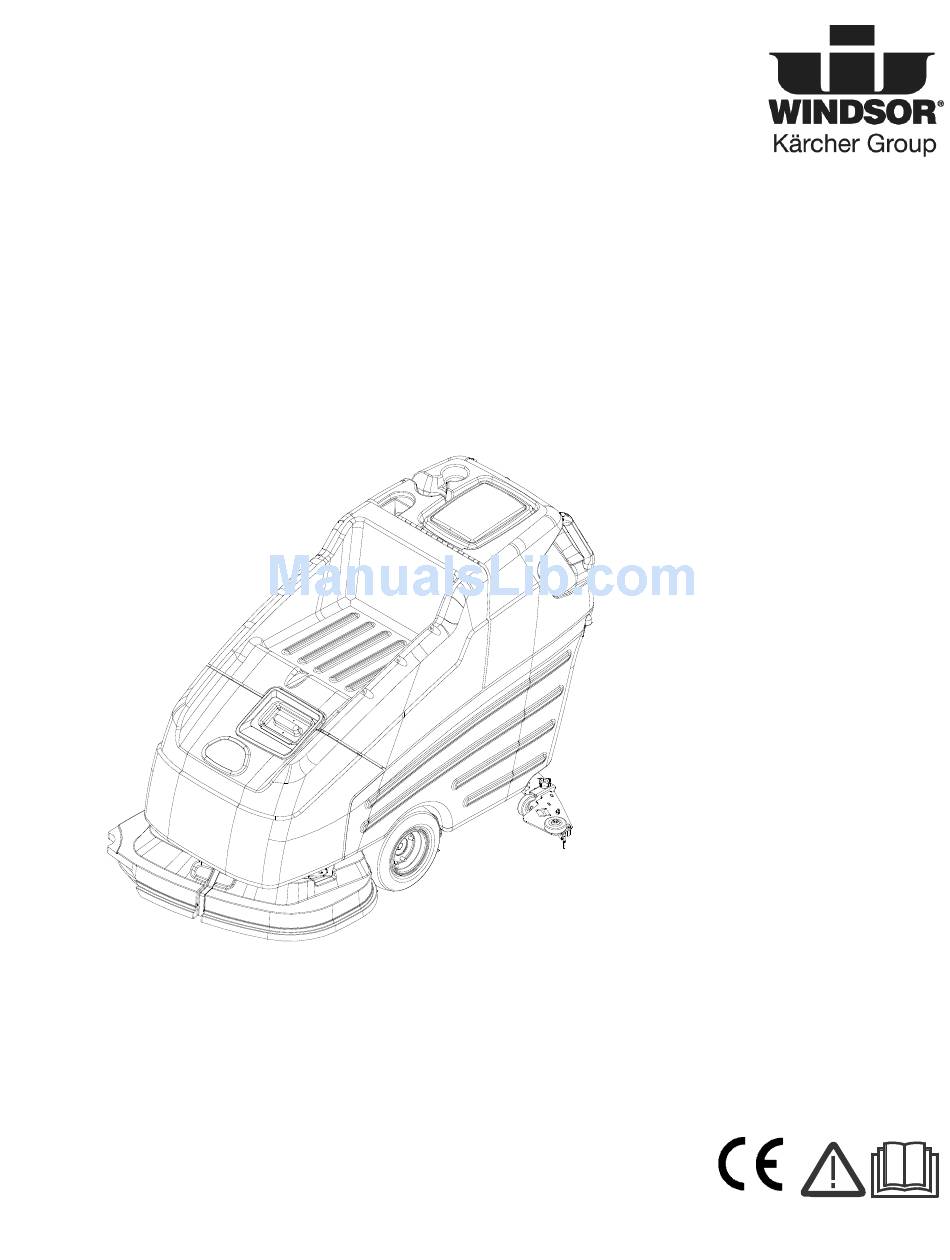

  • Page 1 Saber Cutter - Euro - 36V Standard Walk Behind Scrubber Operating Instructions (ENG) MODELS: SCE326 10052280 From Serial Number (Ref No1*) *See Serial Number Page in Spare Parts List or call manufacturer.   IPX4  86400410-A 06/15/15...
  • Page 2: Machine Data Label

    Machine Data Label Overview The Saber Cutter is a battery powered, self-propelled, hard floor scrubber intended for commercial use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor with brushes or pads, and then vacuums the soiled water back into the recovery tank.
  • Page 3: Table Of Contents

    Table of Contents Machine Data Label ......2 Overview ........2 Table of Contents .
  • Page 4: How To Use This Manual

    How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How To Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...
  • Page 5: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
  • Page 6: Hazard Intensity Level

    Safety The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
  • Page 7: Safety Labels

    Safety Safety Labels NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. SAFETY DECAL 86252530 BATTERY CAUTION 86252520 CIRCUIT BREAKER DECAL 86400220 2% GRADE WARNING 86400410 Operators Manual - Cutter Euro 36V Standard...
  • Page 8: Operations

    Operations Technical Specifications ITEM DIMENSION/CAPACITY Nominal power 2160 W Rated Voltage 36 Volt DC Rated Amperage 60 amps Batteries 6 x 6 volt 250-305-335 AH @ 20 Hr rate Scrub Brush Motors 2 x .75 hp (.56 kW) Vacuum Motor 3 Stage .75 hp (.56 kW) Propelling Motor .75 hp (.56 kW)
  • Page 9 Operations ITEM MEASURE Height 46 in (117 cm) Length with 32 in. (81 cm) scrub head 71 in (180) Width without squeegee and scrub head 28 in (71 cm) Width of squeegee for 32 in. (81 cm) scrub head 39 in (99 cm) Width of scrub path for 32 in.
  • Page 10: How The Machine Works

    Operations How The Machine Works The function of the recovery system is to vacuum the soiled water back into the recovery tank. The recovery The Saber Cutter is a battery powered, self-propelled, system consists of the squeegee, vacuum motor, float hard floor scrubber intended for commercial use.
  • Page 11: Components

    Operations Components 1. Control Panel 2. Front Cover 3. Recovery Tank 4. Recovery Tank Drain Hose 5. Scrub Head Shrouds 6. Solution Tank 7. Solution Tank Cover 8. Solution Tank Drain Hose 9. Solution Strainer 10. Squeegee 11. Aqua-Mizer™ 12. Top Cover 13.
  • Page 12: Controls

    Operations Controls 86400410 Operators Manual - Cutter Euro 36V Standard...
  • Page 13: Key Switch

    Operations 1. Key Switch 4. Propel Control Levers 2. Emergency Shut-Off Switch Controls the machine direction, and scrub brushes and solution flow. 3. Speed Control Knob To propel machine forward, squeeze either propel 4. Propel Control Lever lever. 5. Reverse Button The scrub brushes will not rotate and the solution will 6.
  • Page 14 Operations 7. Brush Pressure Lever 10. Squeegee Lift Lever Adjusts the amount of brush pressure to the floor by Raises and lowers the squeegee. raising or lowering the scrub deck. To lower the squeegee, lift the lever from its raised position.
  • Page 15: Battery Charge Level Indicator

    Operations 13. Battery Charge Level Indicator Indicates the charge level of the batteries. The meter display is divided into 10 vertical bars. Bar illuminated on the far right indicates full charge. Bars flashing near the left side indicate the batteries should be recharged.
  • Page 16: Machine Operation

    Operations Machine Operation Filling Solution Tank FOR SAFETY: Before leaving or servicing Pre-run Machine Inspection machine; stop on level surface, turn off machine and remove key. Do a pre-run inspection to find possible problems that could cause poor performance or lost time from break- 1.
  • Page 17: Normal Scrubbing

    Operations Normal Scrubbing To Begin Scrubbing Plan the scrubbing pattern in advance. The longest track is around the perimeter of the area to be cleaned. When operating the machine around people, pay For efficient operation, the runs should be the longest close attention for unexpected movement.
  • Page 18: Emptying And Cleaning Tanks

    Operations Double Scrub Recovery Tank For floors which are heavily soiled or have thick accu- 1. Unhook the large drain hose from the retainer. mulations of floor finish may not clean sufficiently with Unscrew the T-handle on plug enough to loosen one pass.
  • Page 19: Maintenance

    Maintenance MAINTENANCE DAILY WEEKLY MONTHLY Check batteries after charging; add water if necessary Check pad wear to prevent buildup of chemicals Check linkages and connectors for wear and damage Check hoses for wear, blockages, or damage Clean squeegee; check for adjustment; inspect for wear Check handles, switches, knobs, domes, and gaskets for damage...
  • Page 20 Maintenance 1. Batteries 2. Squeegee 3. Aqua Mizer 4. Scrub Brushes 5. Recovery Tank Float Shut-Off 6. Solution Strainer 7. Brush Motor 8. Traction Motor 9. Circuit Breakers 10. Brush Shroud & Brush Skirts 11. Vacuum Motor 86400410 Operators Manual - Cutter Euro 36V Standard...
  • Page 21: Batteries

    Maintenance Batteries The batteries provide the power to operate the When servicing machine, avoid contact with machine. The batteries require regular maintenance to battery acid. keep them operating at peak efficiency. The machine batteries will hold their charge for long periods of time, but they can only be charged a certain Batteries emit hydrogen gas.
  • Page 22: To Charge The Batteries

    Maintenance To Charge The Batteries Checking Battery Specific Gravity Use a hydrometer to check the battery specific gravity. When servicing machine, avoid contact with battery acid. Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep covers open when charging.
  • Page 23: Changing Batteries

    Maintenance 5. Replace the battery caps, and leave them in place Changing Batteries while charging. Stop the machine in a clean area next to the charger. 6. Unplug the battery connector from the machine. Turn off machine. FOR SAFETY: When charging, connect the FOR SAFETY: Before leaving or servicing the charger to the batteries before connecting the machine;...
  • Page 24: Squeegee Blades

    Maintenance Squeegee Blades To Remove Squeegee Assembly The front squeegee blade allows solution to pass 1. With the squeegee in the up position, turn key through channels in the blade into the squeegee switch “OFF”. assembly while maintaining vacuum to provide lift. The 2.
  • Page 25: To Adjust Squeegee Pitch

    Maintenance To Adjust Squeegee Pitch To Adjust Amount Of Rear Squeegee Deflection 1. Choose a smooth, level surface. Turn “ON” the key switch. Lower the squeegee and drive forward at 1. Choose a smooth, level surface. Lower the least 2 feet (60cm.). squeegee and drive forward at least 2 feet (60cm).
  • Page 26: Scrub Brushes

    Maintenance Scrub Brushes Replacing Or Installing Scrub Brushes There are four different types of brushes available to 1. With the scrub deck up, turn “OFF” the machine. cover applications from cleaning heavily soiled floors to FOR SAFETY: Before leaving or servicing the polishing.
  • Page 27: Solution Strainer

    Maintenance Solution Strainer 7. With end cap in partially installed position, release all brushes to contact position with motor commu- The solution strainer is located in front of the left front tator. wheel. The solution strainer protects the solenoid valve NOTE: Failure to insure all brushes are released will from debris.
  • Page 28: Traction Motor

    Maintenance Traction Motor Circuit Breakers Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is Do not use a pressure washer to clean around the tripped, reset it by pressing the exposed button. If a motors.
  • Page 29: Vacuum Motor

    Maintenance Vacuum Motor Vacuum Motor Carbon Brushes Replacement End Cap Do not use a pressure washer to clean around the vacuum motors. Use tap pressure only. Care must Carbon be taken so that water is not directed into vacuum Brushes motor air intakes.
  • Page 30: Machine Troubleshooting

    Machine Troubleshooting PROBLEM CAUSE SOLUTION Squeegee out of adjustment Adjust squeegee Debris caught on squeegee Remove debris Worn squeegee blades Rotate or replace squeegee blades Vacuum hose clogged Clear obstruction from hose Vacuum hose disconnected from Reconnect vacuum hose squeegee or recovery tank Poor or no water pick-up Vacuum hose damaged Replace vacuum hose...
  • Page 31 Maintenance PROBLEM CAUSE SOLUTION Solution tank empty Fill solution tank Solution flow turned off or set too Turn on or increase flow setting Solution strainer plugged Clean solution strainer Little or no solution flow to the floor Solution hoses obstructed Clear obstruction from hose Solution solenoid valve obstructed Clean or replace...
  • Page 32: Suggested Spare Parts

    Suggested Spare Parts 86326980 BRUSH SET VACUUM 86282050 SOLUTION HOSE 86001360 BRUSH SET 86004180 RECOVERY HOSE SCRUB DECK MOTOR 86004260 DRAIN HOSE 86007490 SQUEEGEE REAR BLADE LINATEX 86137040 SQUEEGEE 86001360 BRUSH SET REAR BLADE URETHANE AXLE MOTOR 86009830 SQUEEGEE FRONT BLADE LINATEX 86007530 SKIRT 32IN LEFT 86137050 SQUEEGEE 86007540 SKIRT 32IN RIGHT...
  • Page 33 Notes 86400410 Operators Manual - Cutter Euro 36V Standard...
