Summary of Contents for Windsor 10090240

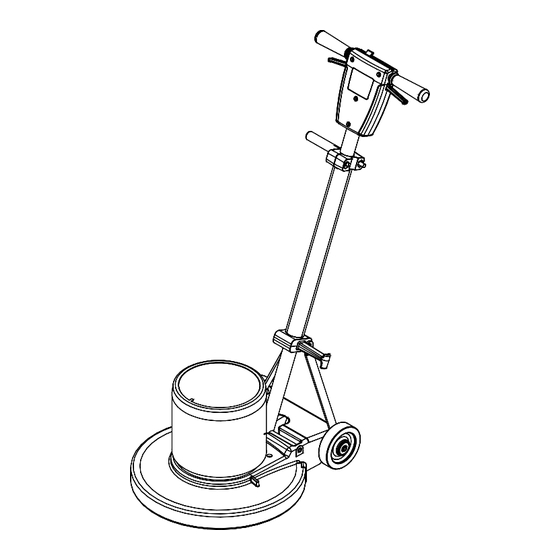

- Page 1 Operating Instructions (ENG) FLOOR POLISHER MODELS: SP13 SP17X 10090220 10090280 SP15 SP20X 10090230 10090320 SP17 SPDS20 10090240 10090350 SP20 10090310 Read these instructions before using the machine 86221940 12/29/06 PRV NO. 980100...
- Page 2 MACHINE DATA LOG/OVERVIEW MODEL______________________________ DATE OF PURCHASE ________________ SERIAL NUMBER____________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ STORM POLISHER 86221940 12/29/06...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview......2 Table of Contents..........3 HOW TO USE THIS MANUAL How to use this Manual.........4 SAFETY Important Safety Instructions ......1-1 Hazard Intensity Level........1-2 Grounding Instructions........1-3 OPERATION / MAINTENANCE Technical Specifications .......2-1 Handle Installation ........2-2 Operation ............2-3 Pad Driver Installation........2-4 Maintenance ..........2-5 Service Schedule. -
Page 4: How To Use This Manual
DESCRIPTION – column is a brief Parts may be ordered from authorized Windsor description of the part. dealers. When placing an order for parts, the SERIAL NO. FROM – column... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. STORM POLISHER 86221940 12/29/06... -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a one 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Construction Heavy-duty die cast aluminum deck with heavy-duty rubber bumper, tubular steel adjustable handle with die cast aluminum handle housing Motor SP13, SP15, SP17, SP20 1.0 hp SP17X, SP20X, SPDS20 1.5 hp Brush/Pad speed SP13, SP15, SP17, SP20, SP17X, SP20X 175 rpm SPDS20 175/300 rpm... -
Page 9: Handle Installation
HANDLE INSTALLATION WHEN INSTALLING THE HANDLE ASSEMBLY, CHECK ORIENTATION OF THE CORD ASM AND CORD HOOK. HANDLE RECEPTACLE MOTOR PLUG PIVOT DECK HOLE ASSEMBLY SEE NOTE This must be installed by qualified personnel. Read all instructions thoroughly. The machine is shipped with handle unassembled. -
Page 10: Operation
OPERATION CONTROLS 1. To adjust handle lock, tighten nut on handle while 1. Safety Lock – Prevents unintended operation of in the locked position. Optimum locking force and the machine. ease of locking is accomplished when the locking lever nut is set to a torque of 30 to 50 inch pounds 2. -
Page 11: Pad Driver Installation
OPERATION CAUTION DAILY MAINTENANCE For indoor use only. 1. Inspect power cord for wear. To prevent electrical shock replace cords with frayed or To prevent possible damage to the floor when cracked insulation immediately. using the brush option, use water or other approved cleaning solution while operating. -
Page 12: Maintenance
MAINTENANCE remove less finish than brown stripping pads, yet will remove black marks, stains and dirt. SCRUB BRUSHES Brown Pads (Stripping) are used for easy and NOTE: All original equipment brushes are complete removal of old floor waxes/finishes. equipped with “Perform Alert©”. This feature will They will quickly remove ground in dirt, black heel tell the operator when it is time to replace the marks, and spills. - Page 13 TROUBLESHOOTING PROBLEM CAUSE SOLUTION Circuit breaker tripped in Machine will not run Check and reset. building. Power switch failure. Test switch for continuity and replace if necessary. Tripped circuit breaker. Reset. Faulty power cord. Replace. Replace. CAUTION: To reduce the risk of electrical shock, unplug the machine before opening fuse Fuse in motor is blown.
-
Page 14: Brush/Pad Driver Group
BRUSH/PAD DRIVER GROUP 2A-W STORM POLISHER 86221940 12/29/06... - Page 15 BRUSH/PAD DRIVER GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86284280 02216 PAD DRIVER, 13" POLISHER 86284330 02396 PAD DRIVER, 15" POLISHER 86000120 02218 PAD DRIVER, 17" POLISHER 86284300 02219 PAD DRIVER, 20" POLISHER 86283720 02232 BRUSH, 13" NYL.POL. W/CLT.PLT 86283730 02233 BRUSH, 13"...
-
Page 16: Frame Group
FRAME GROUP MOTOR ASM SEE PG 3-5 STORM POLISHER 86221910 12/29/06... - Page 17 FRAME GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86225380 78447 TUBE ASSY, HANDLE ADJ 86218440 38290 HANDLE, POLISHER 86136360 57275 NUT, M10X1.5 HEX NYLOCK PLTD 86221860 51328 LINK, HANDLE ADJUST 86225720 87203 WASHER, 14MMID X 36MMOD 86222270 57276 NUT, PUSH FLAT RD .51D 86226020...
-
Page 18: Motor Group
MOTOR GROUP SP17X, SP20X SP13, SP15, SP17, SP20 10090280, 10090320 10090220, 10090230, 10090240, 10090310 SPDS20 10090350 STORM POLISHER 86221940 12/29/06... - Page 19 MOTOR GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86217490 27884 COVER, MOTOR 86220020 500763 LABEL, STORM MAIN 86222090 53263 MOTOR, 1 HP 115V INDUCTION SPT13/15/17/20 86223690 70702 SCR, M5 X .8 X 15MM BLK INCLUDES ITEM 86222100 53264 MOTOR, 1.5 HP 115V INDUCTION 4, 1, 12, &...
-
Page 20: Handle Group
HANDLE GROUP STORM POLISHER 86221940 12/29/06... - Page 21 HANDLE GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86215130 14344 BAR, HANDLE ADJUST 86215380 140393 BLOCK, HANDLE MOUNT 86004070 36196 GRIP, POLISHER HANDLE HOUSING, POLISHER HANDLE 86219320 41363 REAR HOUSING, POLISHER HANDLE 86219330 41366 FRONT 86005150 51326 LOCK, SAFETY HANDLE 86005160 51327...
-
Page 22: Wiring Group
WIRING GROUP PRIOR TO SN * STORM POLISHER 86221940 12/29/06... - Page 23 WIRING GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86233170 20054 CLAMP, 3/8 NYLON UL/CSA 86234150 23167 CORD SET, 14/3 STO X 50' YLW 86216920 23206 CORDSET, 14/3 X 52”SJT, BLK 86247920 57069 NUT, ORG WIRE (2-5 18G/2-14G) 10020019 86136780 70801...
-
Page 24: Wiring Diagram
WIRING DIAGRAM / SPARE PARTS SUGGESTED SPARE PARTS SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86225710 87202 WASHER, BEARING (HANDLE ADJ) 86224740 73990 SPRING, EXT .5 OD X 3.5L 86224750 73993 SPRING, COMP .48 OD X .91 L 86007110 72123 SWITCH.
