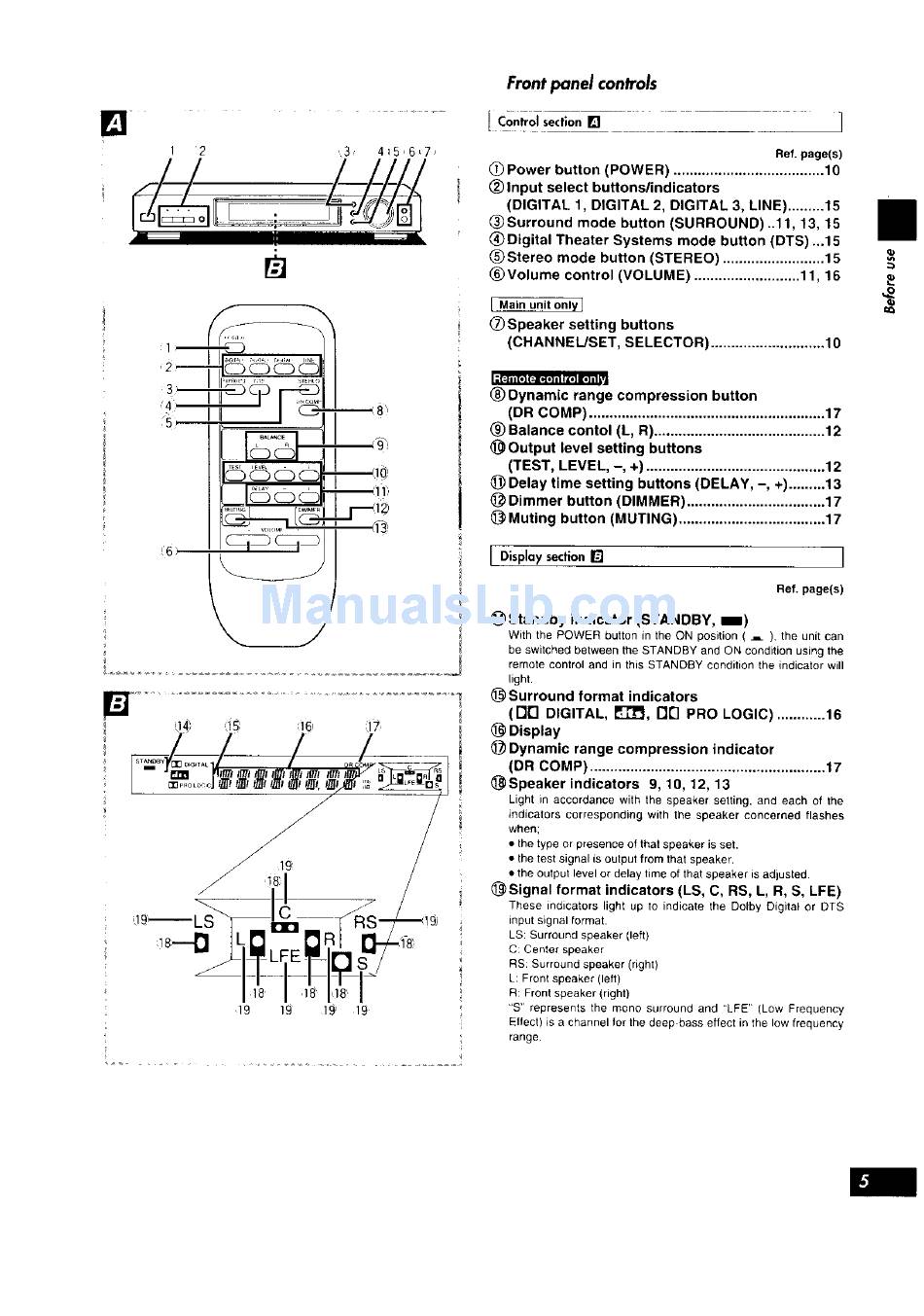

Front panel controls
l Con_ol section[] "
Ret. page(s)
(_) Power button (POWER) ..................................... 10
(_)lnput select buttons/indicators
(DIGITAL 1, DIGITAL 2, DIGITAL 3, LINE) ......... 15
(_)Surround mode button (SURROUND)..11, 13, 15
Digital Theater Systems mode button (DTS)...15
_) Stereo mode button (STEREO) ......................... t 5
(_Volume control (VOLUME) .......................... 11, 16
I Main unit only I
(_ Speaker setting buttons
(CHANNEL/SET, SELECTOR) ............................ 10
_) Dynamic range compression button
(DR COMP) .......................................................... 17
_) Balance contol (L, R) .......................................... 12
Output level setting buttons
(TEST, LEVEL, -, +) ............................................ 12
@ Delay time setting buttons (DELAY, -, +) ......... 13
@ Dimmer button (DIMMER) .................................. 17
Muting button (MUTING) .................................... 17
I Displaysection[] I
Ref. page(s)
_) Standby indicator (STANDBY, I)
With the POWER button in the ON position ( _,_ ), the unit can
be switched between the STANDBY and ON condition using the
remote control and in this STANDBY condition the indicator will
light.
(_ Surround format indicators
(l'lrl DIGITAL, P'Z_q, liE] PRO LOGIC) ............ 16
(_ Display
Dynamic range compression indicator
(DR COMP) .......................................................... 17
_Speaker indicators 9, 10, 12, 13
Light in accordance with the speaker setting, and each of the
indicators corresponding with the speaker concerned flashes
when;
• the type or presence of that speaker is set,
• the test signal is output from that speaker,
• the output level or delay time of that speaker is adjusted
_Signal format indicators (LS, C, RS, L, R, S, LFE)
These indicators light up to indicate the Dolby Digital or DTS
input signal format.
LS Surround speaker (left)
C: Center speaker
RS: Surround speaker (right)
L: Front speaker (left)
R: Front speaker (right)
"S' represents the mend surround and "LFE" (Low Frequency
Effect) is a channel for the deep bass effect in the low frequency
range
