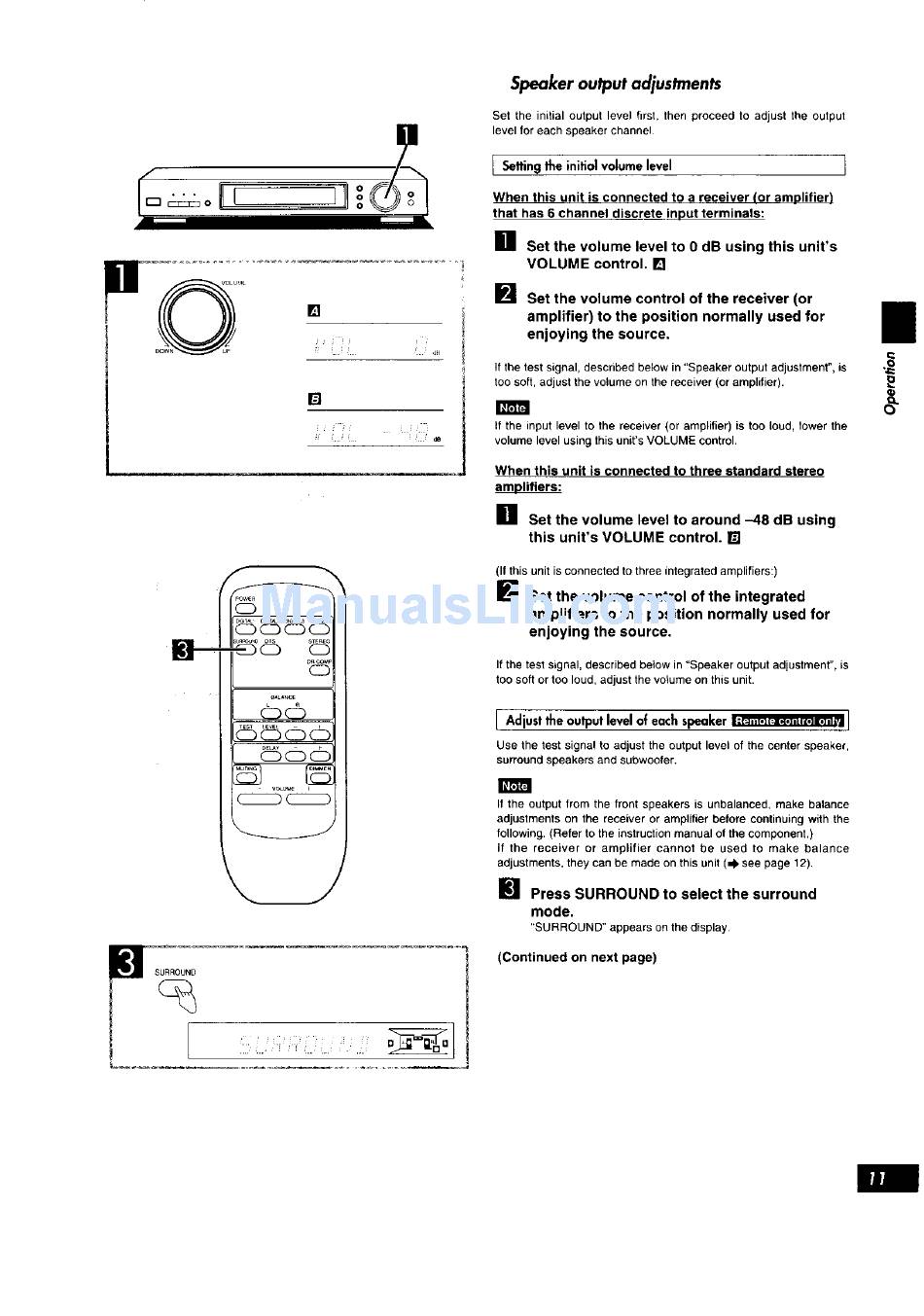

Technics SH-AC500D Operating Instructions Manual page 11

Speaker output adjustments
Set the indial output level first, then proceed to adjust the output
level for each speaker channel
Setting the initial volume level ]
When this unit is connected to a receiver {or amplifier)
that has 6 channel discrete inout terminals:
[] Set the volume level to 0 dB using this unit's
VOLUME control. []
IE_ Set the volume control of the receiver (or
amplifier) to the position normally used for
enjoying the source.
If the test signal, described below in "Speaker output adjustment", is
too soft, adjust the volume on the receiver (or amplifier).
If the input level to the receiver (or amplifier) is too loud, lower the
volume level using this unit's VOLUME control.
When this unit is connected to three standard stereo
arnDlifiers:
] Set the volume level to around -48 dB using
this unit's VOLUME control. []
POWER
0
5556
DRCO_F
0
L_AL'_CE
QO
VOLU_
(11this unit is connected to three integrated amplifiers:)
Set the volume control of the integrated
amplifiers to the position normally used for
enjoying the source.
If the test signal, described below in "Speaker output adjustment", is
too soft or too loud, adjust the volume on this unit.
[ Adjust the output level of each speaker ==m'_r_mr_m.......... 'a ]
Use the test signal to adjust the output level of the center speaker,
surround speakers and subwoofer.
If the output from the front speakers is unbalanced, make balance
adjustments on the receiver or amplifier before continuing with the
following, (Refer to the instruction manual of the component.)
If the receiver or amplifier cannot be used to make balance
adjustments, they can be made on this unit (_ see page 12).
I_1 Press SURROUND to select the surround
mode.
"SURROUND" appears on the display
SURROUND
s _
(Continued on next page)
