POWER
o o o
©
LINE
m
OTS
STEREO

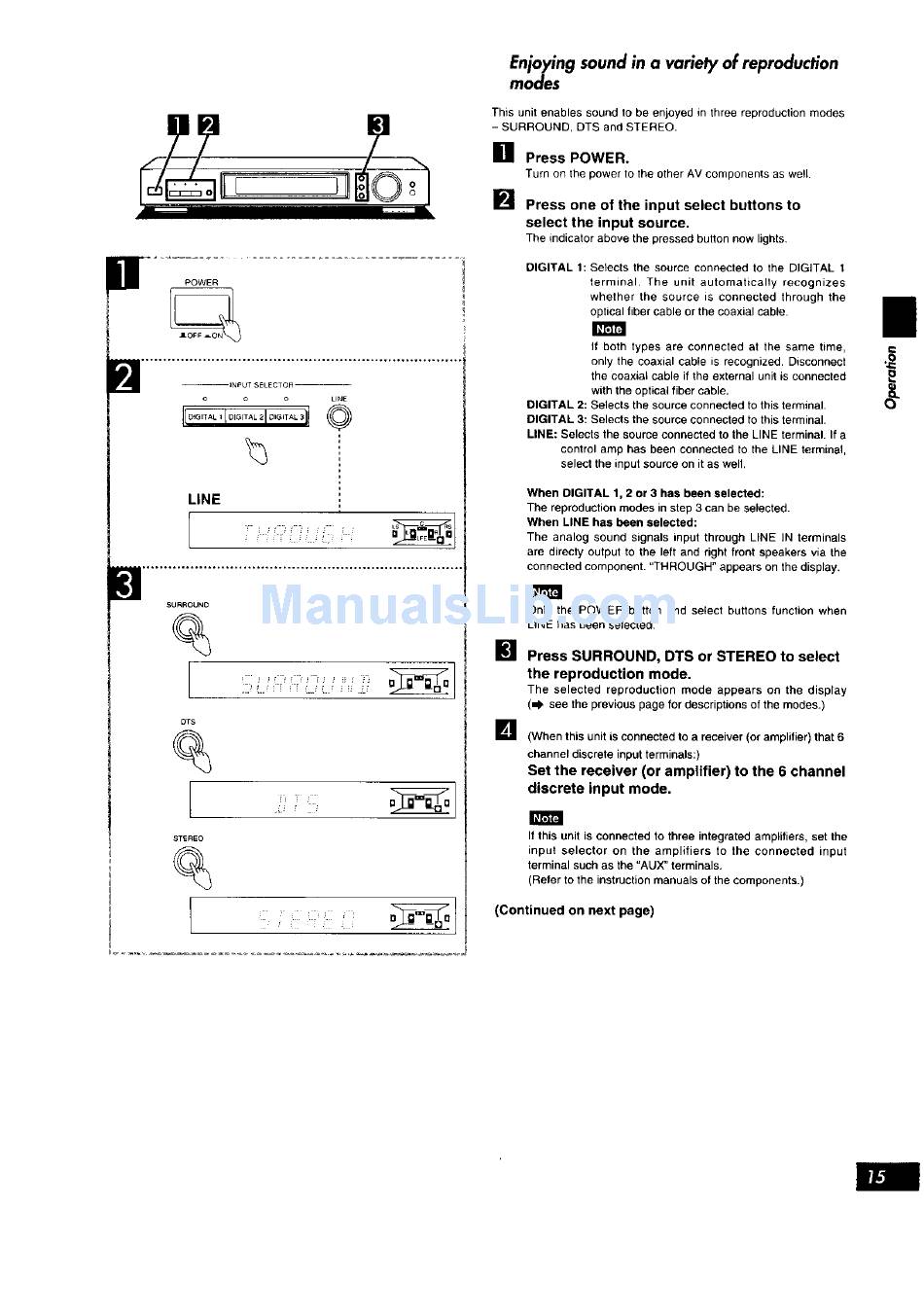

Enjoying sound in a variety of reproduction
modes
This unit enables sound to be enjoyed in three reproduction modes
- SURROUND, DTS and STEREO.
[] Press POWER.
Turn on the power to the other AV components as well.
] Press one of the input select buttons to
select the input source.
The indicator above the pressed button now lights
DIGITAL 1: Setects the source connected to the DIGITAL 1
terminal The unit automatically recognizes
whether the source is connected through the
optical fiber cable or the coaxial cable.
If both types are connected at the same time,
only the coaxial cable is recognized. Disconnect
the coaxial cable if the external unit is connected
with the optical fiber cable.
DIGITAL 2: Selects the source connected to this terminal.
DIGITAL 3: Selects the source connected to this terminal.
LINE: Selects the source connected to the LINE terminal. If a
control amp has been connected to the LINE terminal,
select the input source on it as well.
When DIGITAL 1, 2 or 3 has been selected:
The reproduction modes in step 3 can be selected.
When LINE has been selected:
The analog sound signals input through LINE IN terminals
are directy output to the left and right front speakers via the
connected component. "THROUGH" appears on the display,
Only the POWER button and select buttons function when
LINE has been selected,
[] Press SURROUND, DTS or STEREO to select
the reproduction mode.
The selected reproduction mode appears on the display
(_. see the previous page for descriptions of the modes.)
] (When this unit is connected to a receiver (or amplifier) that 6
channeldiscrete inputterminals:)
Set the receiver (or amplifier) to the 6 channel
discrete input mode.
If this unit is connected to three integrated amplifiers, set the
input selector on the amplifiers to the connected input
terminal such as the "AUX" terminals,
(Refer to the instruction manuals of the components.)
(Continued on next page)
