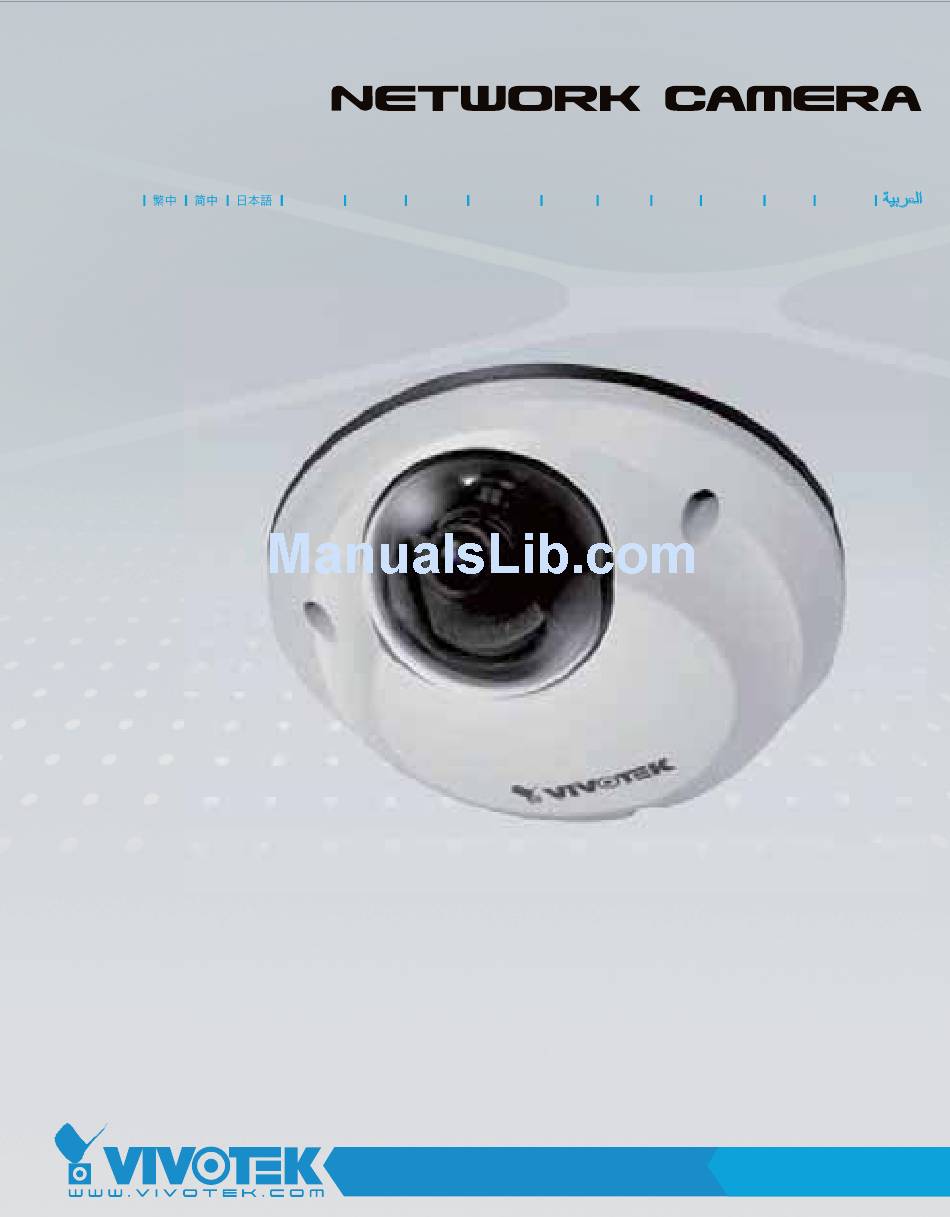

Vandal-proof . Tamper Detection . PoE

Quick Installation Guide

Türkçe
English
Français
Español
Deutsch
Português
Italiano
Polski
Русский
Česky
Svenska
FD7130
This guide describes the basic functions of FD7130
All detailed information is described in the user's manual.
IP Sur veillance

Advertisement

Table of Contents
loading

Summary of Contents for Vivotek FD7130

  • Page 1: Quick Installation Guide

    Vandal-proof . Tamper Detection . PoE Quick Installation Guide Türkçe English Français Español Deutsch Português Italiano Polski Русский Česky Svenska FD7130 This guide describes the basic functions of FD7130 All detailed information is described in the user's manual. IP Sur veillance...
  • Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera soon as smoke or unusual odors are away from water. If the Network detected. Camera becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
  • Page 3 Do not place the Network Camera Do not touch the Network Camera on unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. EN - 2...
  • Page 4: Package Contents

    Package Contents Liquid Tight Connectors for FD7130 with an RJ45 or M12 Cable RJ45 or M12 Cable RJ45 RJ45 Software CD Alignment Sticker Quick Installation Guide / Ground Wire / Screws Warranty Card Screwdriver Silica Gel EN - 3...
  • Page 5: Physical Description

    Physical Description Inner View Screw Holes Lens MicroSD/SDHC Card Slot Temperature Alarm Status LED T h e a l a r m w i l l b e t r i g g e r e d once the temparature inside the Network Camera reaches 60°C.
  • Page 6: Cabling Assembly

    Cabling Assembly RJ45 Cable Connector RJ45 Cable Dimension (unit: mm) Components of the Waterproof Connector Sealing Nut (A) Seal (B) Screw Nut (C) Housing (D) Gasket (E) Assembling Steps Insert the housing into the Insert the seal into the housing. Prepare an Ethernet cable screw nut.
  • Page 7 M12 Cable Connector M12 Cable Dimension (unit: mm) Components of the Waterproof Connector Sealing Nut (A) Seal (B) Clamp Ring (C) Gasket (D) Plastic Nut (E) Assembling Steps Insert the gasket into the clamp Prepare an Ethernet cable Insert the seal into the clamp ring.
  • Page 8: Hardware Installation

    Hardware Installation First, use the supplied screwdriver to detach the dome cover from the camera base. Insert your MicroSD/SDHC Card if necessary. Tamper-proof Screw Dome Cover Rubber Stopper Camera Base Then, follow the steps below to install the camera to either the ceiling or the wall: 1.
  • Page 9: Wall Mount

    Wall Mount Please secure the screws tightly to avoid moisture. Installing the Ground Wire As shown in the following figure, please secure one side of the supplied ground wire to the screw hole, then route the other side of the ground wire to the ground. EN - 8...
  • Page 10: Network Deployment

    Network Deployment Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable.
  • Page 11: Assigning An Ip Address

    “Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer.
  • Page 12: Ready To Use

    Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user's manual on the software CD. Adjusting the Lens To adjust the viewing angle Adjust the lens to a desired viewing angle as the diagram shown below.
  • Page 13: Fine-Tune The Camera Focus

    Fine-tune the Camera Focus The focus of this network camera is set from 1.0m to infinity by factory default. If you want to focus on objects closer than 1.0m or the lens has lost focus, please fine tune it in the following way. 1.
  • Page 14 P/N: 625008801G Ver.1.1 Copyright 2009 VIVOTEK INC. All right reserved.
